Items to Check After Unpacking
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
For Decelerators (backlash: 3 arcminutes max.), the model number given on the nameplate does not
match the model number of the Decelerator. Therefore, refer to the following table for correspondence
between the model numbers on nameplates and Decelerators.

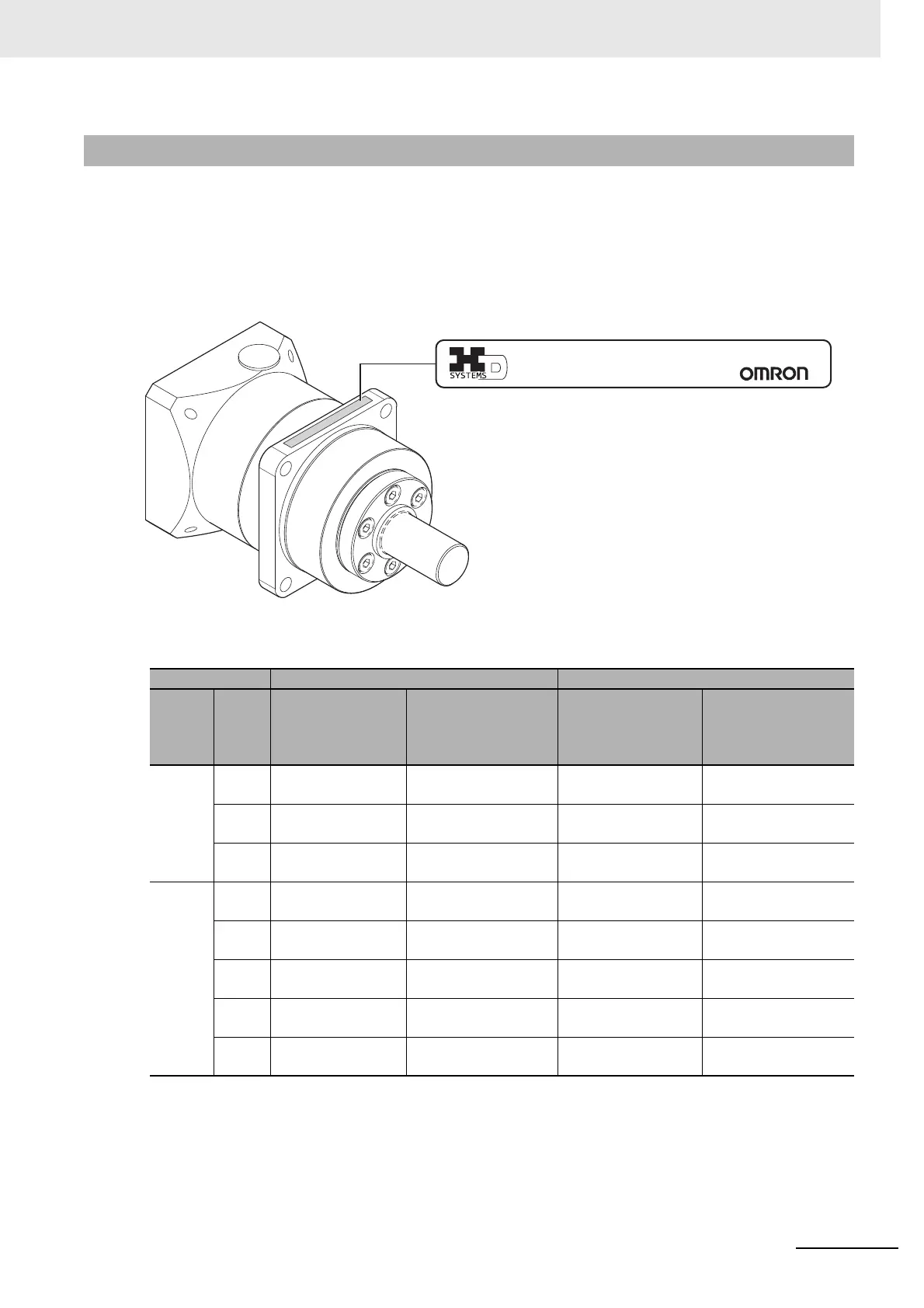

Example of nameplate: 200-W Decelerator (backlash: 3 arcminutes max., reduction ratio: 1/5) for
3,000-r/min Servomotors
 Decelerator (backlash: 3 arcminutes max.) for 3,000-r/min Servomotors
Decelerator (Backlash: 3 Arcminutes Max.)
Specifications Without key With key and tap
Servo-
motor
rated
output
Reduc-
tion
ratio
Decelerator model Model on nameplate Decelerator model Model on nameplate
50W
1/21
R88G-
HPG14A21100B
HPG-14A-21-J2ABK R88G-
HPG14A21100BJ
HPG-14A-21-J6ABK
1/33
R88G-
HPG14A33050B
HPG-14A-33-J2ABL R88G-
HPG14A33050BJ
HPG-14A-33-J6ABL
1/45
R88G-
HPG14A45050B
HPG-14A-45-J2ABL R88G-
HPG14A45050BJ
HPG-14A-45-J6ABL
100 W
1/5
R88G-
HPG11B05100B
HPG-11B-05-J2ADG R88G-
HPG11B05100BJ
HPG-11B-05-J6ADG
1/11
R88G-
HPG14A11100B
HPG-14A-11-J2ABK R88G-
HPG14A11100BJ
HPG-14A-11-J6ABK
1/21
R88G-
HPG14A21100B
HPG-14A-21-J2ABK R88G-
HPG14A21100BJ
HPG-14A-21-J6ABK
1/33
R88G-
HPG20A33100B
HPG-20A-33-J2JBLA R88G-
HPG20A33100BJ
HPG-20A-33-J6JBLA
1/45
R88G-
HPG20A45100B
HPG-20A-45-J2JBLA R88G-
HPG20A45100BJ
HPG-20A-45-J6JBLA
HPG-14A-05-J2AXT
ΧΧ-ΧΧΧΧΧΧΧ-ΧΧΧ
Upper row: Model on nameplate
Lower row: Serial No. (the OMRON logo at the end)
The model on nameplate HPG-14A-05-J2AXT
corresponds to the decelerator model HPG14A05200B.
