2 Models and External Dimensions
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-4 External and Mounting Dimensions
2
2-4-2 Servomotor Dimensions

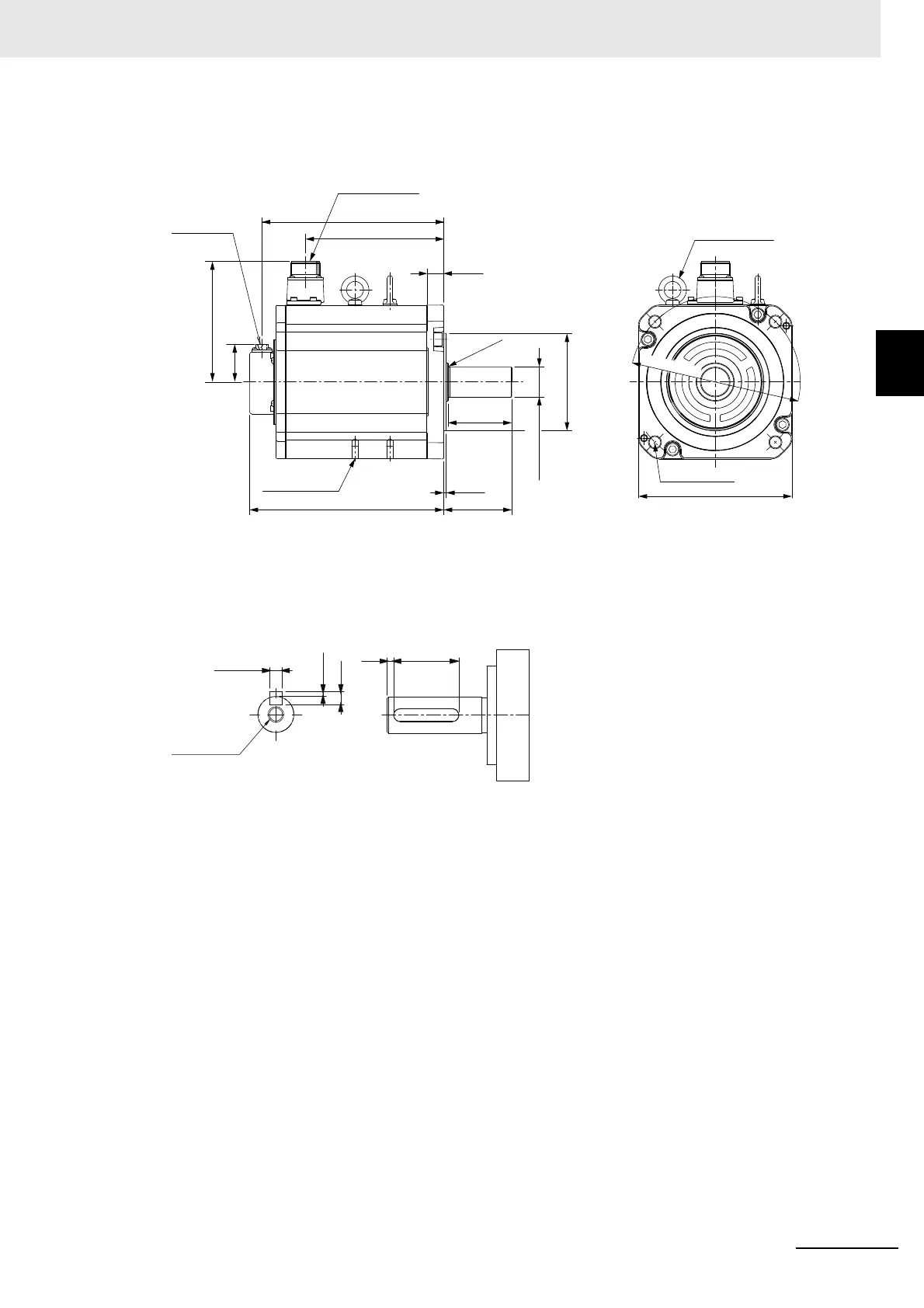

 3 kW (without Brake)
R88M-1M3K010T(-O/-S2/-OS2)
Note The standard shaft type is a straight shaft. Models with a key and tap are indicated with “S2” at the end of
the model number.
Models with an oil seal are indicated with “O” at the end of the model number.
Shaft-end with key and tap
114.3
0
-0.035 dia.
35
0
-0.016 dia.
75±0.95
80±1
162±1
213±2
228±3
180×180±2
3±0.3
19.5±1
141±2
45±2
2-M8
(for eye-bolt)
200±0.23 dia.
4-13.5±0.5 dia.
Encoder
connector
Motor connector
Eye-bolt (2-M8)
R2 max
8
10-
0.036
0
3 62
Key and tap cross section
3-
0
0.4
M12(tap)
25(tap depth)
