2 Models and External Dimensions
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-4 External and Mounting Dimensions
2

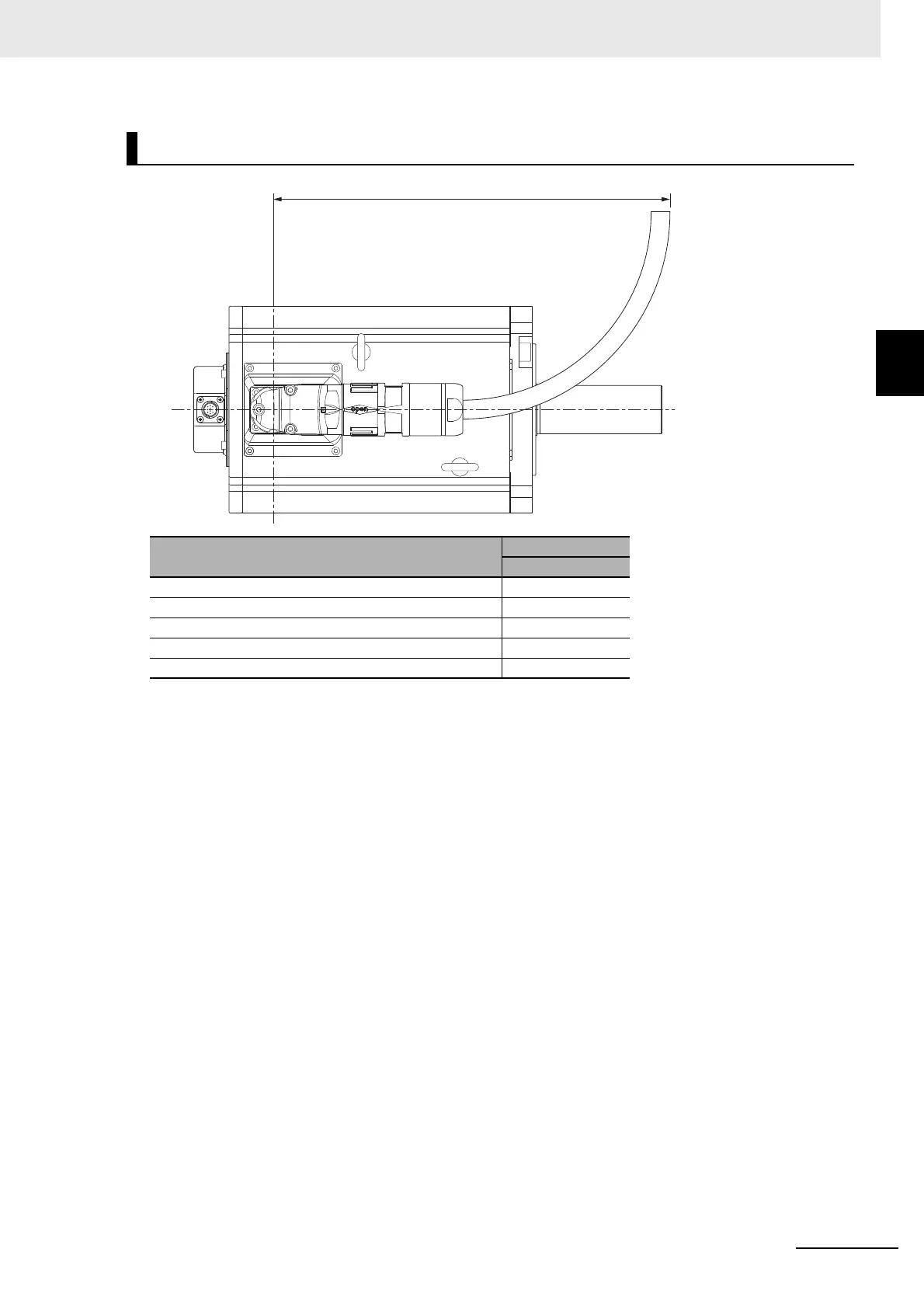

2-4-4 Cable Wiring Dimension for a Case of Motor Installing
Motor for Connector Type M40
Model
Dimension [mm]
A
R88M-1M7K515T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2) 421
R88M-1M11K015T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2) 421
R88M-1M11K015C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2) 356
R88M-1M15K015T(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2) 421
R88M-1M15K015C(-S2/-O/-OS2/-B/-BS2/-BO/-BOS2) 356
