2 Models and External Dimensions
2 - 118
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

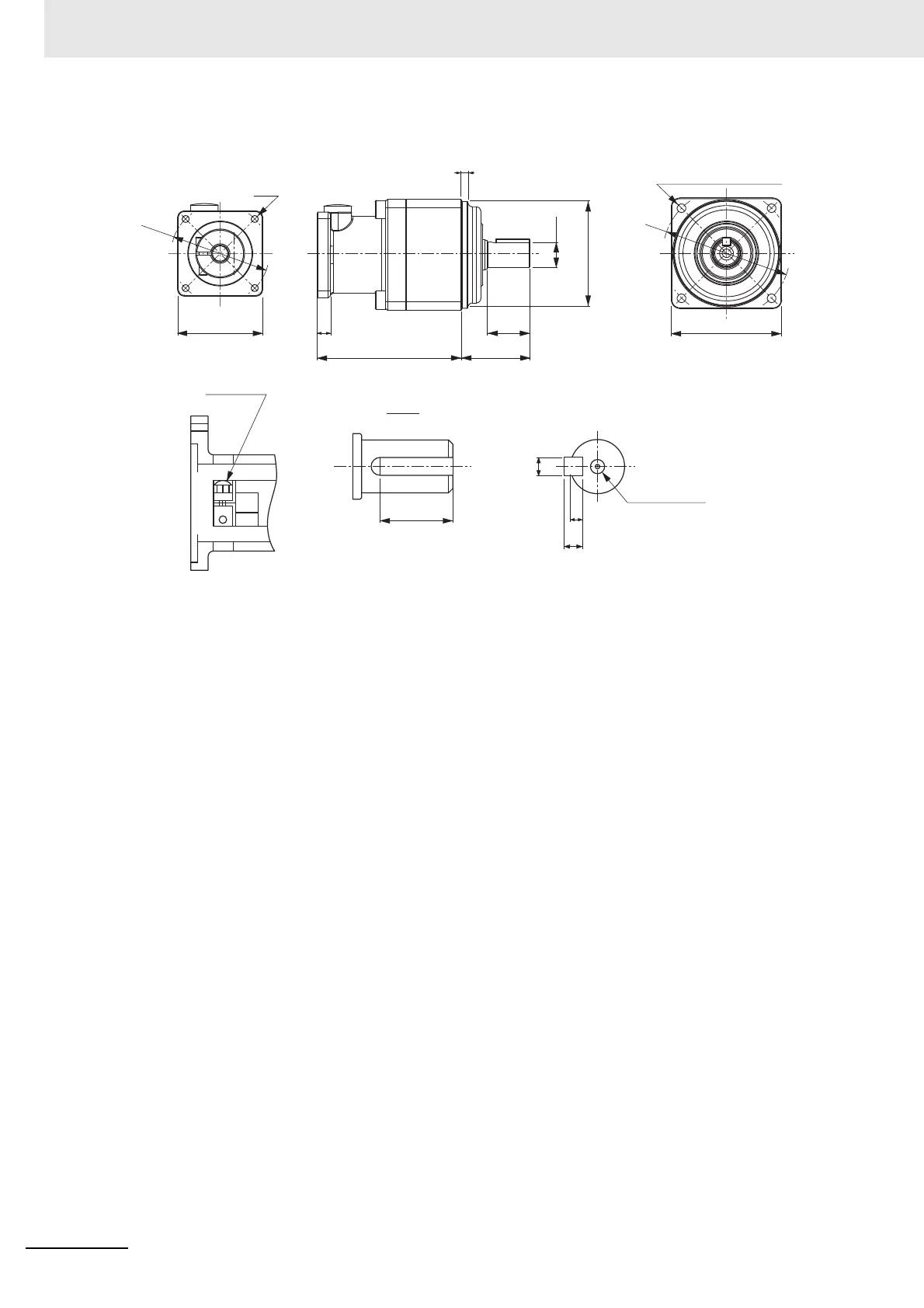

 Outline Drawing
D1 dia.
4-Z1
D3h7 dia.
Sh6 dia.
4-Z2 (Available depth L)
D2 dia.
F
GT
LRLM
C1×C1
C2×C2
m (Depth l)
QK
h
t1
b
Set bolt (AT)
Key
