3 Specifications
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
3-1 Servo Drive Specifications
3

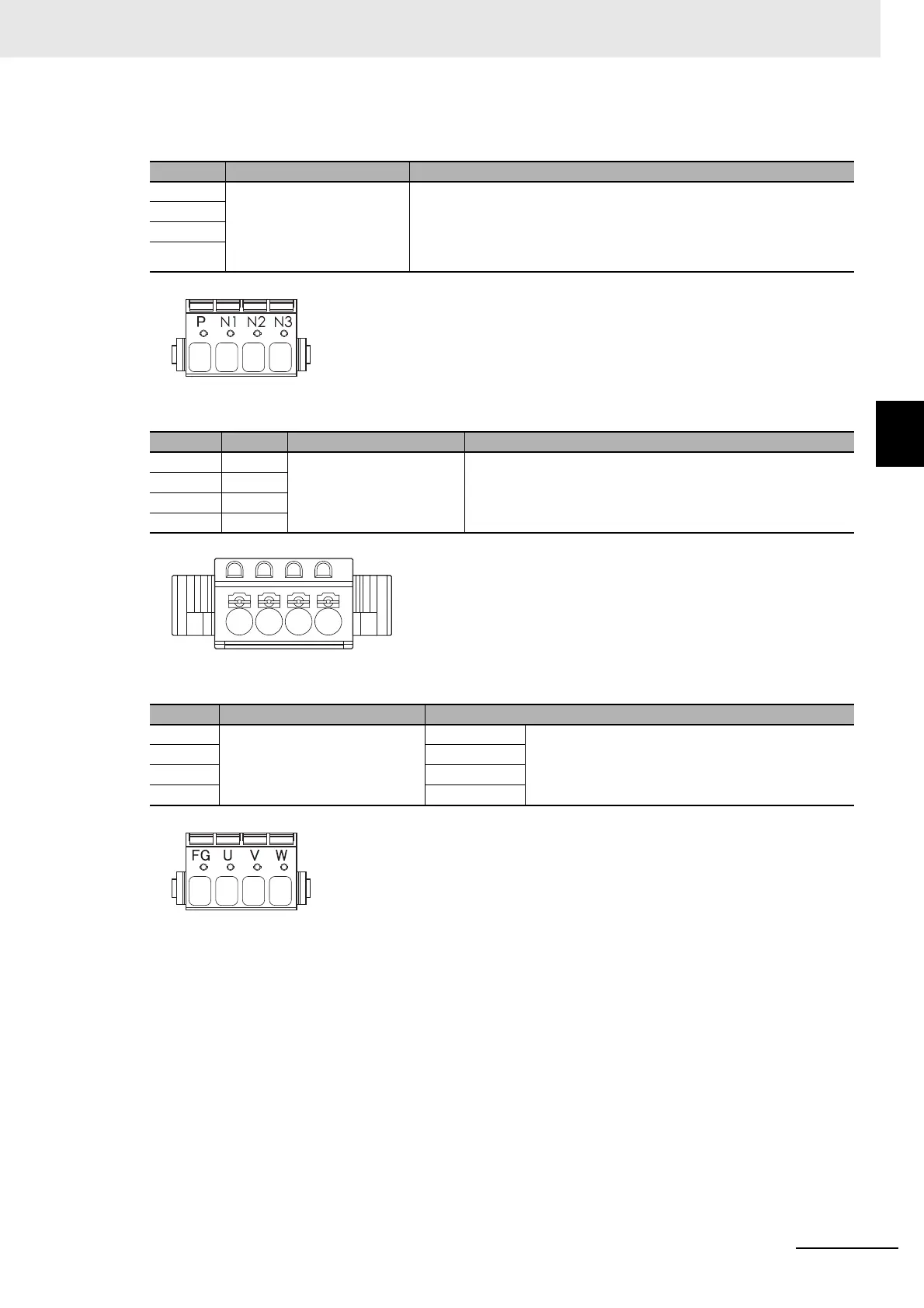

3-1-4 Main Circuit and Motor Connections
 Main Circuit Connector B (CNB) Specifications
 Control Circuit Connector (CND) Specifications
 Motor Connector (CNC) Specifications
Symbol Name Specifications
P DC reactor connection ter-
minals
When the DC reactor is not used:
• Short-circuit N1 and N2.
When the DC reactor is used:
• Connect the DC reactor between N1 and N2.
N1
N2
N3
Pin No. Symbol Name Specifications
1 +24V Control circuit power sup-
ply input
24VDC (21.6 to 26.4 V)
Measured current value: 900 mA
2+24V
30 V
40 V
Symbol Name Specifications
FG Motor connection terminals FG These are output terminals to the Servomotor.
U Phase U
V Phase V
W Phase W
P N1N2N3
+24V +24V 0V 0V
FG U V W
