3 - 123
3 Specifications
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
3-4 Cable and Connector Specifications
3
3-4-5 Connector Specifications
This connector is used for brake cables.
Use it when you prepare a brake cable by yourself.

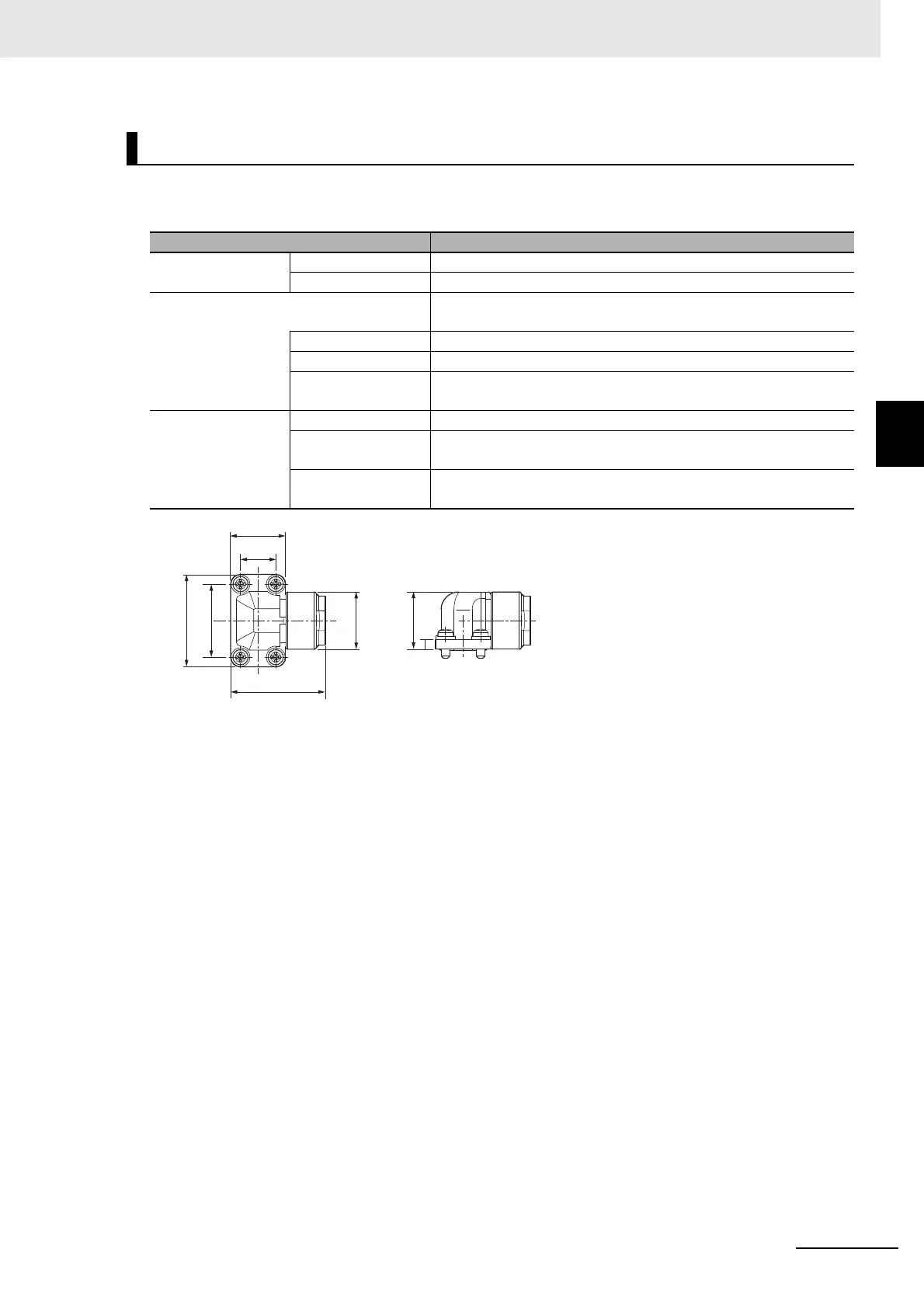

Brake Cable Connector
Item Specifications
Applicable Servo-
motor
100 V 3,000-r/min Servomotors of 50 to 400 W
200 V 3,000-r/min Servomotors of 50 to 750 W
Connector This is a crimping-type connector. For required tools, contact the
manufacturers directly.
Angle plug JN6FR02SM1 (Japan Aviation Electronics)
Socket contact LY10-C1-A1-10000 (Japan Aviation Electronics)
Angle plug and
socket contact
R88A-CN111B (OMRON)
Applicable cable Applicable wire AWG 22 to 26
Insulating cover
outer diameter
0.8 to 1.3 mm dia.
Outer diameter of
sheath
4.5 to 5.5 mm dia.
To Next Page
