3 - 55
3 Specifications
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
3-4 Cable and Connector Specifications
3
3-4-6 Control Cable Specifications

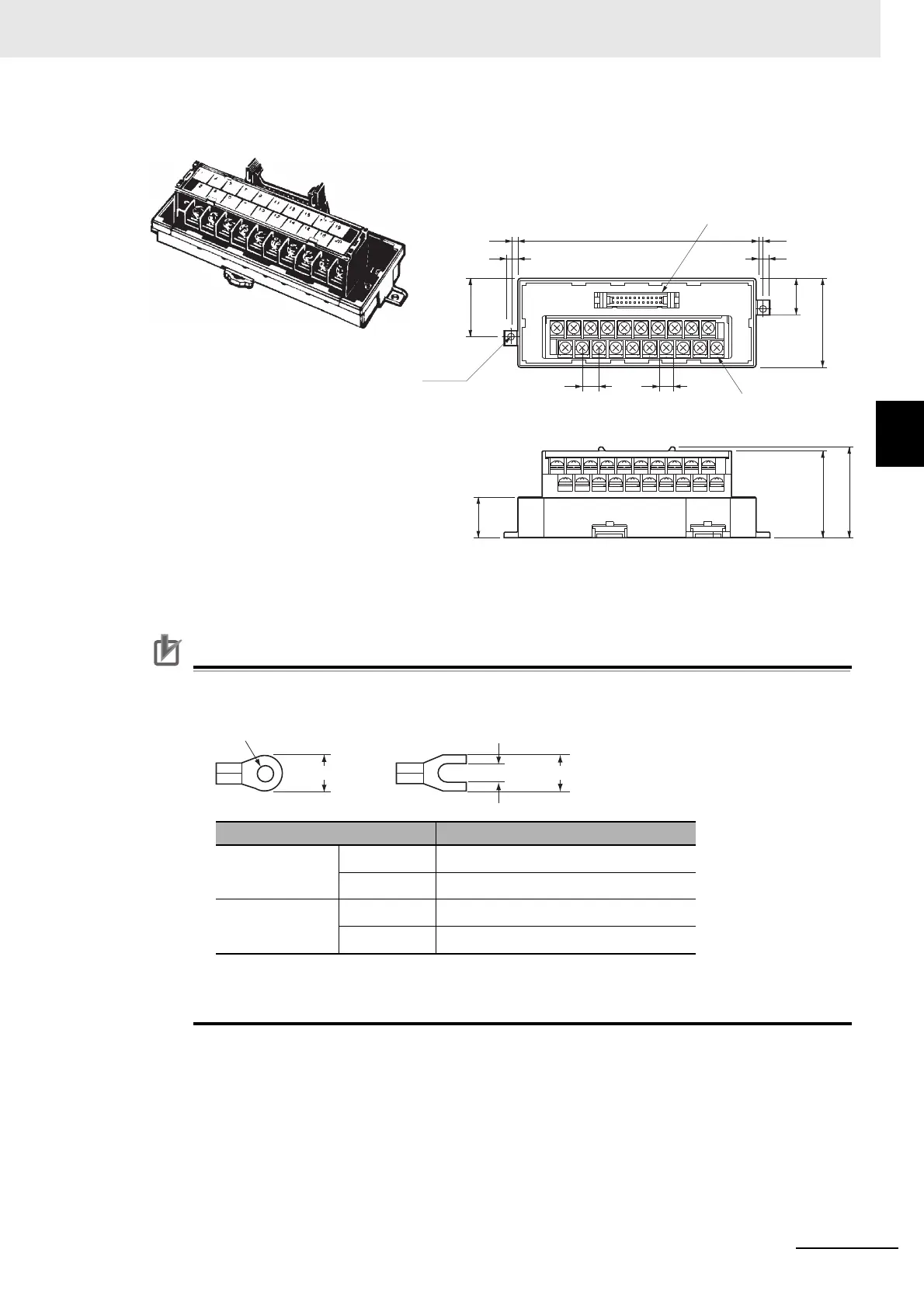

z XW2B-20G5
Note The pitch of terminals is 8.5 mm.
Precautions for Correct UsePrecautions for Correct Use
• When using crimp terminals, use crimp terminals with the following dimensions.
• When connecting wires and crimp terminals to a terminal block, tighten them to a tightening
torque of 0.59 N·m.
Applicable crimp terminals Applicable wires
Round terminals 1.25 to 3
AWG22 to 16 (0.30 to 1.25 mm
2
)
2 to 3.5
AWG16 to 14 (1.25 to 2.0 mm
2
)
Fork terminals 1.25Y to 3
AWG22 to 16 (0.30 to 1.25 mm
2
)
2 to 3.5
AWG16 to 14 (1.25 to 2.0 mm
2
)
7
3.5112.5
15.5
45
2-Ø3.5
20.5
7
8.5 7.3
3.5
2
1
1
2
20
19
19
20
(45.3)
43.5
29.5
Dimensions
Flat cable connector
(MIL type plug)
Terminal block
Ø3.7 mm
3.7 mm6.8 mm max. 6.8 mm max.
Round terminal Fork terminal
To Next Page
