4 System Design
4 - 30
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
Unit Details
*1 A specified combination of Servo Drive and Linear Motor must be used.
Symbol Name Manufacturer Model Comment
SG Surge absorber Okaya Electric Industries
Co., Ltd.
R·A·V-781BWZ-4 Single-phase 100 VAC
R·A·V-781BXZ-4 3-phase 200 VAC
NF Noise filter Okaya Electric Industries
Co., Ltd.
SUP-EK5-ER-6 Single-phase
100/200 VAC (5 A)
3SUP-HU10-ER-6 3-phase 200 VAC (10 A)
3SUP-HU30-ER-6 3-phase 200 VAC (30 A)
3SUP-HU50-ER-6B
13-phase 200 VAC (50 A)
SD Servo Drive OMRON – *1
LM Linear Motor – – *1
SCL External encoder – – –
FC1 Clamp core TDK ZCAT3035-1330 –
FC2 Clamp core Konno Industry RJ8035 –
FC3 Clamp core NEC TOKIN Corporation ESD-SR-250 –
TB Switch box – – –
– Controller – – –

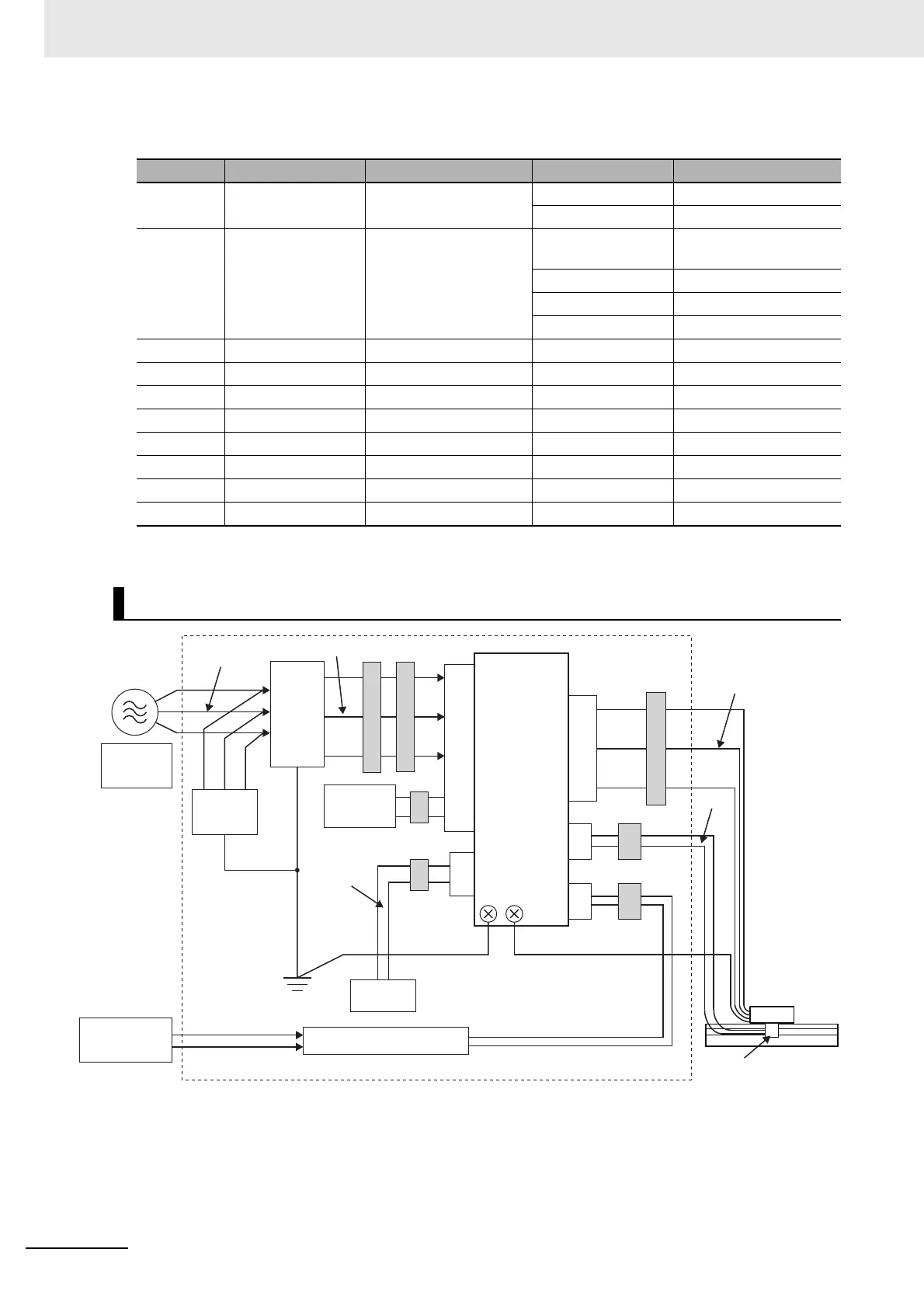

400-VAC Input Servo Drive Models
LM
(3)
(4)
(1)
(2)
(6)
(5)
(7)
(8)
FC2
FC1
FC3
ECAT
IN
TB
L1
L2
L3
L1C
L2C
Single-phase:
100 VAC
3-phase:
400 VAC
SG
NF
FC1
FC1
SD
FC1
FC1
CNA
CN1
CNB
CN4
U
V
W
24 VDC
Controller
SCL
To Next Page
