11 Adjustment Functions
11 - 4
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications

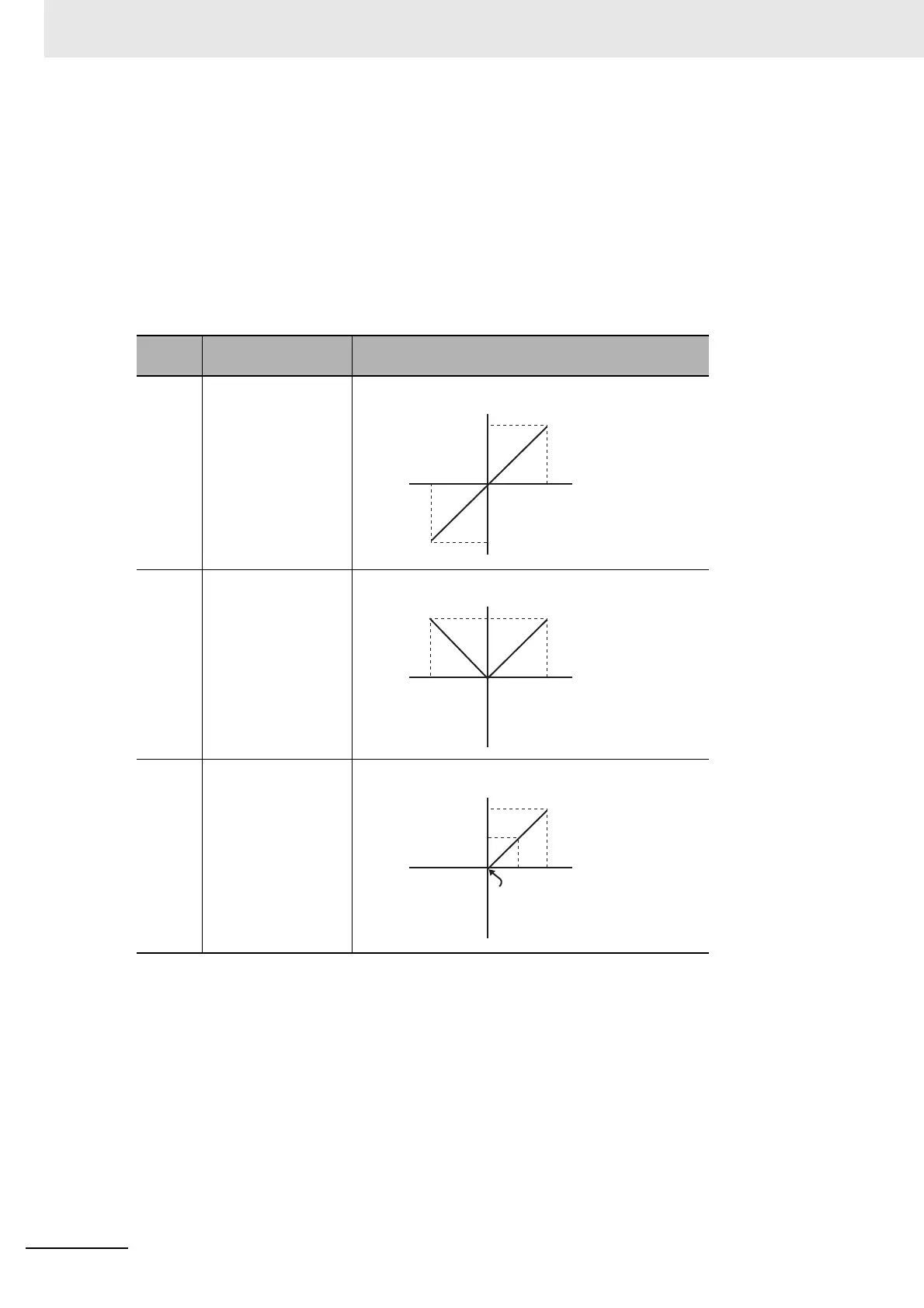

z Analog Monitor Output Setting (3421 hex)
Select the direction for analog monitor output voltage.
The output voltage range and the data output direction when the Analog Monitor 1 Selection (3416 hex)
is set to 0 (motor speed) and the Analog Monitor 1 Scale Setting (3417 hex) is set to 0 are as shown
below.
The following explanation of settings also applies when the Analog Monitor 2 Selection (3418 hex) and
the Analog Monitor 2 Scale Setting (3419 hex) are set to 0.
Set
value
Output range Data output
0 -10 to 10 V
1 0 to 10 V
2 0 to 10 V
(5 V as the center)
10 V
-10 V
0 V
-5,000 5,000 [mm/s]
Feedback
Motor Speed
Output voltage [V]
10 V
-10 V
0 V
-5,000 5,000 [mm/s]
Feedback
Motor Speed
Output voltage [V]
10 V
5 V
-10 V
0 V 0
-2,500
2,500 [mm/s]
Feedback
Motor Speed
Output voltage [V]
