9-4 Setting the Mode
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
9
Operation

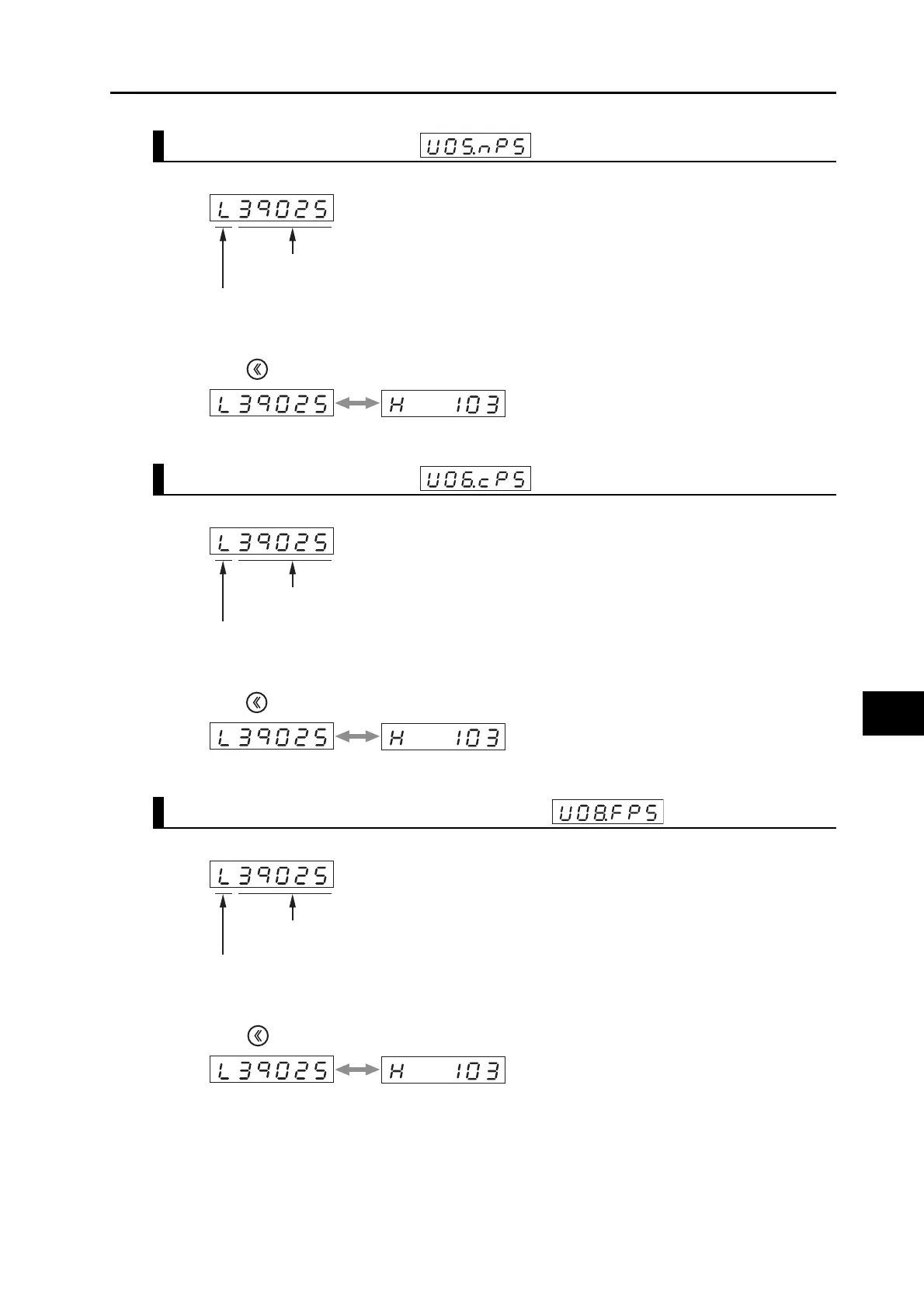

Total Encoder Pulses
Total Command Pulses
Total External Encoder Feedback Pulses
Lower (L)
Higher (H)
Total encoder pulses [encoder pulse]
Press to switch between Lower (L) and Higher (H).
Lower (L)
Higher (H)
Total command pulses [command pulse]
Press to switch between Lower (L) and Higher (H).
Lower (L)
Higher (H)
Total external encoder feedback pulses
Press to switch between Lower (L) and Higher (H).
