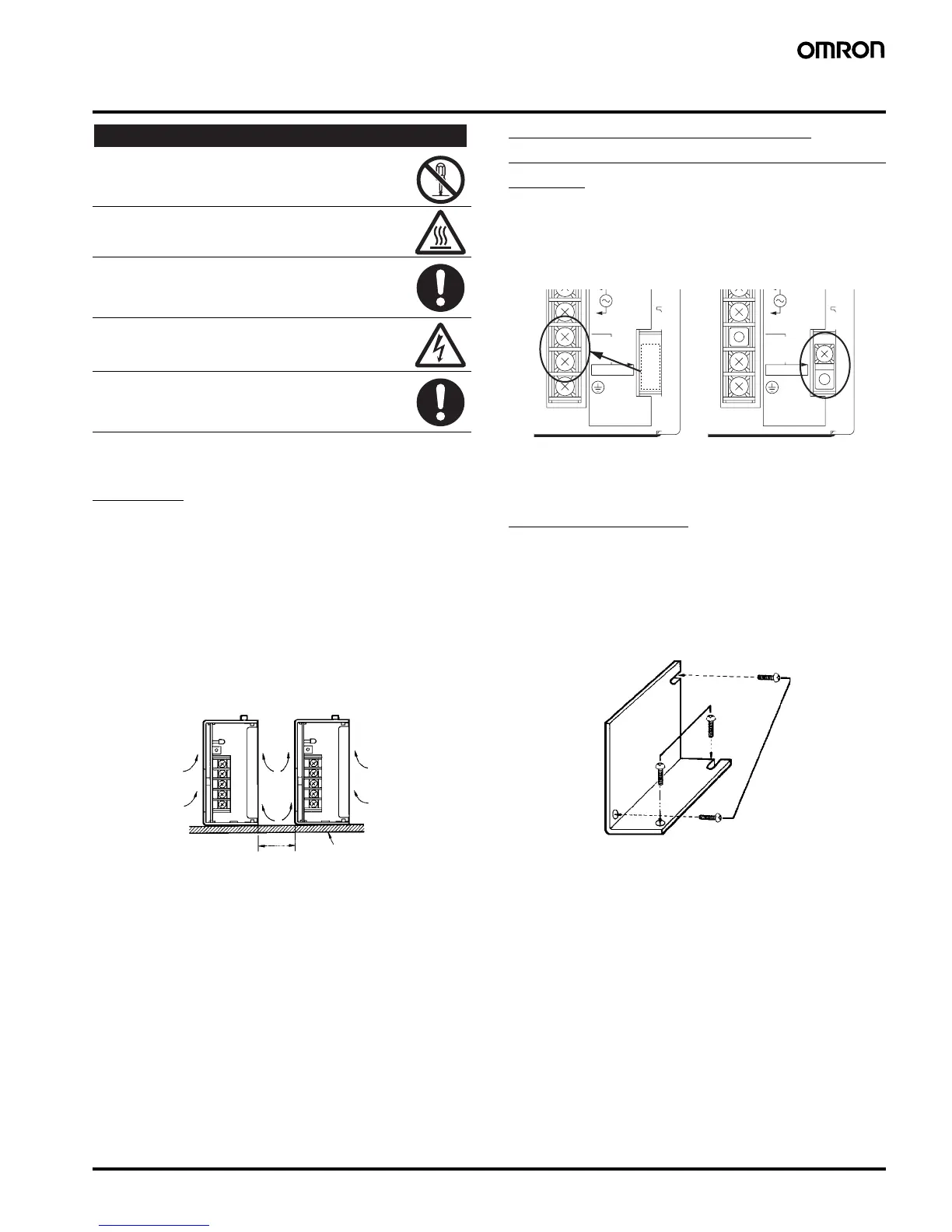

Switch Mode Power Supply S82J 17
Safety Precautions
!CAUTION
■ Precautions for Safe Use
Mounting
To improve and maintain the reliability of the Power Supply over a
long period of time, adequate consideration must be given to heat
radiation.
The Power Supply is designed to radiate heat by means of natural
air-flow. Therefore, mount the Power Supply so that air flow takes
place around the Power Supply.
When mounting the Power Supply, mounting it to a metal plate is
recommended.
When mounting two or more Power Supplies side-by-side, allow at
least 20 mm spacing between them, as shown in the following
illustration.
Forced air-cooling is recommended.
Switching the AC Input Voltage
between 100 and 200 V (300- and 600-W
Models)
The input voltage can be switched between 100 and 200 V by
shorting or opening the input voltage selection terminals. Set the
required voltage as shown below. (The voltage is factory-set to 200
V. )
Note: A 300-W Model is shown above.
Mounting Methods
The following mounting methods are available.
10-/25-/50-/100 (24 V)-W Models
(A) Side mounting
(B) Bottom mounting
(C) Front mounting (see Accessories)
100 (5, 12, 15 V)/150-/300-/600-W Models
(A) Side mounting
(B) Bottom mounting (secured with screws from the inside of the
Switching Power Supply) (except for 300- and 600-W models)
(C) Bottom mounting (secured with screws from the back of the
Switching Power Supply)
Minor electric shock, fire, or Product failure may
occasionally occur. Do not disassemble, modify, or repair
the Product or touch the interior of the Product.
Minor burns may occasionally occur. Do not touch the
Product while power is being supplied or immediately
after power is turned OFF.
Fire may occasionally occur. Tighten terminal screws to
the specified torque 0.74 N·m for 10-, 25-, 50-, or 100-W
models (24-V output); or 1.08 N·m for 100- (5-, 12-, or 15-
V output), 150-, 300-, or 600-W models.
Minor injury due to electric shock may occasionally occur.
Do not touch the terminals while power is being supplied.
Minor electric shock, fire, or Product failure may
occasionally occur. Do not allow any pieces of metal or
conductors or any clippings or cuttings resulting from
installation work to enter the Product.
Air
Metal plate
20 mm min.
SHORT BAR
N
L
MADE IN JAPAN
OMRON Corporation
VOLTAGE SELECT
SHORT 100-120V
OPEN 200-230V
For 100 V
SHORT BAR
N
L
MADE IN JAPAN
OMRON Corporation
VOLTAGE SELECT
SHORT 100-120V
OPEN 200-230V
For 200 V
Short with the short bar.
Remove the short bar
and leave the terminals open.
(B)
(A)
To Next Page
