Omron S8FS-G Series User Manual

S8FS-G
15

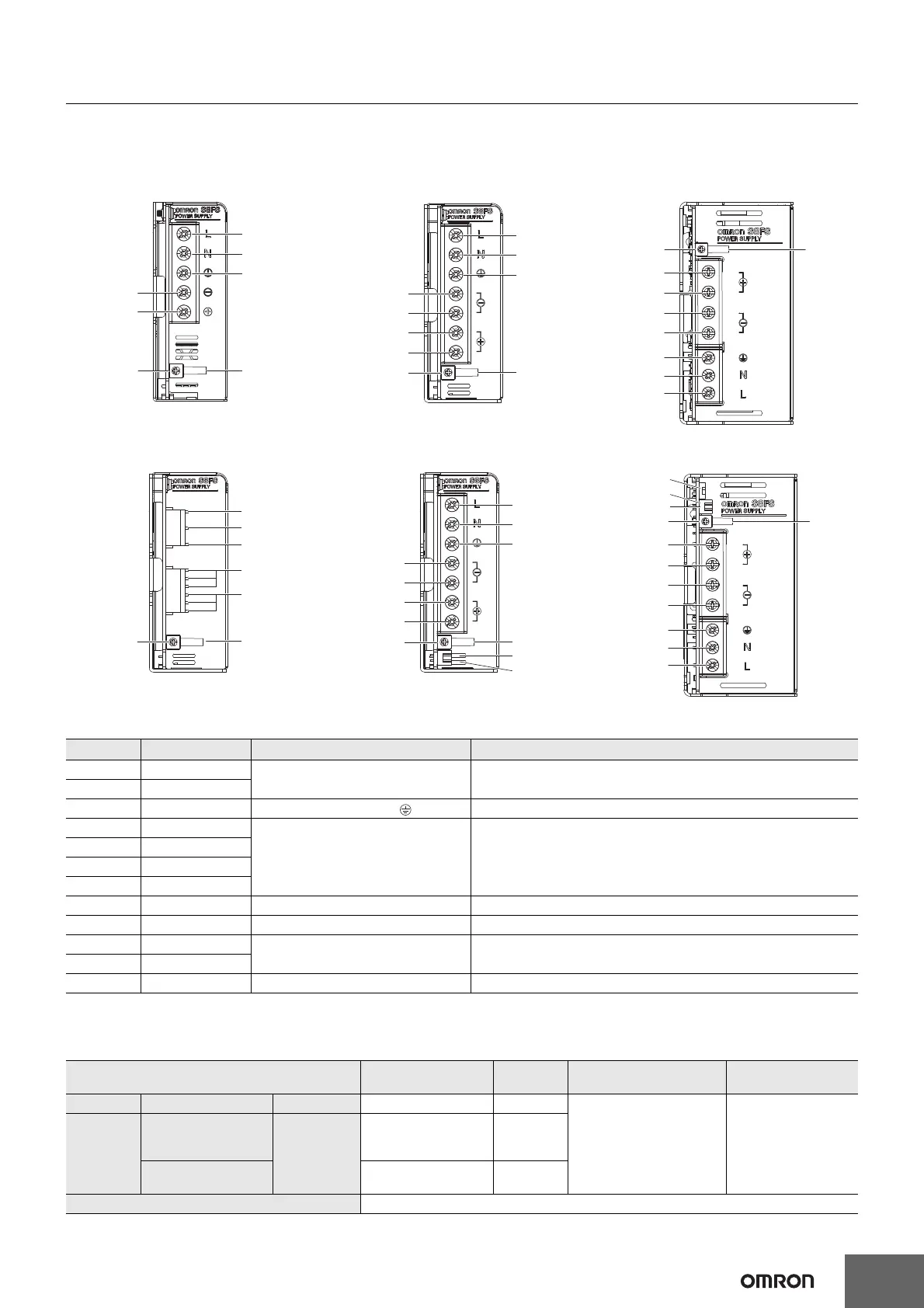

Construction and Nomenclature
Nomenclature
*1. The fuse is located on the (L) side. It is not user-replaceable. For a DC input, connect the positive voltage to the L terminal.
*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.
Input and Output Connectors (Connector type)
Note: The female connectors that are required for wiring are not provided with the Power Supply.
S8FS-G015@@@
S8FS-G030@@@
S8FS-G050@@@
S8FS-G100@@@
S8FS-G150@@@
S8FS-G300@@@
S8FS-G600@@@
S8FS-G@@@24CE S8FS-G@@@24C-R S8FS-G@@@24C-WR
No. Terminal name Name Function
(1) L
Input terminals Connect the input lines to these terminals. *1
(2) N
(3) PE Protective Earth terminal
() Connect the ground line to this terminal. *2
(4) +V1
DC output terminals Connect the load lines to these terminals.
(5) +V2
(6) -V1
(7) -V2
(8) --- Output indicator (DC ON: green) Lights while a direct current (DC) output is ON.
(9) --- Output voltage adjuster (V.ADJ) Use to adjust the voltage.
(10) +RC
Remote control terminals Wire for remote control.
(11) -RC
(12) --- Parallel operation switch To operate in parallel, set the switch to the “PARALLEL” side.
Applicable
connector
Housing Terminals
Applicable
crimp tool
Input side All models CN110 B3P5-VH (LF) (SN) VHR-5N
Reel: SVH-21T-P1.1
Bulk: BVH-21T-P1.1
YC-160R
Output side
S8FS-G01524@E
S8FS-G03024@E
S8FS-G05024@E
CN510
B4P-VH (LF) (SN) VHR-4N
S8FS-G10024@E
S8FS-G15024@E
B6P-VH (LF) (SN) VHR-6N
Manufacturer J.S.T. Mfg. Co., Ltd.
(1)
(2)
(3)
(8)
(9)
(4)
(6)
(1)
(2)
(3)
(8)
(7)
(5)
(9)
(4)
(6)
(1)
(2)
(3)
(8)
(7)
(5)
(9)
(4)
(6)
(9)
(6)
(4)
(8)
(1)
(2)
(3)
(1)
(2)
(3)
(10)
(11)
(8)
(7)
(4)
(5)
(9)
(6)
(8)
(1)
(2)
(3)
(9)
(10)
(11)
(12)
(7)
(4)
(5)
(6)
