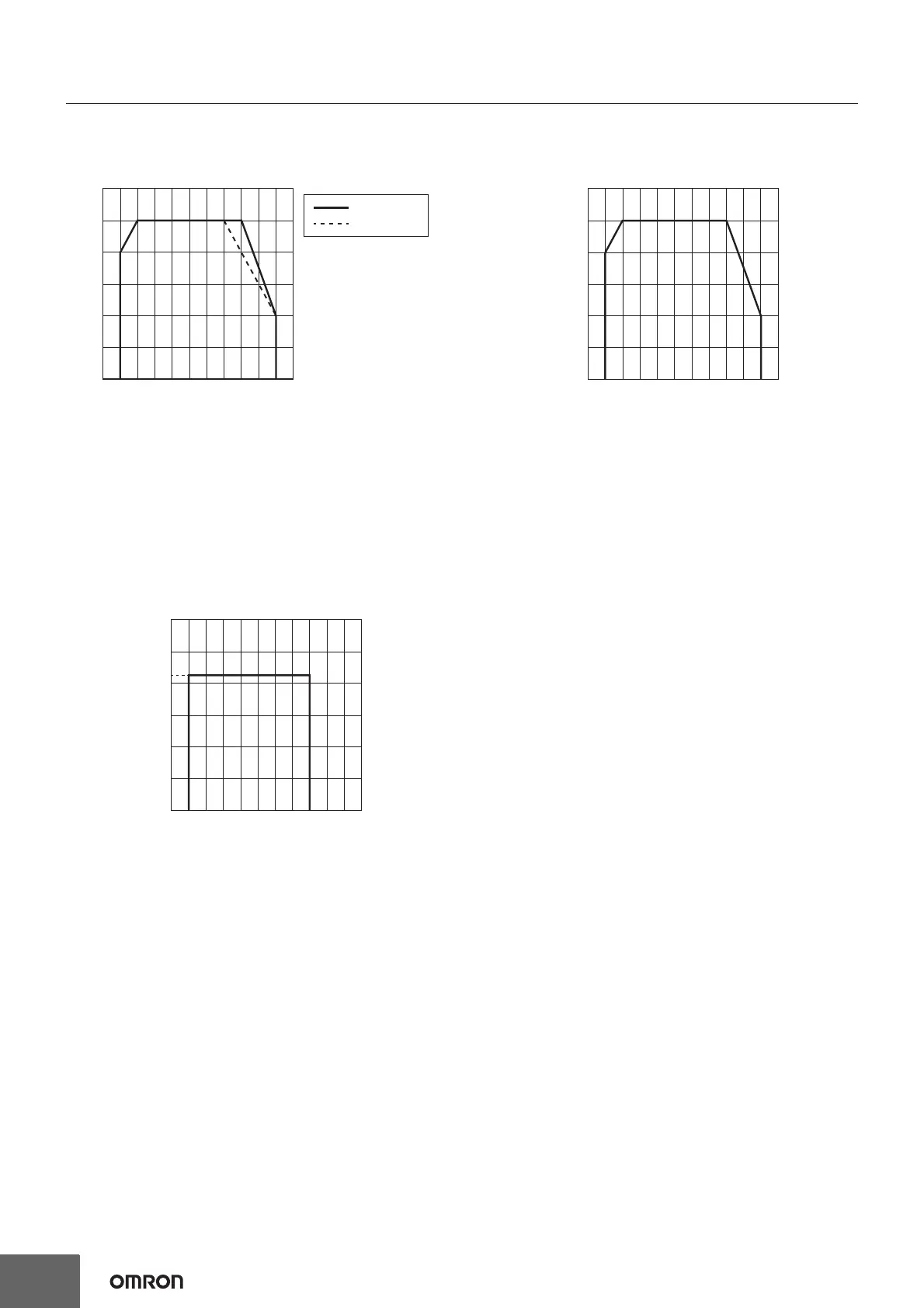

Engineering Data
Derating Curves
Output Derating
15 W, 30 W, 50 W, 100 W, and 150 W 300 W and 600 W
Note: 1. (For customers using the unit with an AC input)
At a voltage below 100 VAC, reduce the load below the
range of the derating curve shown above by the solid line,
at the rate of 1.3%/V.s (40°C < Ambient temperature ≤
70°C)
2. (For customers using the unit with a DC input)
At a voltage below 100 VDC, reduce the load below the
range of the derating curve shown above by the dashed
line, by multiplying with the coefficient 0.9.
Note: At a voltage below 100 VAC, reduce the load at the rate of
1.3%/V.
Parallel Operation
For Models with Parallel Operation Option
Note: At a voltage below 100 VAC, reduce the load at the rate of
1.3%/V.
100 VAC or above
100 VDC or above
-30 -20 -10 01020304050607080
Ambient Temperature (°C)
0
20
40
60
80
100
120
Load rate (%)
0
20
40
60
80
100
120
-30 -20 -10 01020304050607080
Load rate (%)
Ambient Temperature (°C)
0
20
40
60
80
100
120
-30 -20 -10 0 10 20 30 40 50 60 70 80
85
Load rate (%)
Ambient Temperature (°C)
