Omron SYSDRIVE 3G3EV

2-5

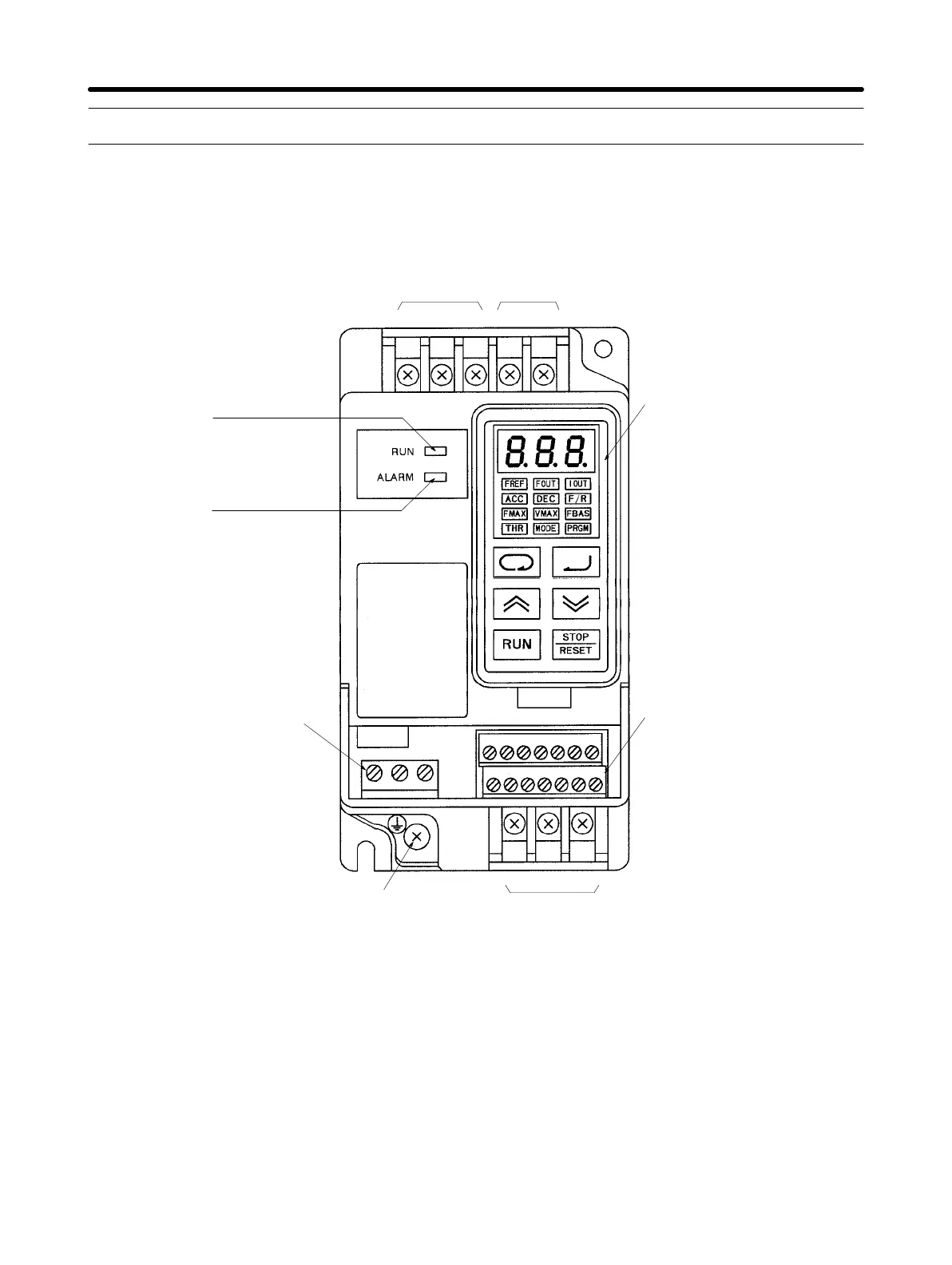

2-2 Component Names
H Main Unit
Main Circuit Terminals (Input)
Power input
terminals
Braking resistor
connection terminals
Run indicator
Alarm indicator
Control circuit terminals
(output)
Ground terminal
Main Circuit Terminals (Output)
Motor output
terminals
Digital Operator
Control circuit terminals
(input/output)
MA MB MC
SF SR S1 SC FS FR FC
RS TB1B2
S2 S3 SC AMAC PA PC
UV W
Note This diagram shows the Inverter with all terminal block covers removed.
Overview Chapter 2
