4-32
n49

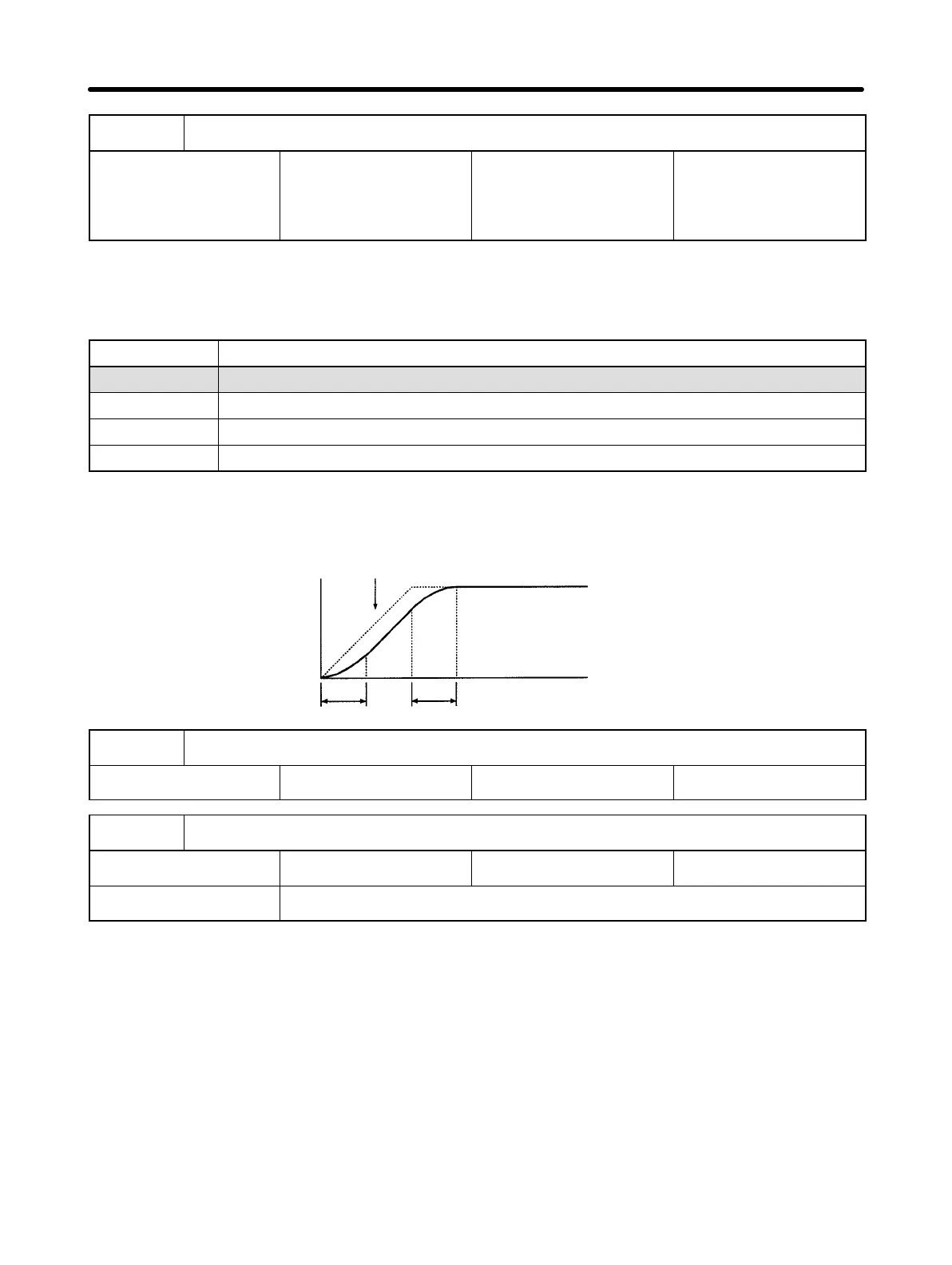

S-shape Acceleration and Deceleration Characteristic
Setting range 0 to 3 Factory setting 0 (No S-shape
acceleration or
deceleration)
This constant is used for the s-shape acceleration and deceleration of the Inverter to
decrease the shock of the machine connected to the Inverter when the machine starts
or stops operating.
Value Description
0 No s-shape acceleration or deceleration
1 S-shape characteristic time set to 0.2 second
2 S-shape characteristic time set to 0.5 second
3 S-shape characteristic time set to 1.0 second
Note If this constant is set to 1, 2, or 3, the acceleration or deceleration time will in-
crease by 0.2, 0.5, or 1.0 second respectively.
No s-shape acceleration or deceleration
S: S-shape characteristic time
Output frequency
Time
SS
n50
Over-torque Detection Function Selection
Setting range 0 to 4 Factory setting 0
n51
Over-torque Detection Level
Setting range 30 to 200 (%) Factory setting 160 (%)
Unit of setting 1 (%)
Preparing for Operation Chapter 4
