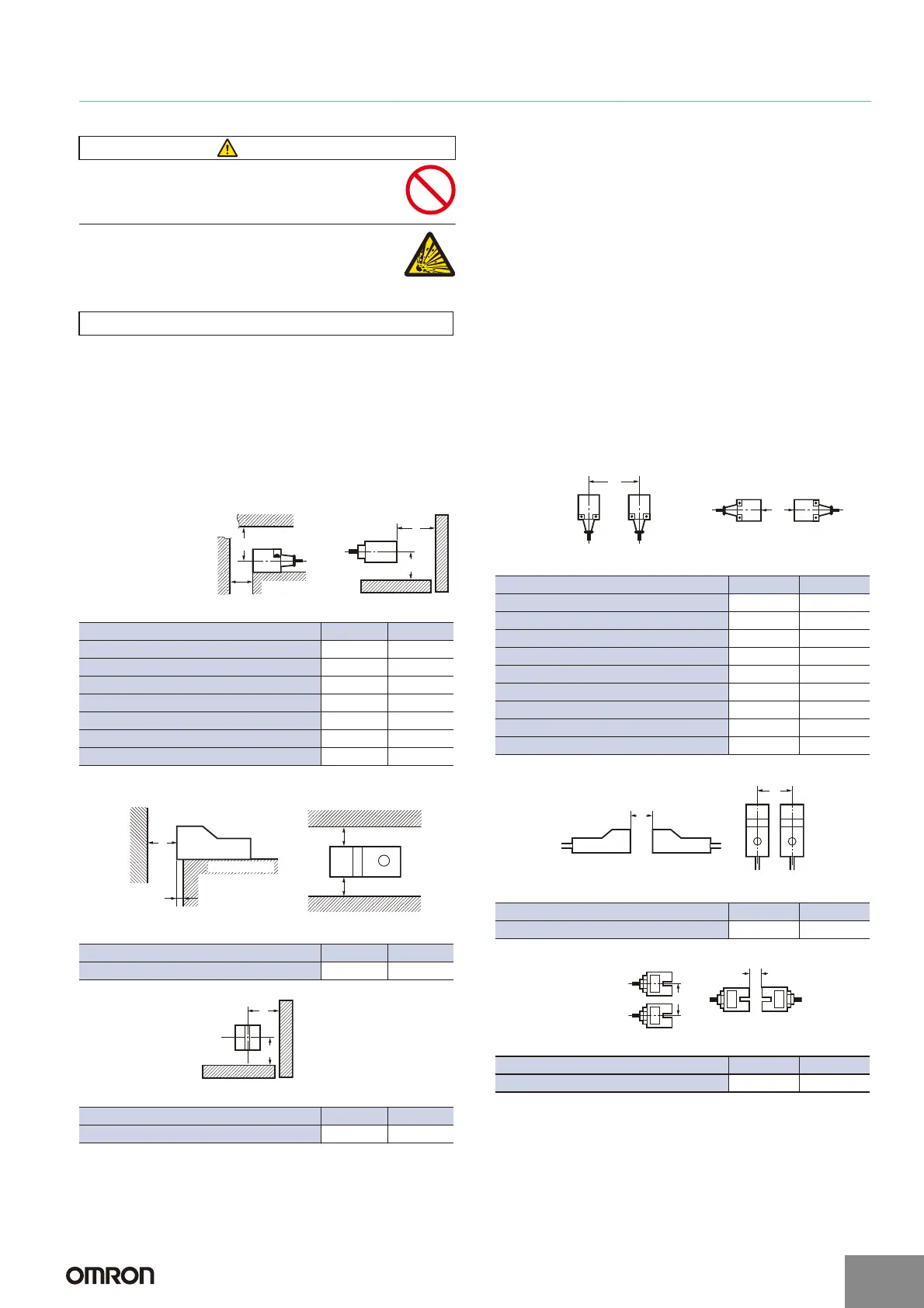

TL-N/TL-Q/TL-G
Safety Precautions
Refer to Warranty and Limitations of Liability.
This product is not designed or rated for ensuring
safety of persons either directly or indirectly.
Do not use it for such purposes.
Do not short-circuit the load, otherwise the Sensor may
be damaged.
Do not supply power to the Sensor with no load,
otherwise the Sensor may be damaged.
Applicable Models: AC 2-Wire Models
Do not use this product under ambient conditions that exceed the
ratings.
● Design
Influence of Surrounding Metal
When mounting the Sensor within a metal panel, ensure that the
clearances given in the following table are maintained. Failure to
maintain these distances may cause deterioration in the performance
of the Sensor.
Influence of Surrounding Metal (Unit: mm)
* The figure is applicable for one metal object. (The figure must be multiplied by
the number of metal objects.)
Influence of Surrounding Metal (Unit: mm)
Influence of Surrounding Metal (Unit: mm)
Mutual Interference
When installing Sensors face-to-face or side-by-side, ensure that the
minimum distances given in the following table are maintained.
Mutual Interference (Unit: mm)
* Values in parentheses apply to Sensors operating at different frequencies.
Mutual Interference (Unit: mm)
Mutual Interference (Unit: mm)
WARNING
Precautions for Correct Use
Model Distance A * B *
TL-Q5M@@ 20 20
TL-N7MD@ 40 35
TL-N12MD@ 50 40
TL-N20MD@ 70 60
TL-N5ME@, TL-N5MY@ 20 23
TL-N10ME@, TL-N10MY@ 40 30
TL-N20ME@, TL-N20MY@ 80 45
Model Distance A B
TL-Q2MC1 12 3
Model Distance A B
TL-G3D-3 11 17
A
B
TL-N
Rectangular Models
A
B
TL-Q
A
3 mm
TL-Q2MC1
* The mounting plate
must be a non-
ferrous metal.
Mounting plate*
B
B
TL-Q2MC1
A
B
Grooved Model
Model Distance A * B *
TL-Q5MC@ 60 (17) 120 (60)
TL-Q5MD@ 60 (30) 120 (80)
TL-N7MD@ 100 (50) 120 (60)
TL-N12MD@ 120 (60) 200 (100)
TL-N20MD@ 200 (100) 200 (100)
TL-N5ME@ 80 (40) 80 (40)
TL-N5MY@ 80 (40) 90 (40)
TL-N10ME@, TL-N10MY@ 120 (60) 120 (60)
TL-N20ME@, TL-N20MY@ 200 (100) 120 (60)
Model Distance A B
TL-Q2MC1 30 (8) 90 (45)
Model Distance A B
TL-G3D-3 31 25
A
B
Parallel
Face-to-face
B
A
B
A
Grooved Model
http://www.ia.omron.com/
9
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
