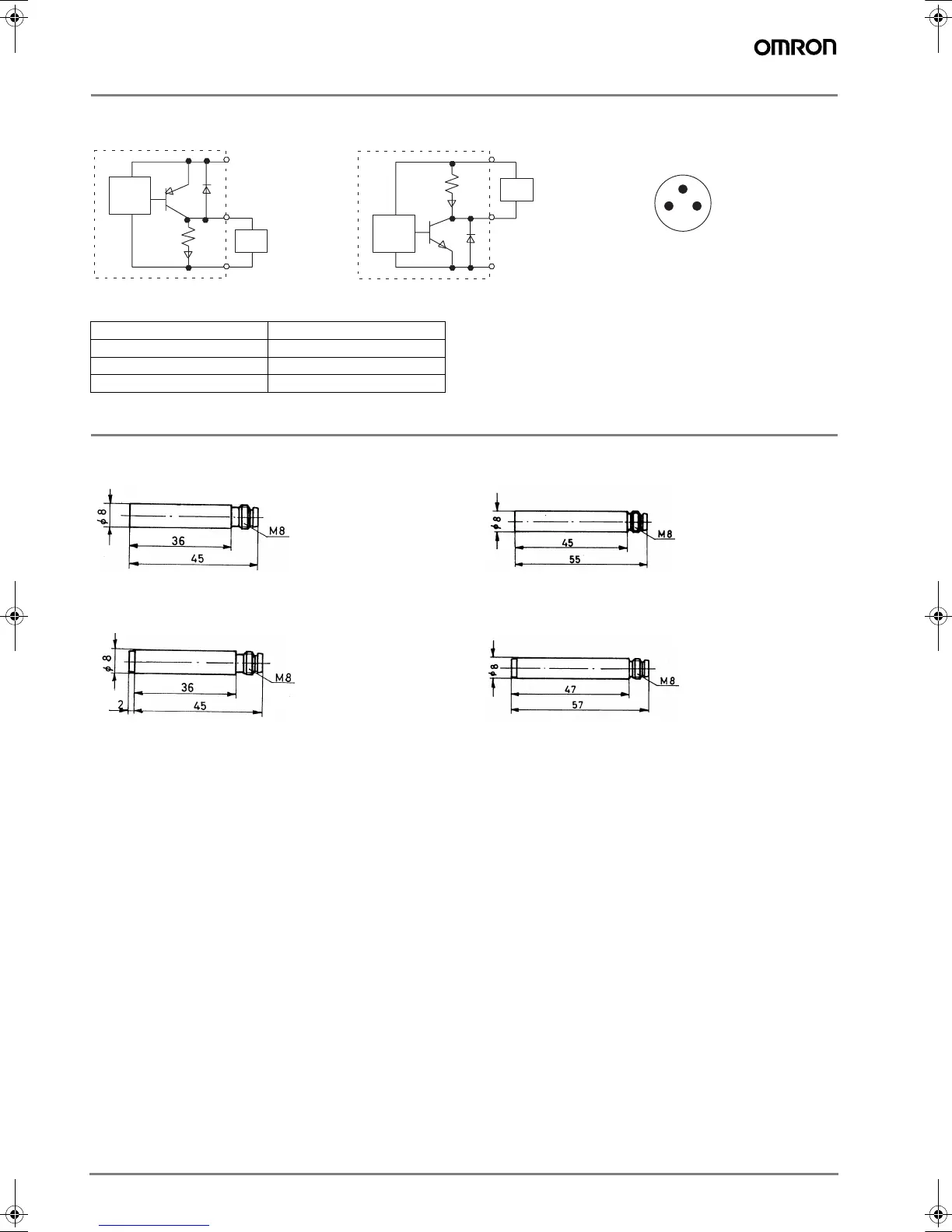

D-116 Inductive Sensors
Output circuits
Reduction factors (typical values)
Dimensions (mm)
Chrome-nickel Sn x 0.9
Brass Sn x 0.5
Aluminium Sn x 0.45
Copper Sn x 0.4
PNP output
+
A
Load
-
Circuit
A
NPN output
Circuit
Load
+
-
A
+
-
TL-C1R5@@-E1
TL-C2M@@-E1
TL-C1R5@@-E2
TL-C2M@@-E2
