Omron TM Collaborative Robot: Safety Laser Scanner Installation – Ver. 1
Page 11 of 11
Omron Automation │©2019 Omron. All rights reserved. │automation.omron.com

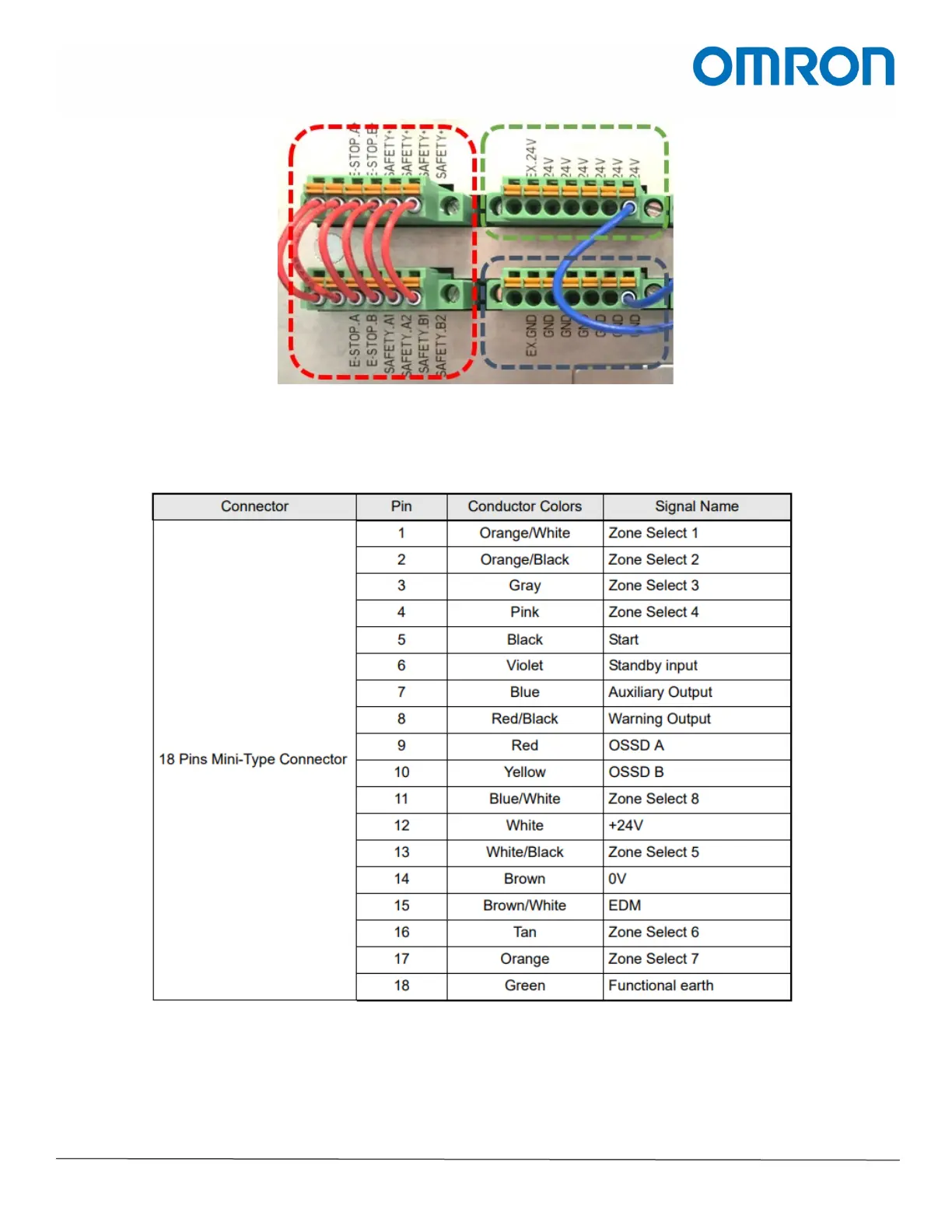

Fig. A-2: The connectors on the TM Control Box. The
safety connectors are shown in red, 24 V outputs in
green, and ground connection in blue.
Fig. A-3: Power and I/O connections of the OS32C laser scanner.
