1. Mesh Cap
Contains metal alloy mesh for
nebulisation.
2. Nebulisation port
Nebulised medication exits here.
3. Mesh Cap Cover
Protects the mesh.
4. Mesh
Efficient nebulisation is realized through
the use of minute pores.
Do not touch this fragile part with your
fingers!
Do not attempt to clean with a cotton
swab or a pin!
5. Air port
Stabilizes nebulisation.
6. Medication Port
Medication can be filled here by opening
the mesh cap.
7. Vibrator
The tip of this vibrator oscillates at high
frequency and pushes the medication
through the pores of the mesh.
8. Medication container cap locking lever
Opens the medication container cap.
9. Medication container cap
To be opened for cleaning the medication
container.
1
2
4
3
5
6
8
7
9
10
11
15
12
13
16
14
17

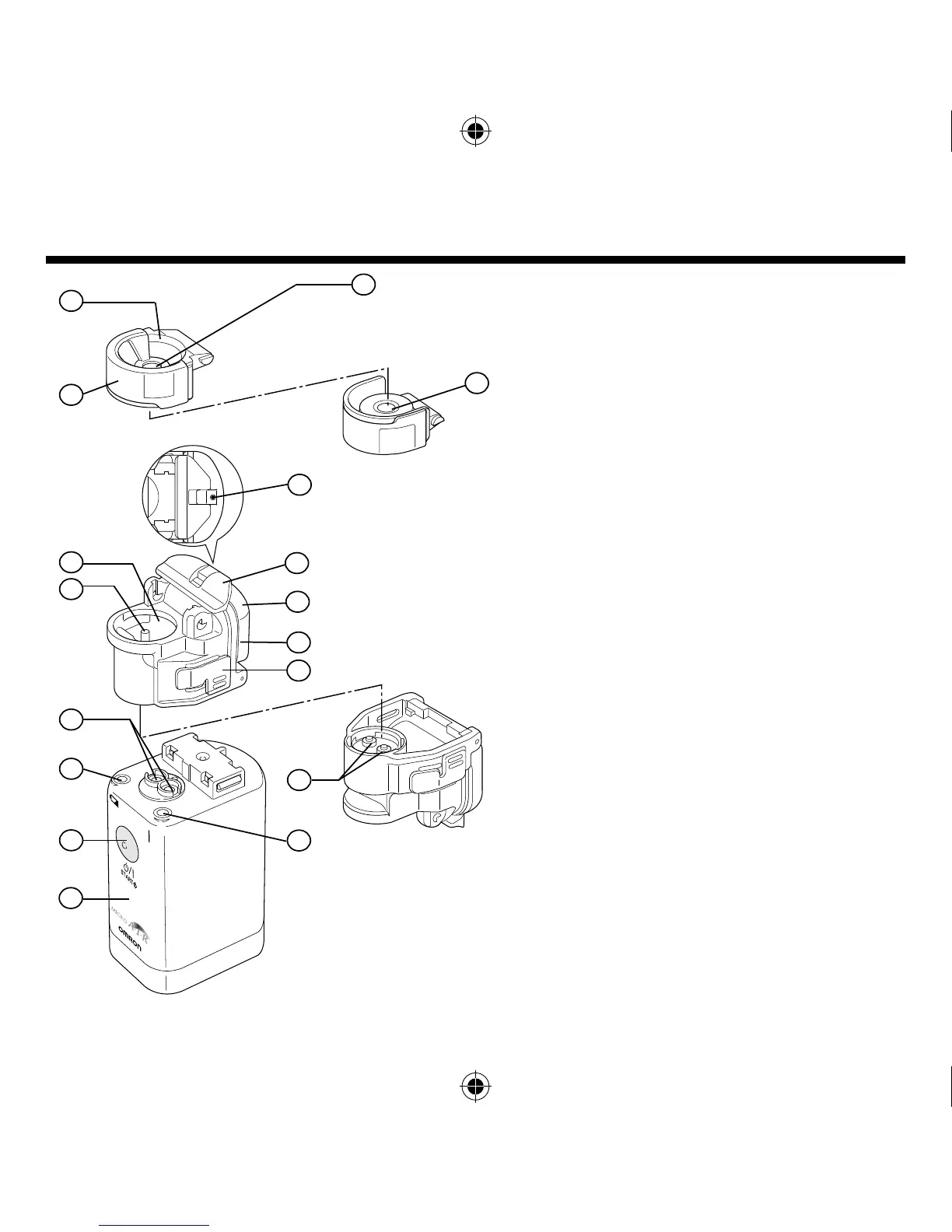

Figure viewed from the above
Mesh cap viewed from
the bottom
Viewed from the bottom
Names and functions of the parts
