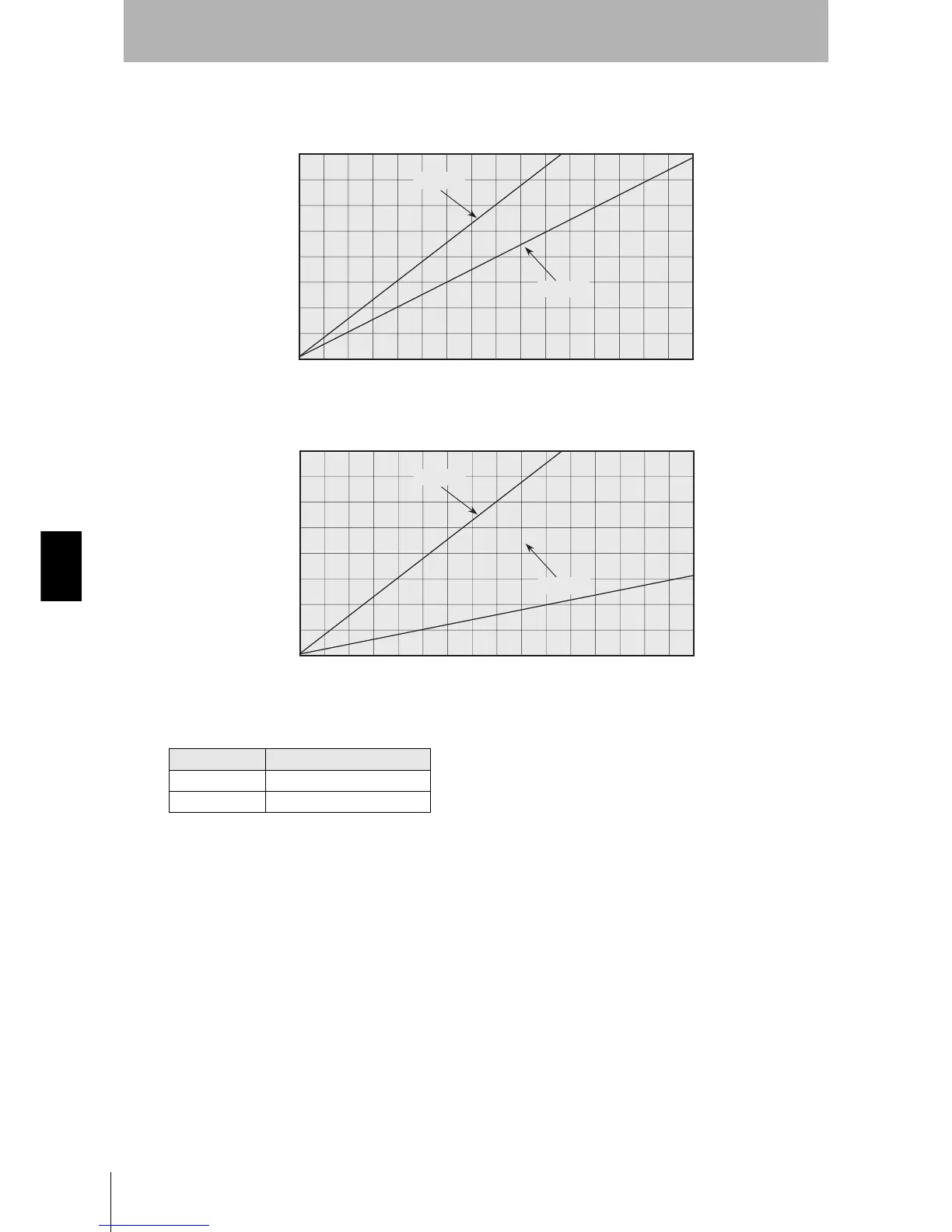

•Fe-RAM Data Carrier (Reference)
•TAT
•Transmission Time
Note 1: Communications specifications for TAT data with the host device represent values with a baud
rate of 9,600 bps, a bit length of 7 bits, 2 stop bits, and even parity. In this example, characters
are sent consecutively, with no spaces between them.
Note 2: The number of bytes in the TAT data is the number for ASCII encoding.
2560 768512 12801024 17921536 2048
8000
7000
6000
5000
4000
3000
2000
1000
0
Read
Write
Number of
p
rocessin
g
data b
y
tes
Transmission time (ms)
2560 768512 12801024 17921536 2048
8000
7000
6000
5000
4000
3000
2000
1000
0
Read
Write
Number of processing data bytes
Transmission time (ms)
Calculation Method
Operation Transmission time (ms)
Read T=1.5N+61.6
Write T=3.5N+75.8
N: Number of processing
