Section 2V600-CH1D-V2 Communications Preparation
RFID System
User's Manual
Section 2
Communications Preparations
V600-CH1D-V2 Communications Preparation

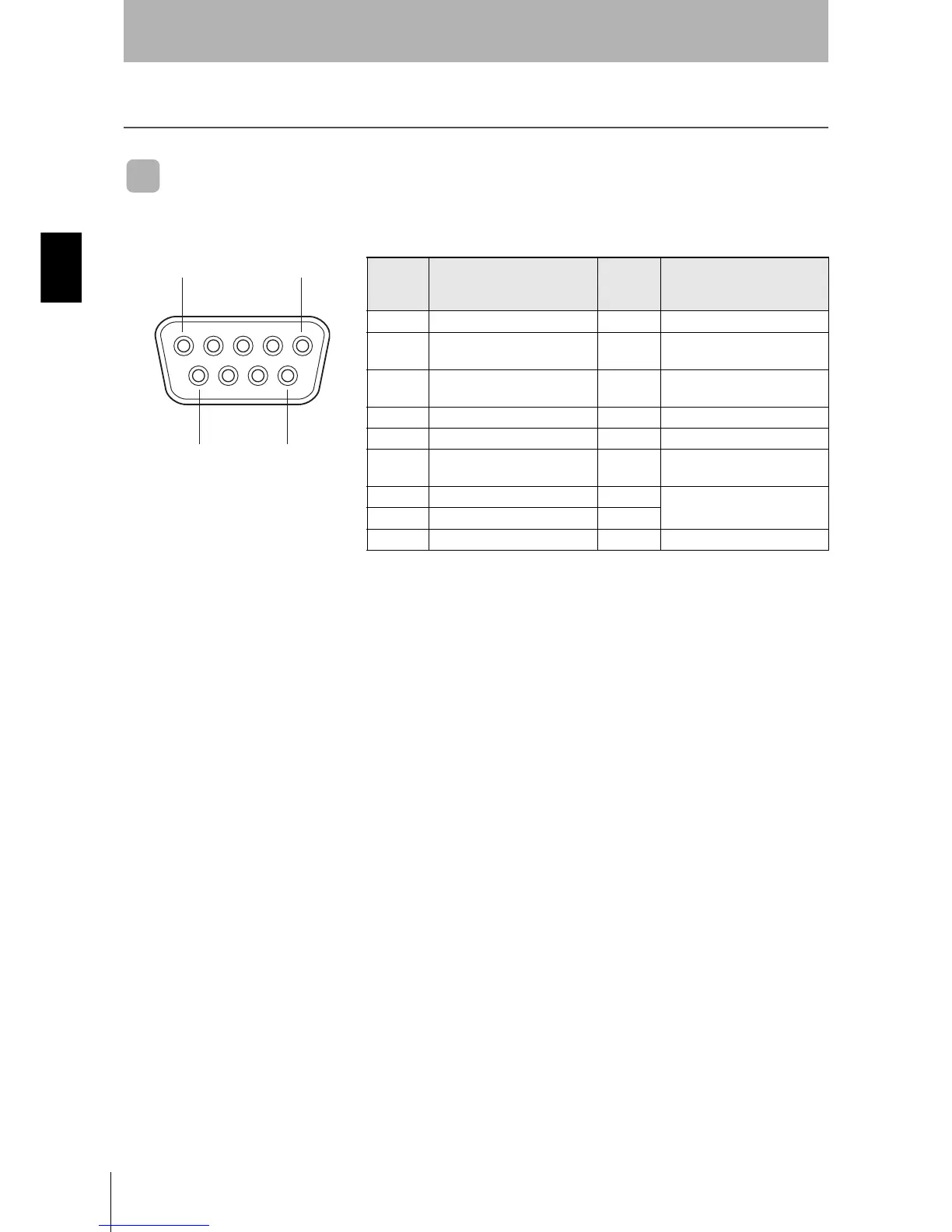

Pin Arrangement of the Host Device Interface Connector
V600-CH1D-V2
Note: The names of signals at the host device are abbreviated with
codes.
Note: For conversion to a 25-pin connector, the SGC-X9P/25P-2 manufactured by Sunhayato, or an
equivalent, is recommended.
Pin No. Signal
Code
(See
note.)
Signal direction
1 --- ---
2
Receive data RD Hand-held Reader Writer to
host device
3
Send data SD Host device to Hand-held
Reader Writer
4 --- --- ---
5 Signal ground SG ---
6
Data set ready DS Hand-held Reader Writer to
host device
7 Request send RS Loops inside connector
8 Enable send CS
9 --- --- ---
51
9
6
