Section 2Communications Test
RFID System
User's Manual
Section 2
Communications Preparations
Communications Test Between Host Device and Hand-held
Reader Writer
Use the test command to test communications between the Hand-held Reader Writer and host device.
Before performing communications with the Data Carrier, check the Hand-held Reader Writer connec-
tions and communications.
1. Send the test command from the host device.
For detail on the test command, refer to TEST (TS).
p.89
2. If communications is normal, the Hand-held Reader Writer will return the received data.
If a response is not returned, refer to Troubleshooting.
p.111
Communications Test Between the Data Carrier and Hand-held
Reader Writer
Use a real command to test communications between the Data Carrier and the Hand-held Reader
Writer.
1. Send the auto read command (AR) from the host device.
For details on the auto read command, refer to AUTO READ (AR).
p.52
The Hand-held Reader Writer will communicate with the Data Carrier and the operation indicator will flash green.

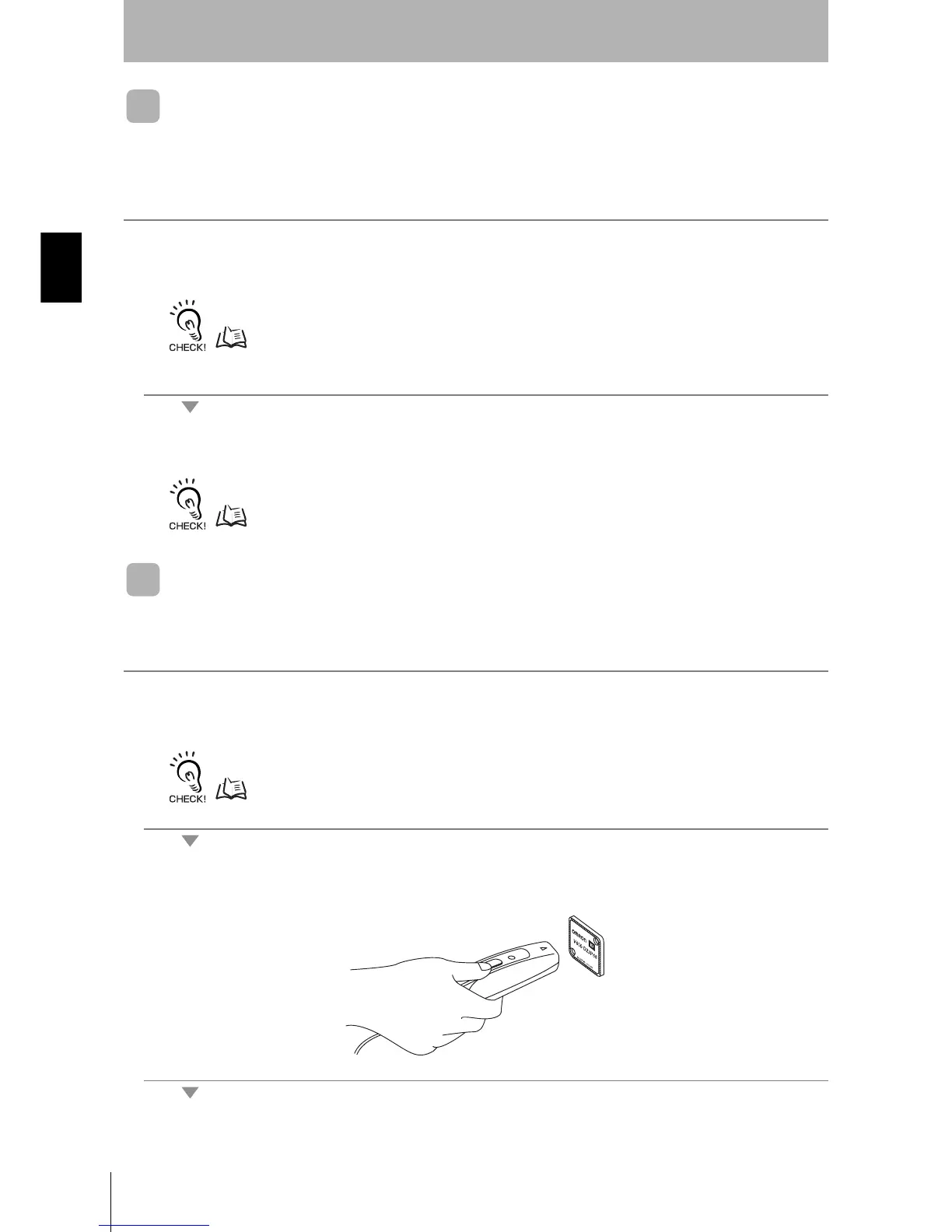

2. Move the antenna section of the Hand-held Reader Writer close to the Data Carrier.
The Hand-held Reader Writer will read the data in the Data Carrier when the Hand-held Reader Writer moves within the commu-
nications range. As a result, the operation indicator will be light green and then turn OFF.
To Next Page
