WL-N/WLG
77
General-purpose Switches
Environment-resistant Switches
Spatter-prevention Switches
Long-life Switches Accessories Safety Precautions
Sensor I/O connectors
Note: For details, refer to the data sheet for XS2 Round Water-resistant Connectors (M12 Threads) or XS5 Round Water-resistant Connectors
(M12 Smartclick).
*1. The default setting is for light-ON when not operating. Turn the lamp holder by 180° to change the setting to light-ON when operating.
*2. The WL-LD-K, WL-LE-K, WL-LDS-K, and WL-LES-K correspond with each set model WLG@, the design of which was changed in April 2019.
Refer to the notes on page 75 for details.

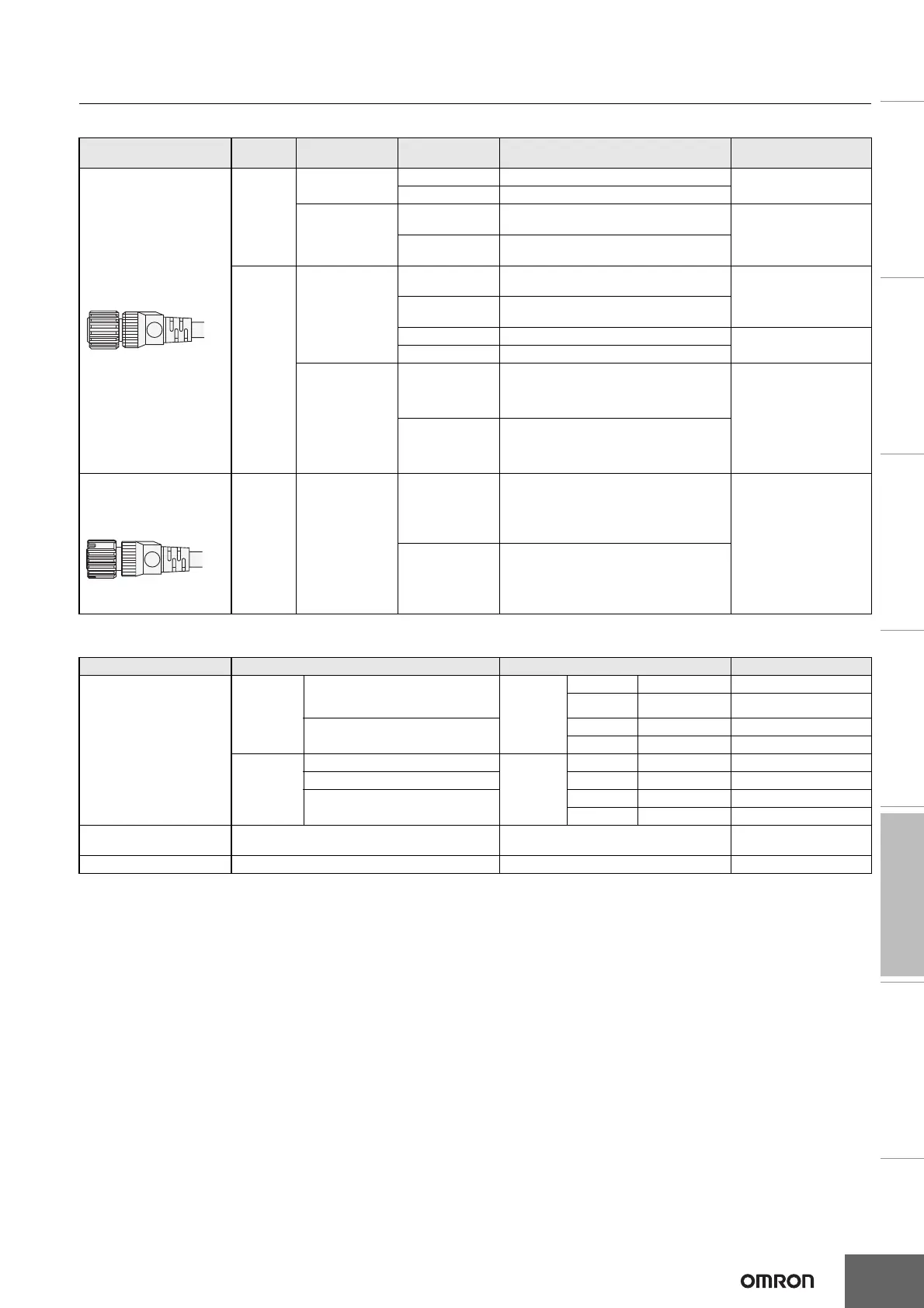

Appearance
AC/DC
type
Number of cable
cores
Cable length (m) Cable model Compatible model
M12 Screw (Straight)
for AC
2
2 XS2F-A421-DB0-F
WL@-@K13A-N
WLG@-@K13A
5 XS2F-A421-GB0-F
4
2 XS2F-A421-D90-F
WL@-@K43A-N
WL@-@-AGJ-N
WLG@-@K43A
WLG@-@-AGJ03
5 XS2F-A421-G90-F
for DC
2
2 XS2F-D421-DD0
WL@-@K13-N
WL@-@-M1J-N
WLG@-@K13
WLG@-@-M1J
5 XS2F-D421-GD0
2 XS2F-D421-DA0-F
WL@-@-M1GJ@-N
WLG@-@-M1GJ@
5 XS2F-D421-GA0-F
4
2 XS2F-D421-D80-F
WL@-@K43-N
WL@-@-M1JB-N
WL@-@-DG
J-N
WL@-@-DK1E
J-N
WLG@-@K43
WLG@-@-M1JB
WLG@-@-DGJ03
WLG@-@-DK1EJ03
5 XS2F-D421-G80-F
M12 Smartclick
(Straight)
for DC 4
2 XS5F-D421-D80-F
WL@-@-M1TJ-N
WL@-@-M1TGJ-N
WL@-@-M1TJB-N
WL@-@-DTGJ-N
WL@-@-DTK1EJ-N
WLG@-@-M1TJ
WLG@-@-M1TGJ
WLG@-@-M1TJB
WLG@-@-DTGJ03
WLG@-@-DTK1EJ03
5 XS5F-D421-G80-F
Type Compatible model Remarks Model
Cover with indicator lamps *1
WL-N
General-purpose models
Long-life models
(Basic models, High-sensitivity Switches)
Indicator *1
LED Color: Red WL-LD-N
Neon lamp Color: Orange WL-LE-N
Spatter Prevention models
LED Color: Red WL-LDS-N
Neon lamp Color: Orange WL-LES-N
WLG
General-purpose models
Indicator
LED Color: Red WL-LD-K *2
Long-life models Neon lamp Color: Orange WL-LE-K *2
Spatter Prevention models
LED Color: Red WL-LDS-K *2
Neon lamp Color: Orange WL-LES-K *2
Terminal Plate WL@-N Change from bipolar to monopolar (contact C).
WL-N
TERMINAL PLATE
Side mounting plate WL@-2N-N --- WLN-P001
To Next Page
