Omron ZFX - External Dimensions

3ZFX

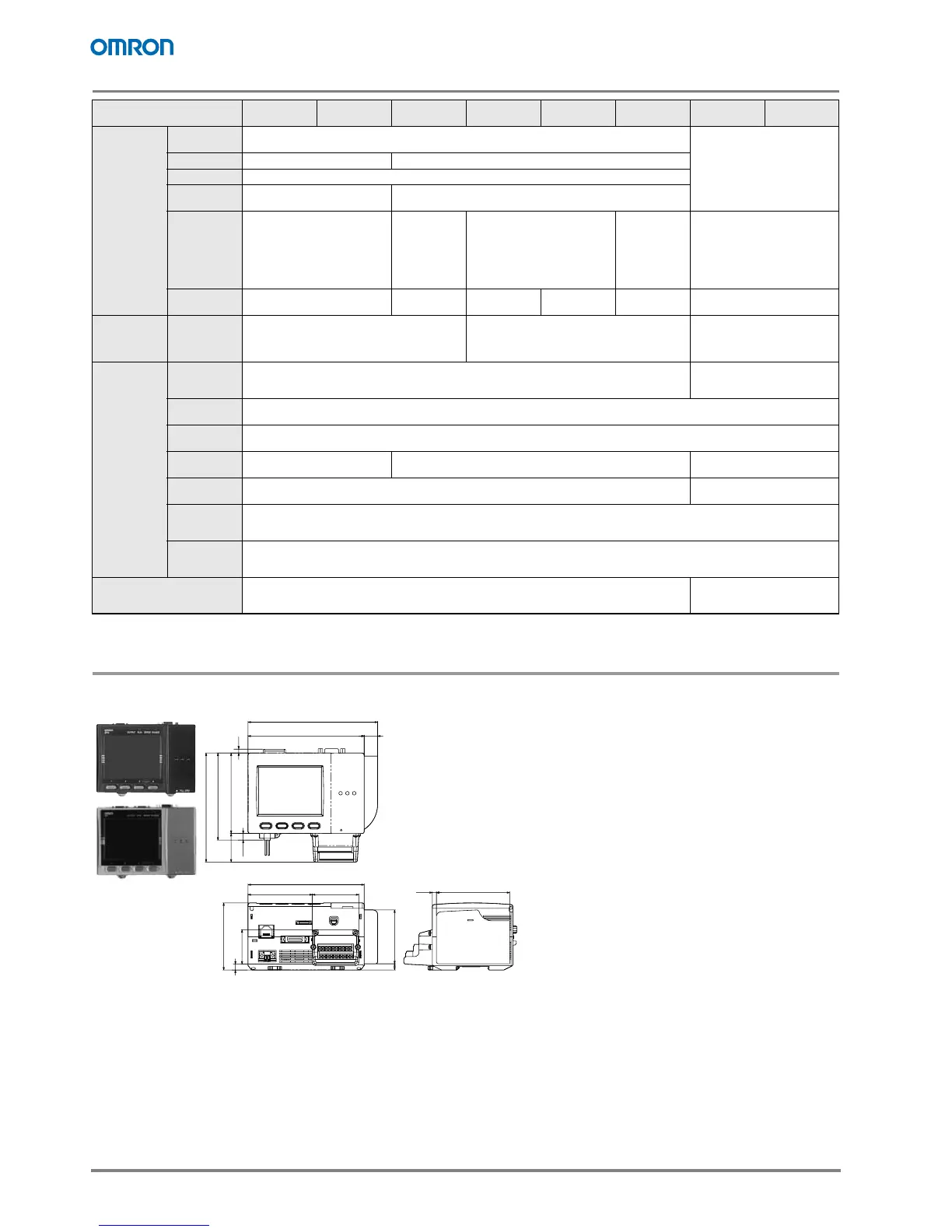

External Dimensions
Controllers (Unit: mm)
ZFX-C_
Lighting Lighting
method
Pulse lighting –
LED Red LED White LED
Type Direct lighting
Guide light Available (center, measurement
region)
Not available
Optional
lighting I/F
Not available Not
available
Available
(ZFV-LT Series)
Not
available
Available
External lighting:
3Z4S-LT Series
Flash Controller:
made by Moritex
Corporation 3Z4S-LT MLEK-
C100E1TSX
Indicator
Class
*1
– Class 1 Class 2 Class 2 Class 1 –
Ratings Current
consumption
Approx. 200 mA Approx. 350 mA (15 VDC: approx.
150 mA, 48 VDC: approx. 200 mA)
(including current consumption when
optional lighting is connected)
Approx. 100 mA
Operation
environment
robustness
Ambient
temperature
range
Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation) Operating: 0 to + 50°C,
Storage: -20 to +65°C
(with no icing or condensation)
Ambient
humidity range
Operating and storage: 35% to 85% (with no condensation)
Ambient
atmosphere
No corrosive gases allowed
Degree of
protection
IP65 (IEC60529) ZFX-SC___: IP65 (IEC60529),
ZFX-SC___W: IP67 (IEC60529)
IP20 (IEC60529)
Dielectric
strength
1000 VAC 50 Hz/60 Hz 1 min 500VAC 50 Hz/60Hz
1 min
Vibration
resistance
(durability)
10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock
resistance
(destructive)
150 m/s
2
3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method Cable built-in type (cable length: 2 m) Connector connection
type (camera cable
ZFX-VS/VSR required)
*1.
Applicable standards IEC60825-1:1993 +A1:1997 +A2:2001, EN60825-1:1994 +A2:2001
Item ZFX-SR10 ZFX-SR50 ZFX-SC10 ZFX-SC50
/SC50W
ZFX-SC90
/SC90W
ZFX-SC150
/SC150W
ZFX-S
(monochrome type)
ZFX-SC
(color type)
15
(90)
32
7.5
145
(130)
122
97.5
4.5
82
72
(130)
52
6.58
38.42
(75)
7
60.23
4
8 ZFX
