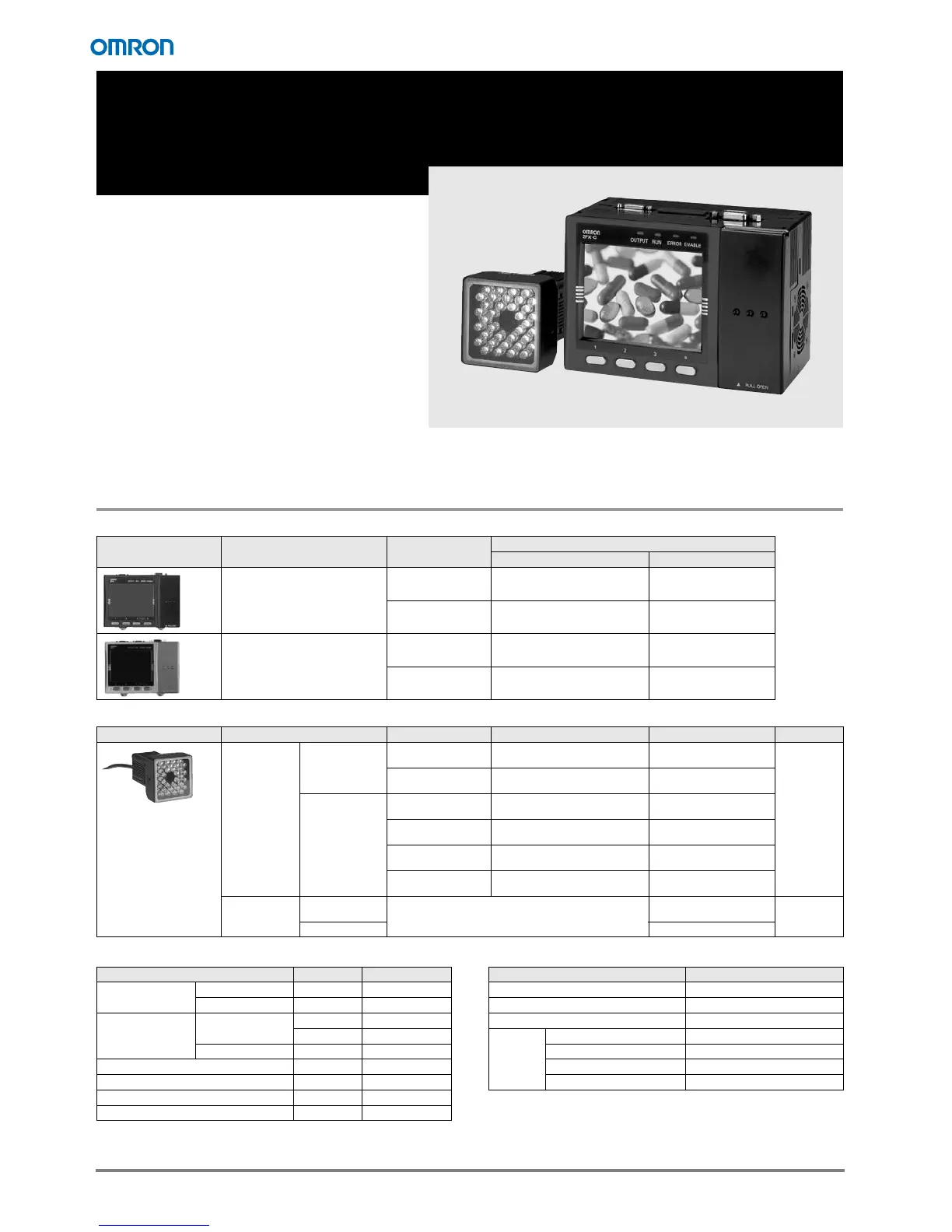

Omron ZFX - Ordering Information

1ZFX
ZFX
Easy Vision – Touch,
Connect & Go
• Easy vision – intuitive teach & go user interfaces
• Live – built-in LCD touch monitors for setup and
immediate feedback
• Communication – centralized setup & inspection via
Ethernet
• Versatile – app. 20 tools, 32/128 inspections per
• Simplicity – auto-adjustment functions for easy image
setup
• Flexible – 1 or 2 camers, colour or monochrome
• Barcode and Datamatrix
Ordering Information
Controllers
Cameras
Cables Accessories
Appearance Power supply Circuit type Model
Code reading models
DC21.6 to 26.4V NPN ZFX-C10 ZFX-C10-CD
PNP ZFX-C15 ZFX-C15-CD
DC21.6 to 26.4V NPN ZFX-C20 ZFX-C20-CD
PNP ZFX-C25 ZFX-C25-CD
Appearance Type Setting distance Sensing area Model Remarks
Camera with
lighting
Monochrome
type
34mm to 49mm 5mm x 4.9mm to
9mm x 8.9mm (variable)
ZFX-SR10 Cable length:
2m
38mm to 194mm 10mm x 9.8mm to
50mm x 49mm (variable)
ZFX-SR50
Color type 34mm to 49mm 5mm x 4.9mm to
9mm x 8.9mm (variable)
ZFX-SC10
34mm to 187mm 10mm x 9.8mm to
50mm x 49mm (variable)
ZFX-SC50
ZFX-SC50W(IP67)
67mm to 142mm 50mm x 49mm to
90mm x 89mm (variable)
ZFX-SC90
ZFX-SC90W(IP67)
115mm to 227mm 90mm x 89mm to
150mm x 148mm (variable)
ZFX-SC150
ZFX-SC150W(IP67)
Camera only Monochrome
type
The CCTV lens is selected according to the range of de-
tection and the installation distance.
ZFX-S –
Color type ZFX-SC
(ZFX-SC50)
Type Cable length Model
Camera
Cable
*1
*1.
It is necessary for ZFX-S and ZFX-SC. ZFX-SR_/SC_ is a cable drawing out
type, it doesn't use it.
Normal type 3m, 8m ZFX-VS
Robot cable type 3m ZFX-VSR
Camera
Extension
Cable
Normal type 3m ZFX-XC3A
8m ZFX-XC8A
Robot cable type 3m ZFX-XC3AR
Parallel I/O Cable 2m, 5m ZFX-VP
RS-232C Cable 2m ZFX-XPT2A
RS-422 Cable 2m ZFX-XPT2B
Monitor Cable 2m, 5m FZ-VM
Type Model
Console ZFX-KP (2m / 5m)
LCD Monitor FZ-M08
Panel Mount Adapters ZFX-XPM
Optional
Lighting
bar lighting ZFV-LTL01
bar double-lighting ZFV-LTL02
bar low-angle lighting ZFV-LTL04
light source for through beam ZFV-LTF01
8 ZFX
