ZX SERIESZX SERIES

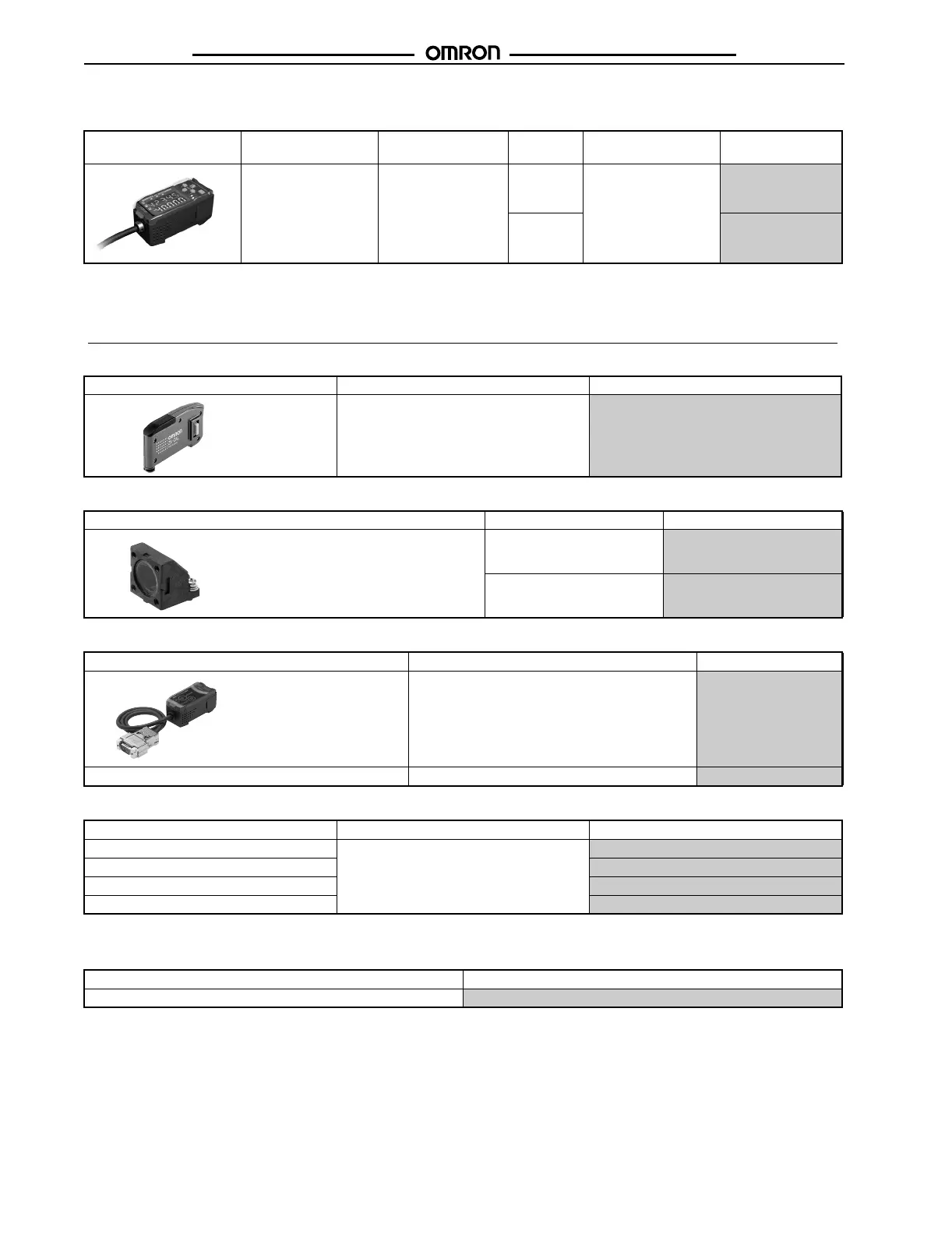

■ Amplifier Units
Use with Reflective or Through-beam sensor heads
Note: Order operation manual for the ZX Amplifier separately (Part number: Z157-E1-01)
Accessories (Order Separately)
■ Calculating Unit For 2-sided Thickness Measurement
■ Side-view Attachments
■ SmartMonitor Sensor Setup Tool for Personal Computer Connection
■ Extension Cables with Connectors on Both Ends
Note: For use with reflective sensors only.
■
Operation Manual for ZX Amplifier
Appearance Power supply Analog output
(Switch selectable)
Output type Discrimination output
function
Part number
12 to 24 VDC 4 to 20 mA,
1 to 5 VDC,
0 to 5 VDC,
±4 VDC,
±5 VDC
NPN High
Pass
Low
ZX-LDA11 2M
(See note)
PNP
ZX-LDA41 2M
(See note)
Appearance Sensor operation Part number
Insert between 2 amplifier units. Use with
reflective sensors with same sensing
distance only.
ZX-CAL
Appearance Applicable Sensor Head Part number
ZX-LT1001/LT005
ZX-XF12
ZX-LT010
ZX-XF22
Appearance Name Part number
ZX-series Communications Interface Unit
ZX-SF11
CD-ROM ZX-series Sensor Setup Software
ZX-SW11E
Cable length Quantity Part number
1 m 1
ZX-XC1A
4 m
ZX-XC4A
8 m
ZX-XC8A
9 m
ZX-XC9A (See Note)
Quantity Part number
1
Z157-E1-01
