on networks N300RE User Manual

Getting Started
11
N300RE WiFi Range Extender

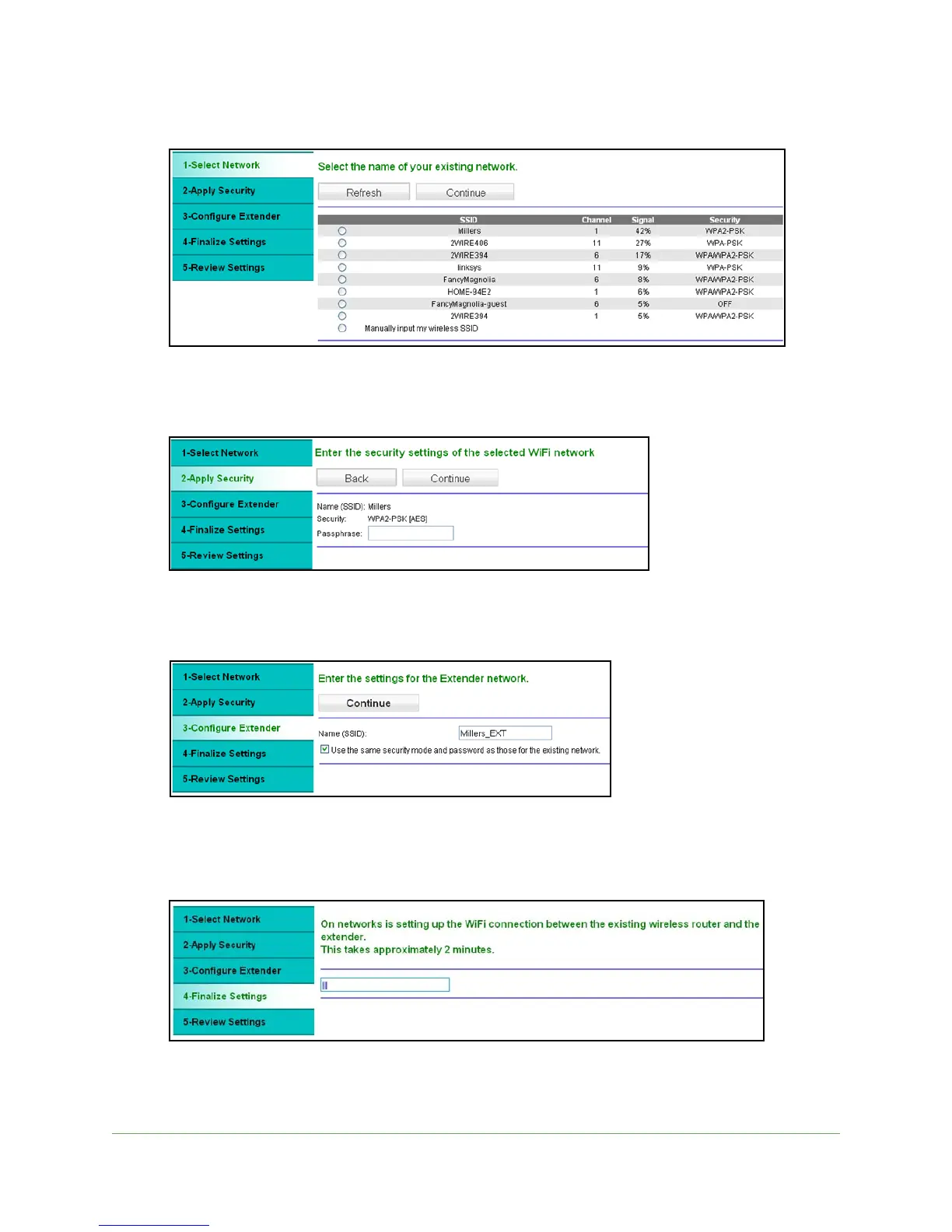

The extender detects wireless networks and displays a list.
2. Either select a network from the list, or select the Manually input my wireless SSID radio
button and type the SSID.
3. Click Co
ntinue.
4. Enter the passphrase for your wireless network and click Continue.
The extender wireless network name (SSID) changes to the name of your wireless
ne
twork name with _EXT added to the end.
5. (Optional) In the Name (SSID) field, type a different name for the extender network.
6. Click Co
ntinue.
The extender connects to your existing WiFi network.

on networks N300RE Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Bandwidth	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	45 mm
Width	74 mm
Height	112 mm
Weight	245 g
