on networks N300RE User Manual

Getting Started
12
N300RE WiFi Range Extender
When this happens, your computer is automatically disconnected from the extender WiFi
network.

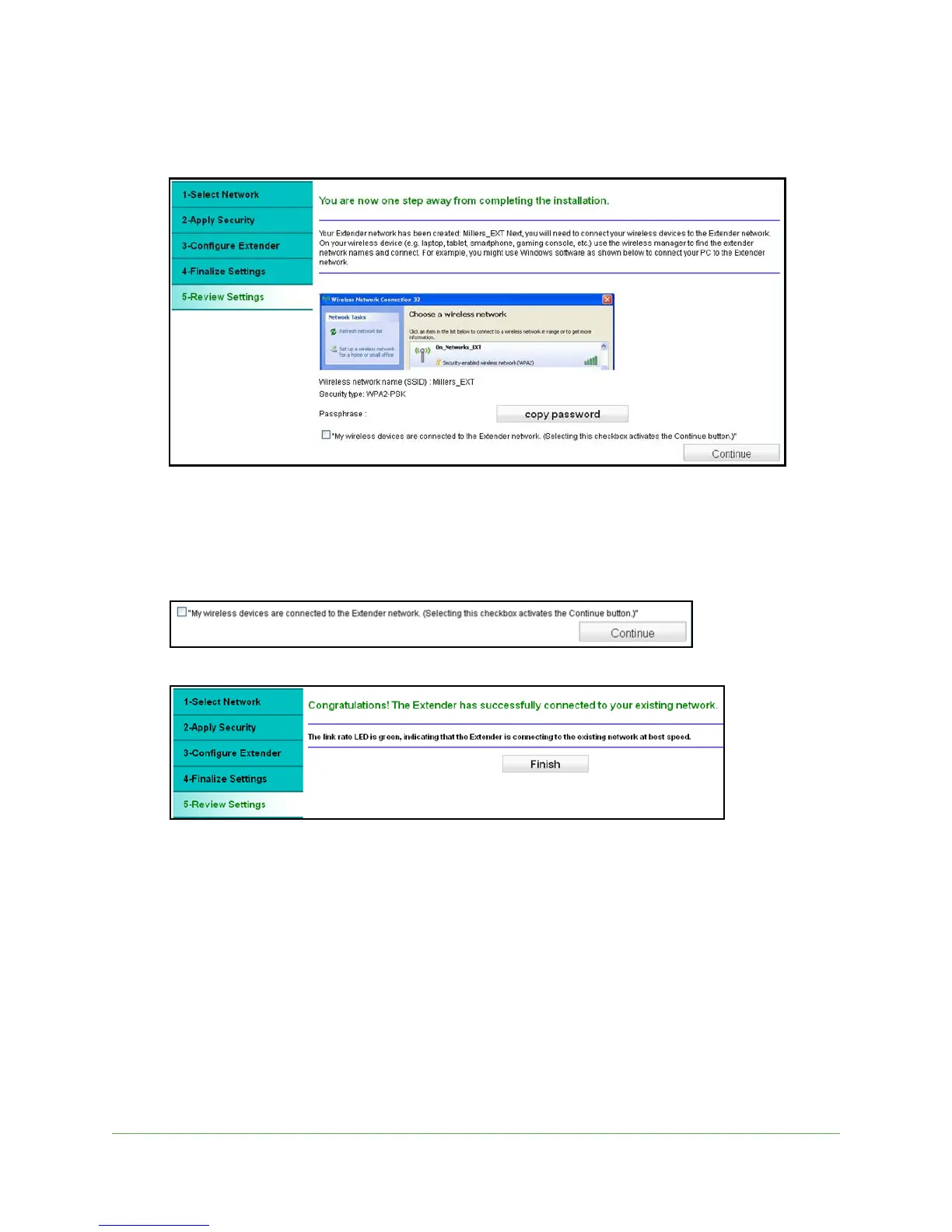

7. (Optional) To use the same password to access the extender network that you use for your
network, click the copy password button.
8. With the
software that you use to manage your wireless connections, join the extender
wireless network.
9. Sele
ct the check box to confirm that you have connected to the extender network.
10. Click Continue.

on networks N300RE Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Bandwidth	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	45 mm
Width	74 mm
Height	112 mm
Weight	245 g
