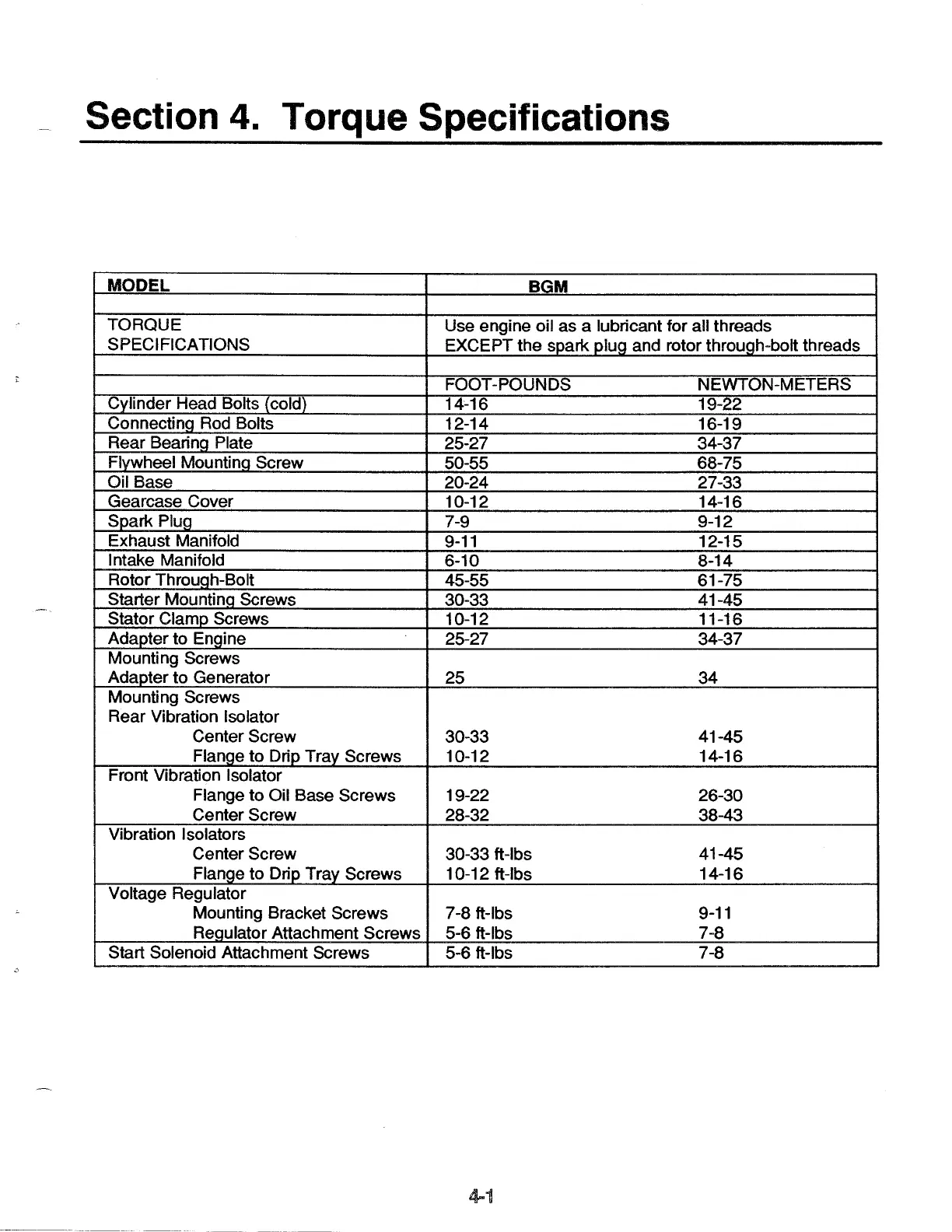

Section 4. Torque Specifications
MODEL
BGM
TORQUE
Use engine oil as a lubricant for all threads
SPECIFICATIONS
EXCEPT the spark plug and rotor through-bolt threads
FOOT-POUNDS
NEWTON-METERS
Cylinder Head Bolts (cold)
14'-16
19-22
ConnectinQ Rod Bolts
12-14
16-19
Rear Bearing Plate
25-27 34-37
Flywheel MountinQ Screw
50-55 68-75
Oil Base
20-24 27-33
Gearcase Cover
10-12
14-16
Spark Pluo
7-9 9-12
Exhaust Manifold
9-11
12-15
Intake Manifold
6-10 8-14
Rotor Throuah-Bolt
45-55 61-75
Starter Mountino Screws
30-33 41-45
Stator Clamp Screws
10-12 11-16
Adapter to Engine
25-27
34-37
Mounting Screws
Adapter to Generator
25 34
Mounting Screws
Rear Vibration Isolator
Center Screw
30-33 41-45
Flange to Drip Tray Screws
10-12 14-16
Front Vibration Isolator
Flange to Oil Base Screws
19-22
26-30
Center Screw
28-32 38-43
Vibration Isolators
Center Screw
30-33 ft-lbs
41-45
Flange to Drip Tray Screws
10-12 ft-lbs
14-16
Voltage Regulator
Mounting Bracket Screws 7-8 ft-lbs
9-11
Regulator Attachment Screws
5-6 ft-lbs
7-8
Start Solenoid Attachment Screws 5-6 ft-lbs
7-8
