BATTERY, STARTER, ENGINE
AND GENERATOR WIRING
HARNESS CONNECTOR (P1)
FUSE (F1)
START/STOP
SWITCH (S1)

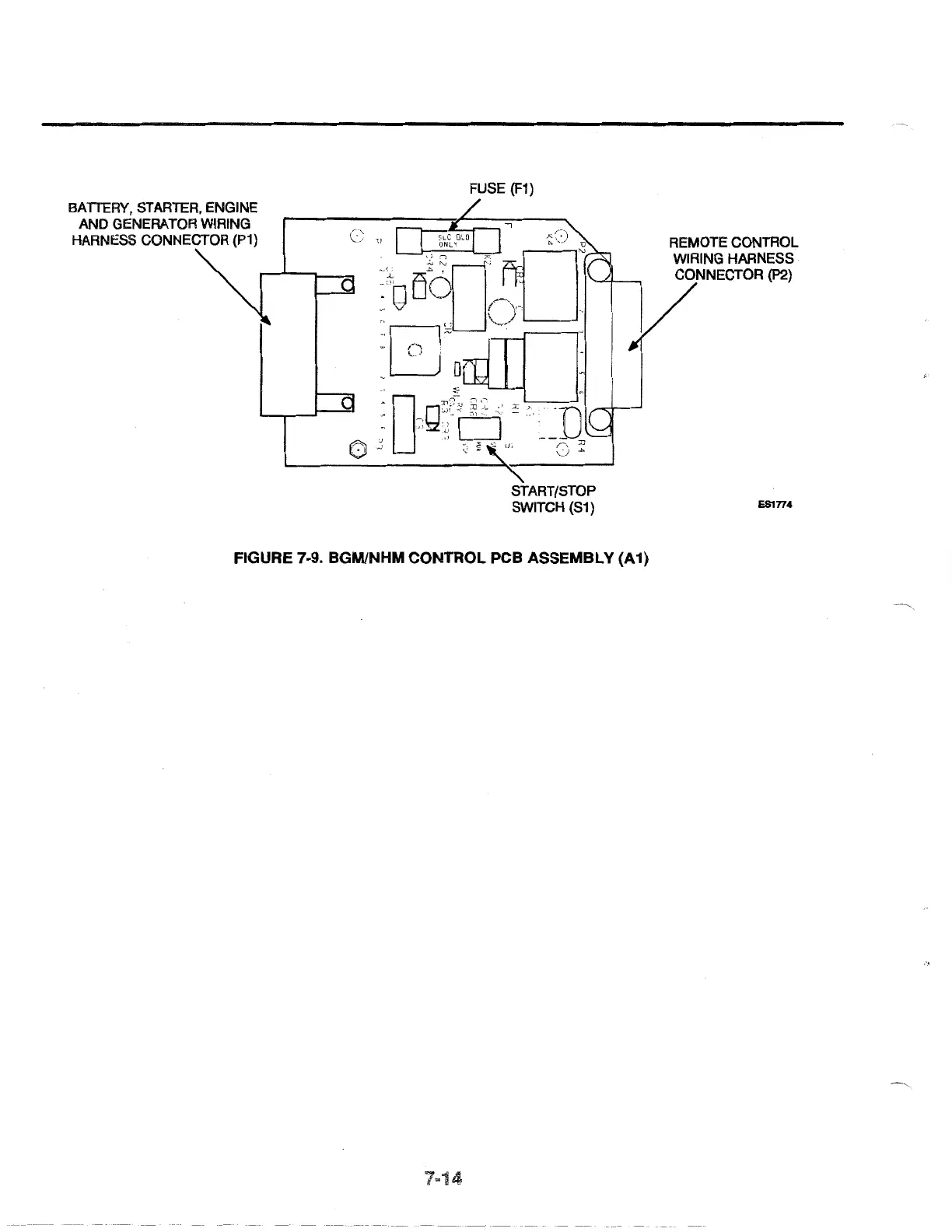

FIGURE 7-9. BGM/NHM CONTROL PCB ASSEMBLY (A1)
REMOTE CONTROL
WIRING HARNESS
CONNECTOR (P2)
ES1774
