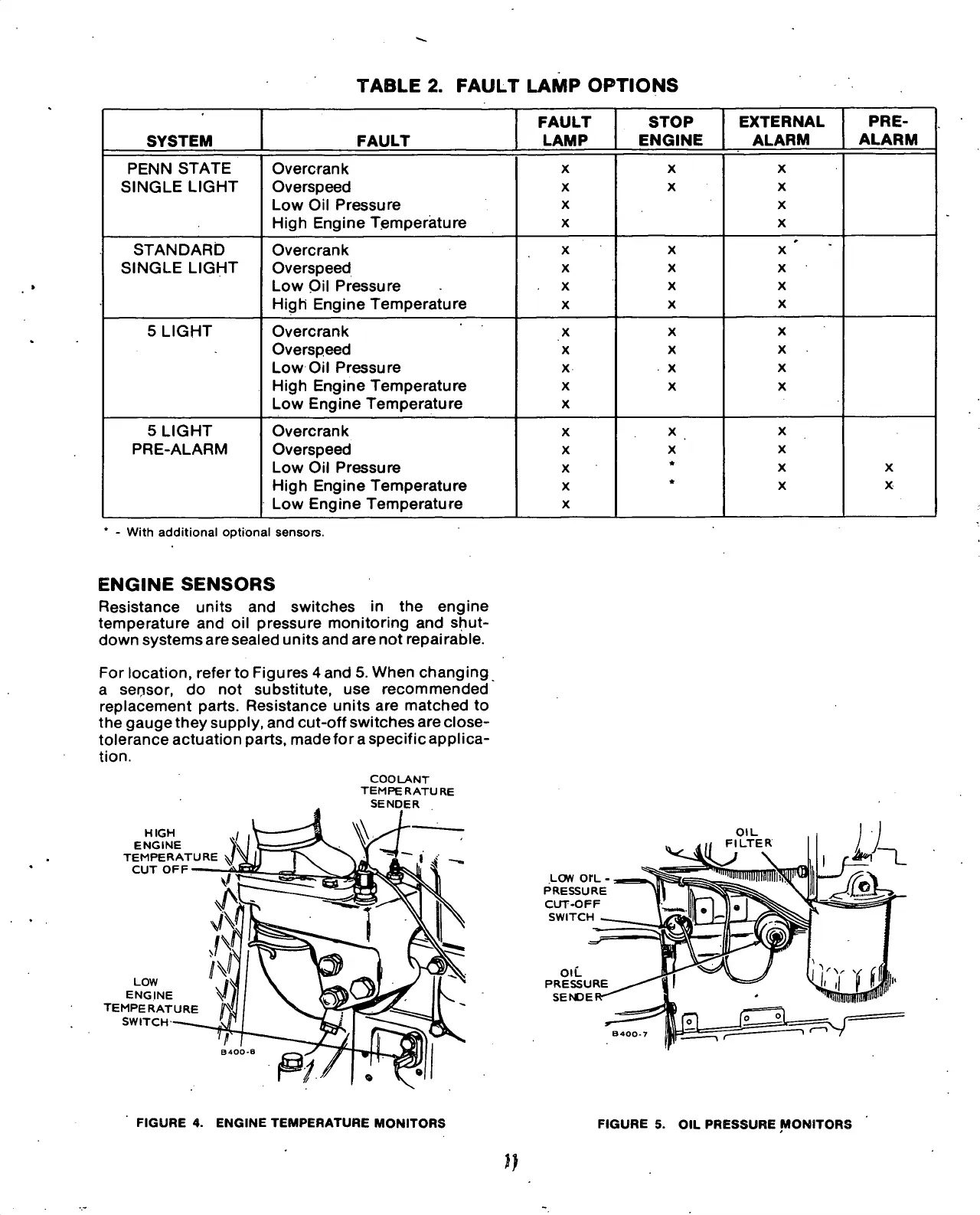

TABLE 2. FAULT LAMP OPTIONS
FAULT
STOP
EXTERNAL PRE-
SYSTEM FAULT
LAMP
ENGINE
ALARM
ALARM
PENN STATE
Overcrank
X
X X
SINGLE LIGHT
Overspeed
X
X
X
Low Oil Pressure
X
X
High Engine Temperature
X X
STANDARD Overcrank
X
X X '
SINGLE LIGHT Overspeed
X
X
X
Low Oil Pressure
X
X X
High EngineTemperature X
X
X
5 LIGHT
Overcrank
X
X
X
Overspeed
X
X
X
Low Oil Pressure
X X
X
High Engine Temperature
X
X X
Low Engine Temperature
X
5 LIGHT Overcrank X
X
X
PRE-ALARM
Overspeed
X
X
X
Low Oil Pressure
X *
X X
High Engine Temperature
X
*
X
X
Low Engine Temperature
X
- With additional optional sensors.
ENGINE SENSORS
Resistance units and switches in the engine
temperature and oil pressure monitoring and shut-
down systems are sealed units and are not repairable.
For location, referto Figures 4 and 5. When changing
a sensor, do not substitute, use recommended
replacement parts. Resistance units are matched to
the gauge they supply, and cut-off switches are close-
tolerance actuation parts, made for a specific applica-
tion.
COOLANT
TEMPERATURE
SENDER
HIGH
ENGINE
TEMPERATURE
CUT OFF ik
LOW
ENGINE
TEMPERATURE
SWITCH
OIL
PRESSURE
SENDE
FIGURE 4. ENGINE TEMPERATURE MONITORS
FIGURE 5. OIL PRESSURE MONITORS
