Onan DYC Series - Page 14

THLMSLE
(SEE DETAIL)
DUCT
SWEEPING ELBOW
EXHAUST LINE
TO MUFFLER
AUTOMATIC
LOAD TRANSFER
SWITCH
IS
FLEXIBLE CONDUIT;
SECTION
VIBRATIO
ISOLATORS
T FUEL LINE
CONCRETE BASE
FLOW OF HEATED AIR AND
COOLING AIR MAY BE
CONTROLLED BY AUTOMATICALLY
OPERATED SHUTTERS

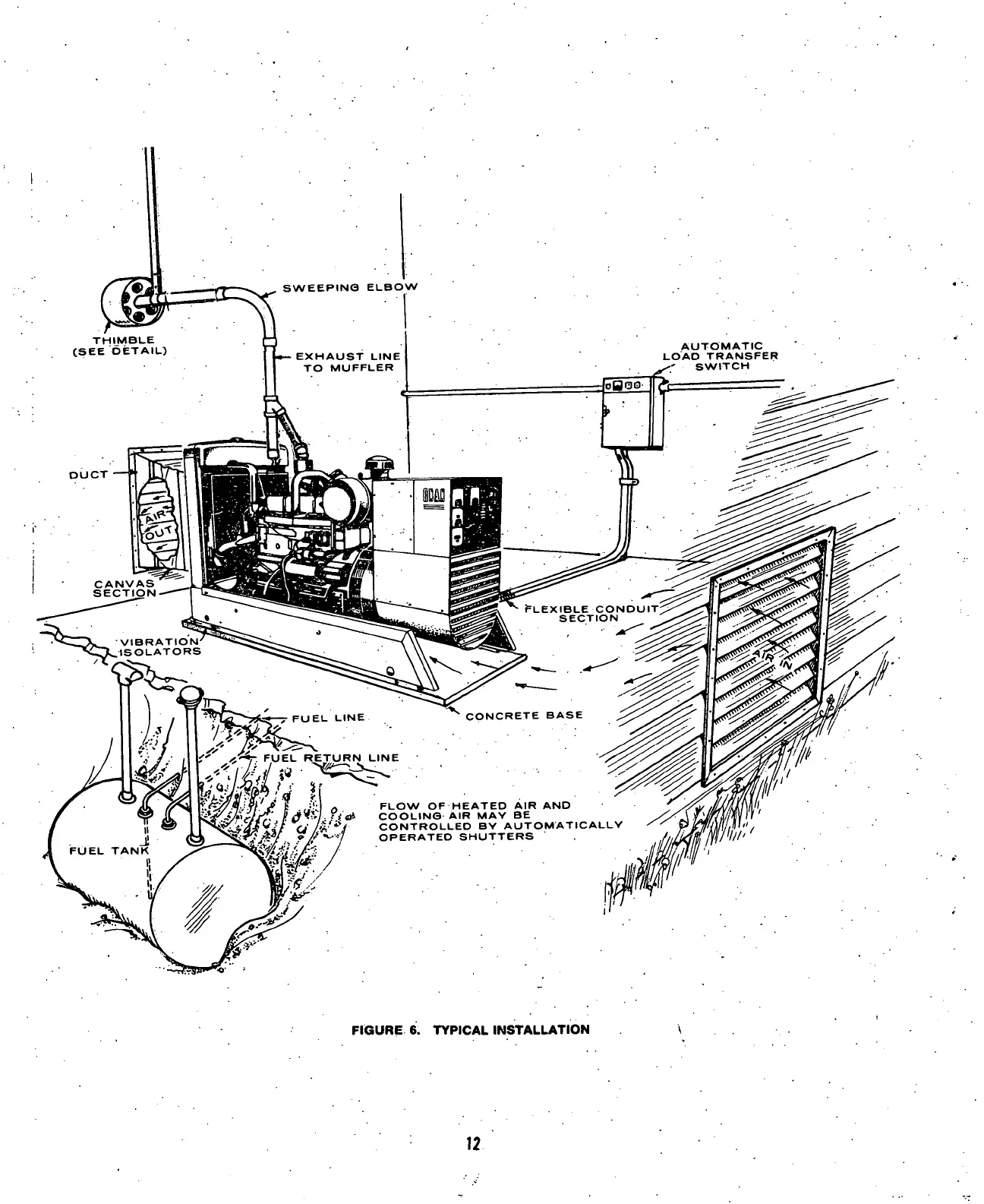

FIGURE 6. TYPICAL INSTALLATION
12
