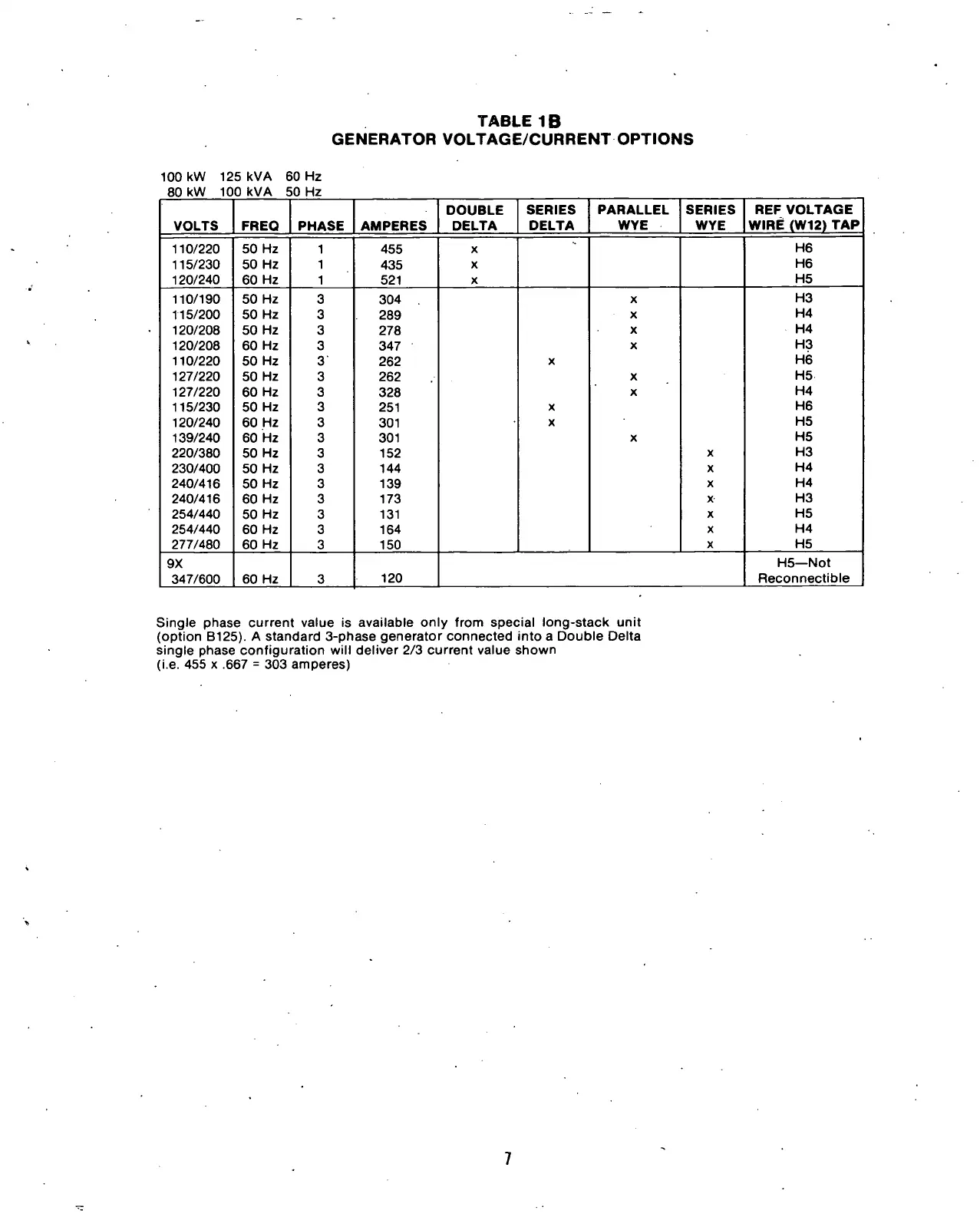

TABLE 1B
GENERATOR VOLTAGE/CURRENT OPTIONS
100 kW
80 kW
125 kVA 60 Hz
100 kVA 50 Hz
DOUBLE
SERIES PARALLEL SERIES
REF VOLTAGE
VOLTS FREQ PHASE AMPERES DELTA
DELTA
WYE
WYE
WIRE (W12) TAP
110/220 50 Hz 1
455
X
-
H6
115/230
50 Hz
1
435
X
H6
120/240
60 Hz 1 521
X
H5
110/190 50 Hz 3 304 .
X
H3
115/200 50 Hz 3
289
X
H4
120/208 50 Hz 3
278
X
H4
120/208 60 Hz 3
347
X
H3
110/220 50 Hz 3
262
X
H6
127/220 50 Hz 3
262
X
H5
127/220 60 Hz 3
328
X
H4
115/230 50 Hz
3
251
X
H6
120/240 60 Hz
3
301
X
H5
139/240 60 Hz
3
301
X H5
220/380 50 Hz 3 152
X H3
230/400 50 Hz
3 144
X
H4
240/416 50 Hz 3 139
X
H4
240/416
60 Hz
3 173
X
H3
254/440
50 Hz 3 131
X H5
254/440 60 Hz 3
164
X H4
277/480
60 Hz 3 150
X
H5
9X
H5—Not
347/600 60 Hz 3
120
Reconnectible
Single phase current value is available only from special long-stack unit
(option B125). A standard 3-phase generator connected into a Double Delta
single phase configuration will deliver 2/3 current value shown
(i.e. 455 x .667 = 303 amperes)
