Oneida Air Systems Mini-Gorilla - System Dimensions; Dimensional Drawings and Measurements

120V / 16A Mini-Gorilla
#XXPM010100H
Use NEMA 5-20
Receptacles
Use NEMA 6-20
Receptacles
220V / 8A Mini-Gorilla
#XXPM010100H220
e Mini-Gorilla requires a 20 Amp outlet receptacle
to be installed by a licensed electrician. See below outlet
receptacles needed based on the voltage of your unit.
7
oneida-air.com
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.

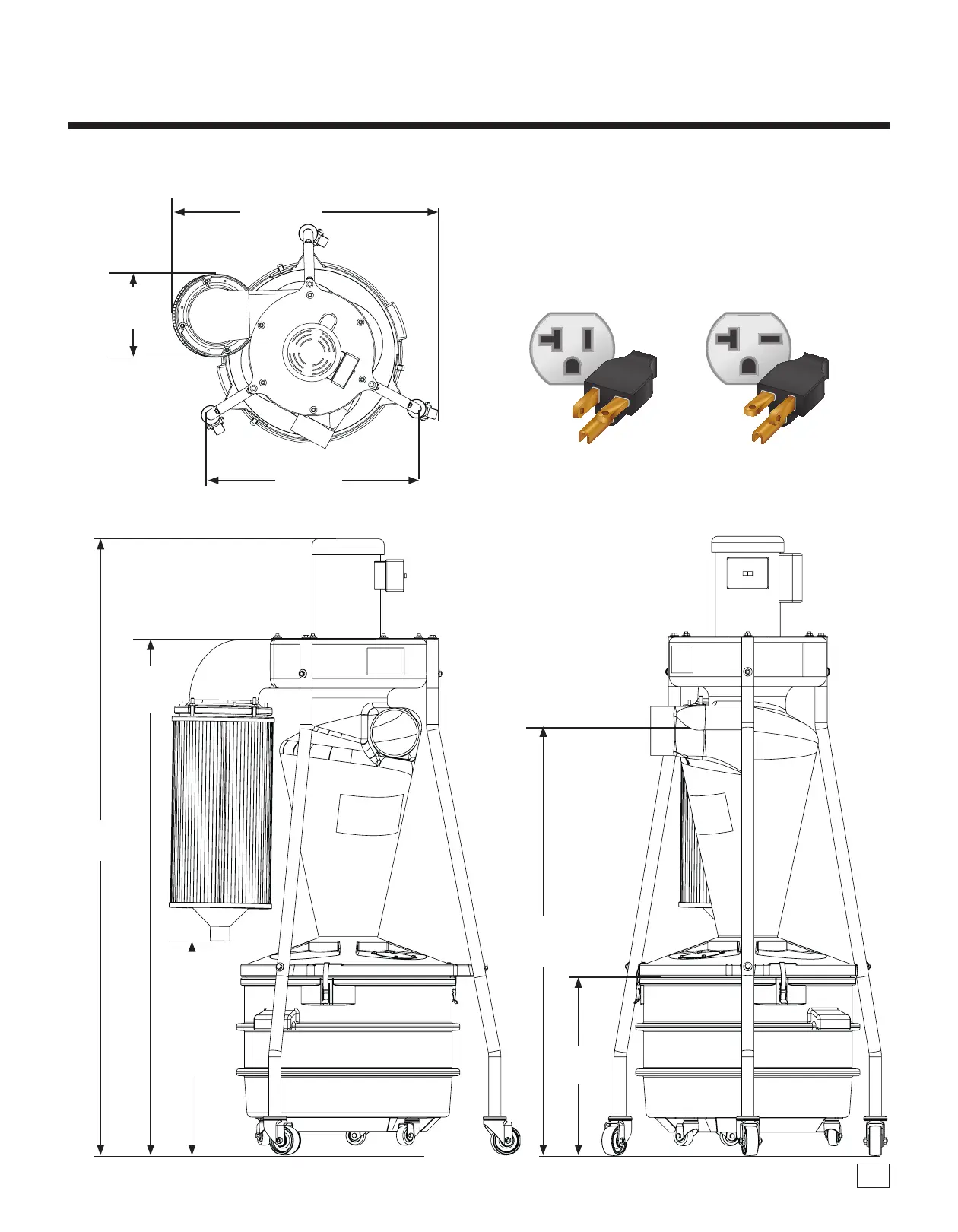

System Dimensions
Top View
10.5"
457 mm
28"
711 mm
43"
1,092 mm
18"
457.2 mm
24.75"
629 mm
52.25"
1,327 mm
23"
584 mm
64.25"
1,632 mm
