Onicon F-1110 Owner's Manual

NOTES:
8-22-00
0066-1

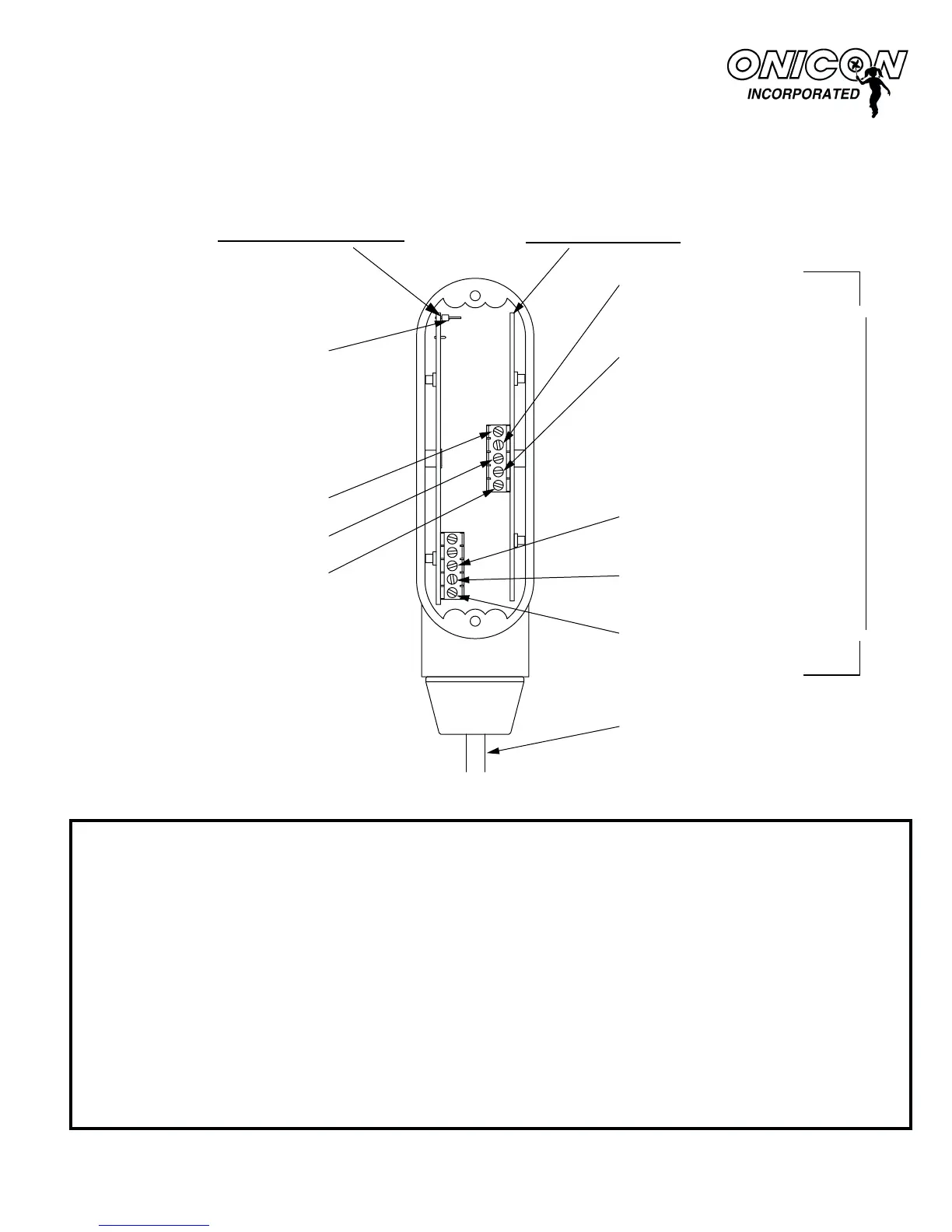

WIRING DIAGRAM
INTERNAL CONNECTIONS FOR
FREQUENCY OUTPUT
FLOW METERS
MODELS F-1100 / F-1200 / F-1300
SENSING BOARD
TEST SIGNAL INPUT
COMMON GROUND
(BLACK WIRE)
FREQUENCY OUTPUT
(GREEN WIRE)
+24V AC/DC SUPPLY
(RED WIRE)
BOTTOM TURBINE:
F-1200 ONLY
(ORANGE WIRE)
FREQUENCY BOARD
TOP TURBINE:
F-1200 ONLY
(WHITE WIRE)
EXTERNAL CABLE CONNECTIONS
GREEN WIRE (BOARD TO BOARD)
RED WIRE (BOARD TO BOARD)
BLACK WIRE (BOARD TO BOARD)
EXTERNAL CABLE
NOTE: INTERNAL CONNECTIONS
OMITTED FOR CLARITY
For use with serial numbers
115692 and later
