1500 North Belcher Road, Clearwater, FL 33765 • Tel (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com

System-10-LON Network Interface Installation Guide 07/13 - 0654-4 / 16751 Page 9

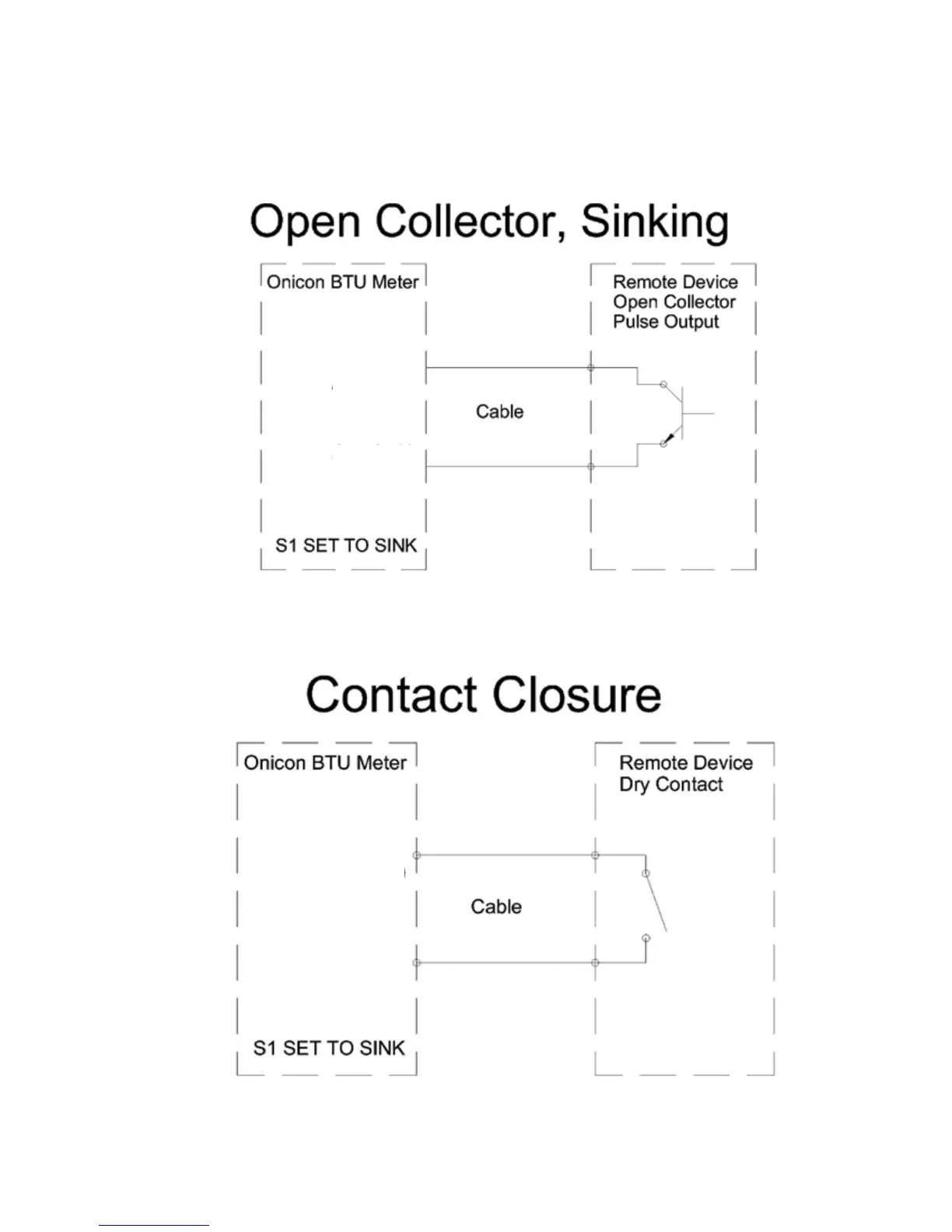

Open Collector Sinking or Dry Contact:

This type of output refers to an open collector switch congured in a current sinking

arrangement or a dry contact switch (see Fig. 4 and 5). Set the selector switch, S1 to Sink.

In either case, the switch must be rated for at least 20mA at 20 VDC.

Fig. 4

Fig. 5

Di3 In (+)

Di3 In (-)

Di3 In (+)

Di3 In (-)
