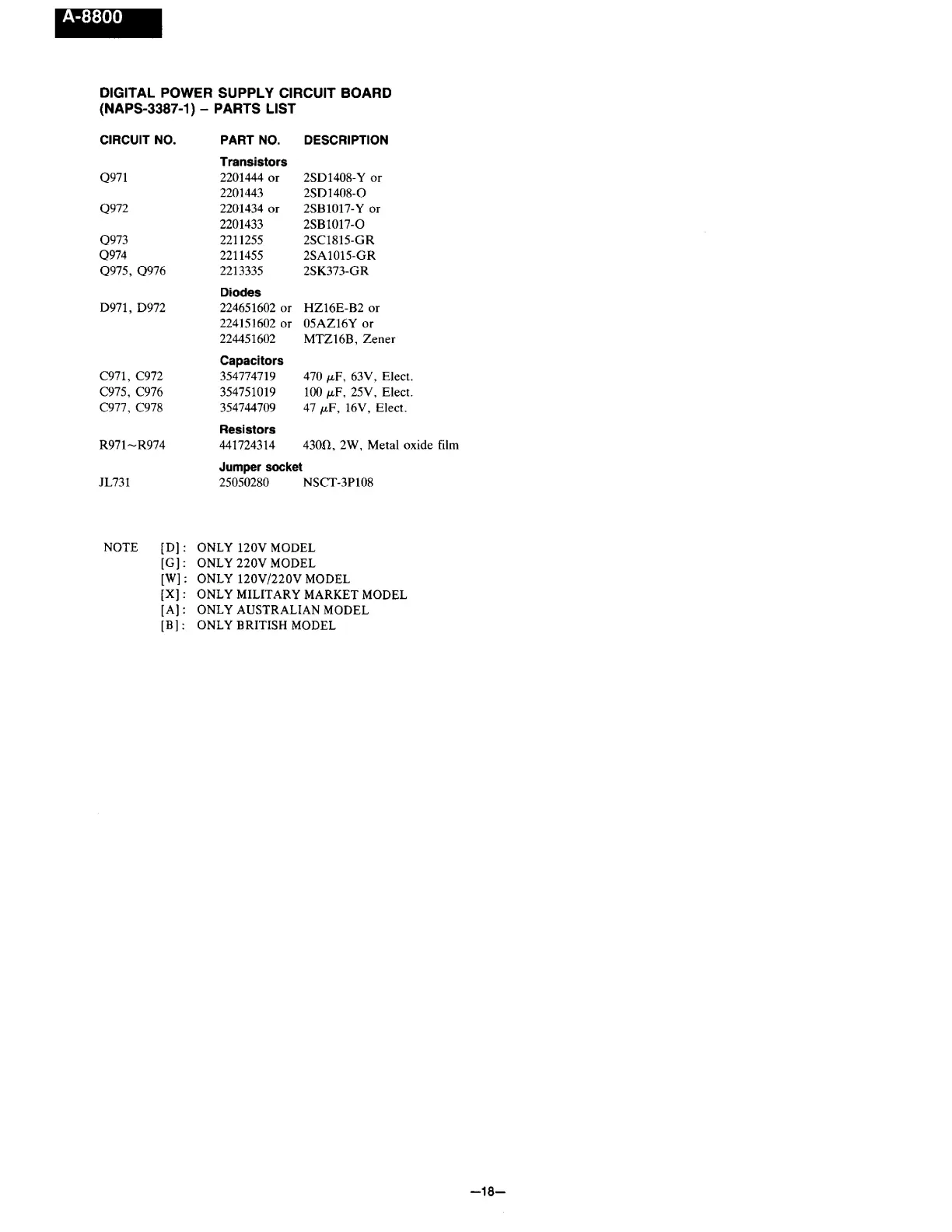

Onkyo A-8800

DIGITAL POWER SUPPLY CIRCUIT BOARD
(NAPS-3387-1) - PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
Transistors
Q971 2201444 or 2SD1408-Y or
2201443 2S8D1408-O
Q972 2201434 or 2SB1017-Y or
2201433 28B1017-O
Q973 2211255 28C1815-GR
Q974 2211455 28A1015-GR
Q975, Q976 2213335 28K373-GR
Diodes
D971, D972 224651602 or HZ16E-B2 or
224151602 or OSAZI16Y or
224451602 MTZI16B, Zener
Capacitors
C971, C972 354774719 470 2F, 63V, Elect.
C975, C976 354751019 100 nF, 25V, Elect.
C977, C978 354744709 47 pF, 16V, Elect.
Resistors
R971~R974 441724314 4300, 2W, Metal oxide film
Jumper socket
JL731 25050280 NSCT-3P108
NOTE [D]: ONLY 120V MODEL
[G]: ONLY 220V MODEL
[W]: ONLY 120V/220V MODEL
[X]: ONLY MILITARY MARKET MODEL
[A]: ONLY AUSTRALIAN MODEL
[B]: ONLY BRITISH MODEL
