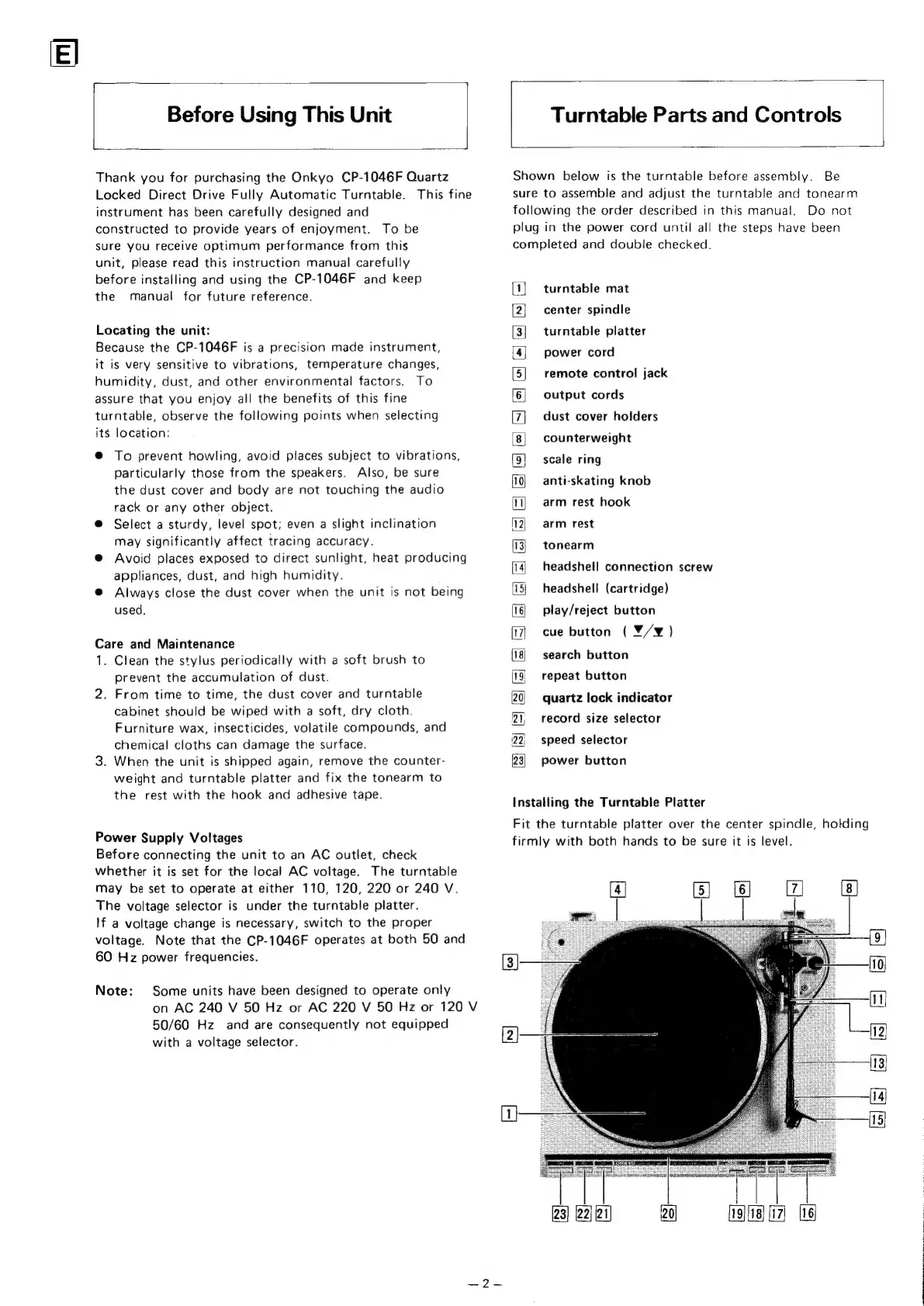

Onkyo CP-1046F User Manual

Before Using This Unit
Turntable Parts and Controls
Thank you for purchasing the Onkyo CP-1046F Quartz
Locked Direct Drive Fully Automatic Turntable. This fine
instrument has been carefully designed and
constructed to provide years of enjoyment. To be
sure you receive optimum performance from this
unit, please read this instruction manual carefully
before installing and using the CP-1046F and keep
the manual for future reference.
Locating the unit:
Because the CP-1046F is a precision made instrument,
it is very sensitive to vibrations, temperature changes,
humidity, dust, and other environmental factors. To
assure that you enjoy all the benefits of this fine
turntable, observe the following points when selecting
its location:
@ To prevent howling, avoid places subject to vibrations,
particularly those from the speakers. Also, be sure
the dust cover and body are not touching the audio
rack or any other object.
@ Select a sturdy, level spot; even a slight inclination
may significantly affect tracing accuracy.
@ Avoid places exposed to direct sunlight, heat producing
appliances, dust, and high humidity.
@ Always close the dust cover when the unit is not being
used.
Care and Maintenance
1. Clean the stylus periodically with a soft brush to
prevent the accumulation of dust.
2. From time to time, the dust cover and turntable
cabinet should be wiped with a soft, dry cloth.
Furniture wax, insecticides, volatile compounds, and
chemical cloths can damage the surface.
3. When the unit is shipped again, remove the counter-
weight and turntable platter and fix the tonearm to
the rest with the hook and adhesive tape.
Power Supply Voltages
Before connecting the unit to an AC outlet, check
whether it is set for the local AC voltage. The turntable
may be set to operate at either 110, 120, 220 or 240 V.
The voltage selector is under the turntable platter.
If a voltage change is necessary, switch to the proper
voltage. Note that the CP-1046F operates at both 50 and
60 Hz power frequencies.
Some units have been designed to operate only
on AC 240 V 50 Hz or AC 220 V 50 Hz or 120 V
50/60 Hz and are consequently not equipped
with a voltage selector.
Note:
Shown below is the turntable before assembly. Be
sure to assemble and adjust the turntable and tonearm
following the order described in this manual. Do not
plug in the power cord until all the steps have been
completed and double checked.
[1] turntable mat
[2] center spindle
[3] turntable platter
[4] power cord
[5] remote control jack
[6] output cords
7] dust cover holders
[8] counterweight
[9] scale ring
10] anti-skating knob
[ti] arm rest hook
[12] arm rest
[73] tonearm
(14) headshell connection screw
(15} headshell (cartridge)
(16} play/reject button
[17] cue button ( ¥/y¥ )
(18) search button
(19. repeat button
20} quartz lock indicator
21, record size selector
22, speed selector
power button
Installing the Turntable Platter
Fit the turntable platter over the center spindle, holding
firmly with both hands to be sure it is level.
+ [5]
|
nee
[S} [s]
is]
w
|
| [=]
on
;
|
