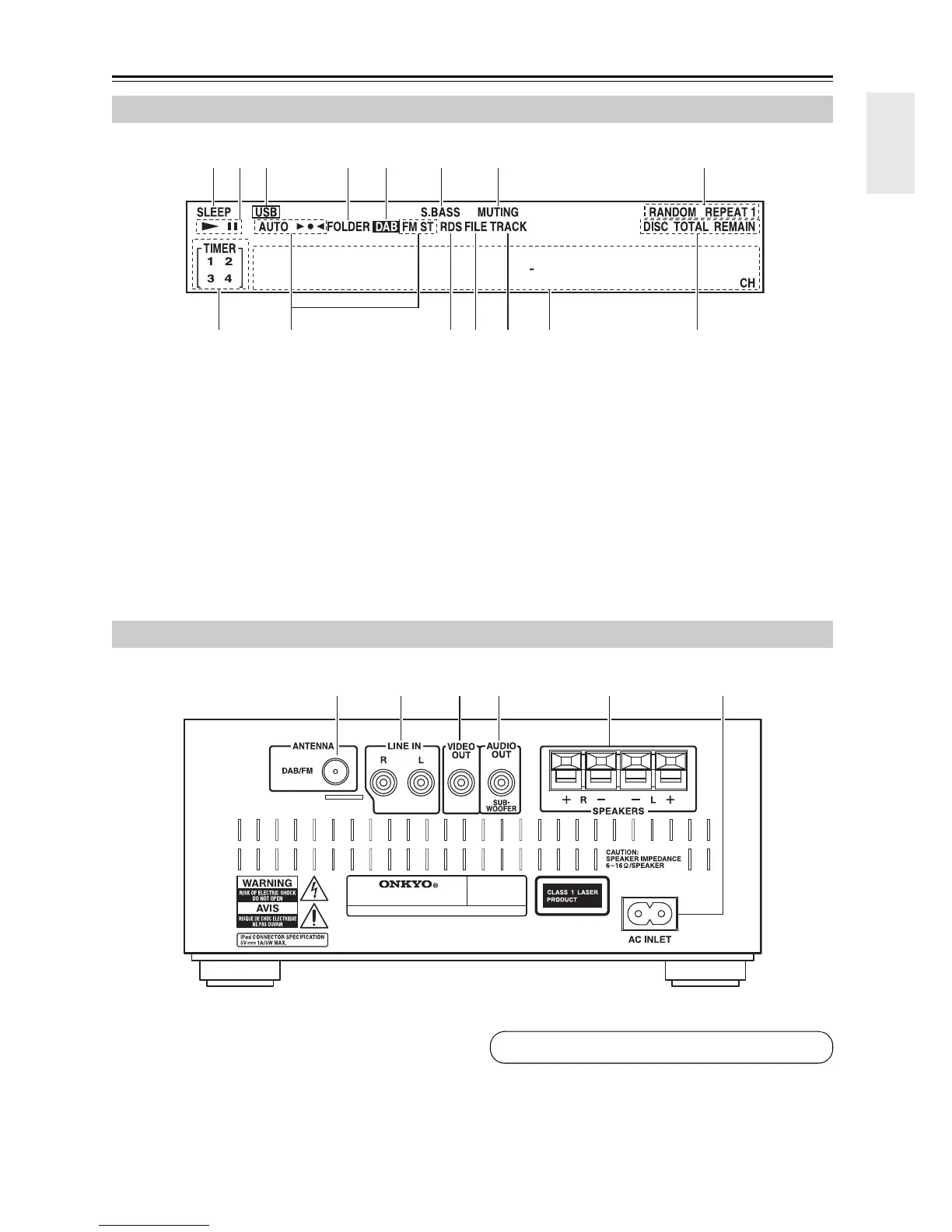

Onkyo CR-245DAB - Receiver Overview; Display Indicators; Rear Panel Connections

En-9
Getting to Know the CD receiver—Continued
a
SLEEP indicator
b Play  and Pause  indicators
c USB indicator
d FOLDER indicator
e DAB indicator
f S.BASS indicator
g MUTING indicator
h Playback mode indicators
i TIMER indicators
j Tuning indicators
k RDS indicator
l FILE indicator
m TRACK indicator
n Message area
o DISC, TOTAL, and REMAIN indicators
a DAB/FM ANTENNA jack
b LINE IN jack
c VIDEO OUT jack
d AUDIO OUT (SUBWOOFER) jack
e SPEAKERS terminals
f AC INLET
Display
ˆˆˆ„„ˆˆ…„ˆˆ„„ˆ„„ˆˆ…‡ˆˆ
a c 65 7 8b 4
9nlkm oj
Rear Panel
a b c d e f
See pages 14 to 16 for connection information.
