STANDBY indicator
STANDBY/ON button
When STANDBY/ON button is pressed to ON, the DVD Changer
Receiver turns on. The STANDBY indicator turns off and the
display lights up. Pressing the button again returns the DVD
Changer Receiver to the standby state. This state turns off the
display and disables control functions.
Remote control sensor
Point the remote controller toward the remote control sensor to
operate the DVD Changer Receiver.
Display
INPUT buttons
Press to select the input source.
MASTER VOLUME dial
The MASTER VOLUME dial is used to control the volume level.
DISC 1, DISC 2, DISC 3, DISC 4, DISC 5 buttons
Press to select a disc in the changer.
Disc tray
When loading a disc, place it on the disc tray with its label facing
up.
TUNING/PRESET buttons
When playing discs, press to skip back or forward to consecutive
chapters/tracks. When listening to the radio, press to change the
tuner frequency or select preset stations.
PRESET MEMORY/DISC SKIP button
When listening to the radio, press to assign the radio station that is
currently tuned in to a preset channel or delete a previously preset
station. When playing discs, press to select a disc. When the DISC
SKIP button is pressed while the Disc tray is open, the tray simply
rotates.
SURROUND button
Press to select a surround mode.
button
Press to open and close the disc tray.
button
Press to stop playback. Pressing once enables playback to
resume from a point shortly before the location where it was
stopped. Pressing twice causes the disc to return to the
beginning of the disc when playback starts again.
PHONES jack
This is a standard stereo jack for connecting stereo
headphones.
button
Press to start or pause playback.
15
PANEL VIEWS-1

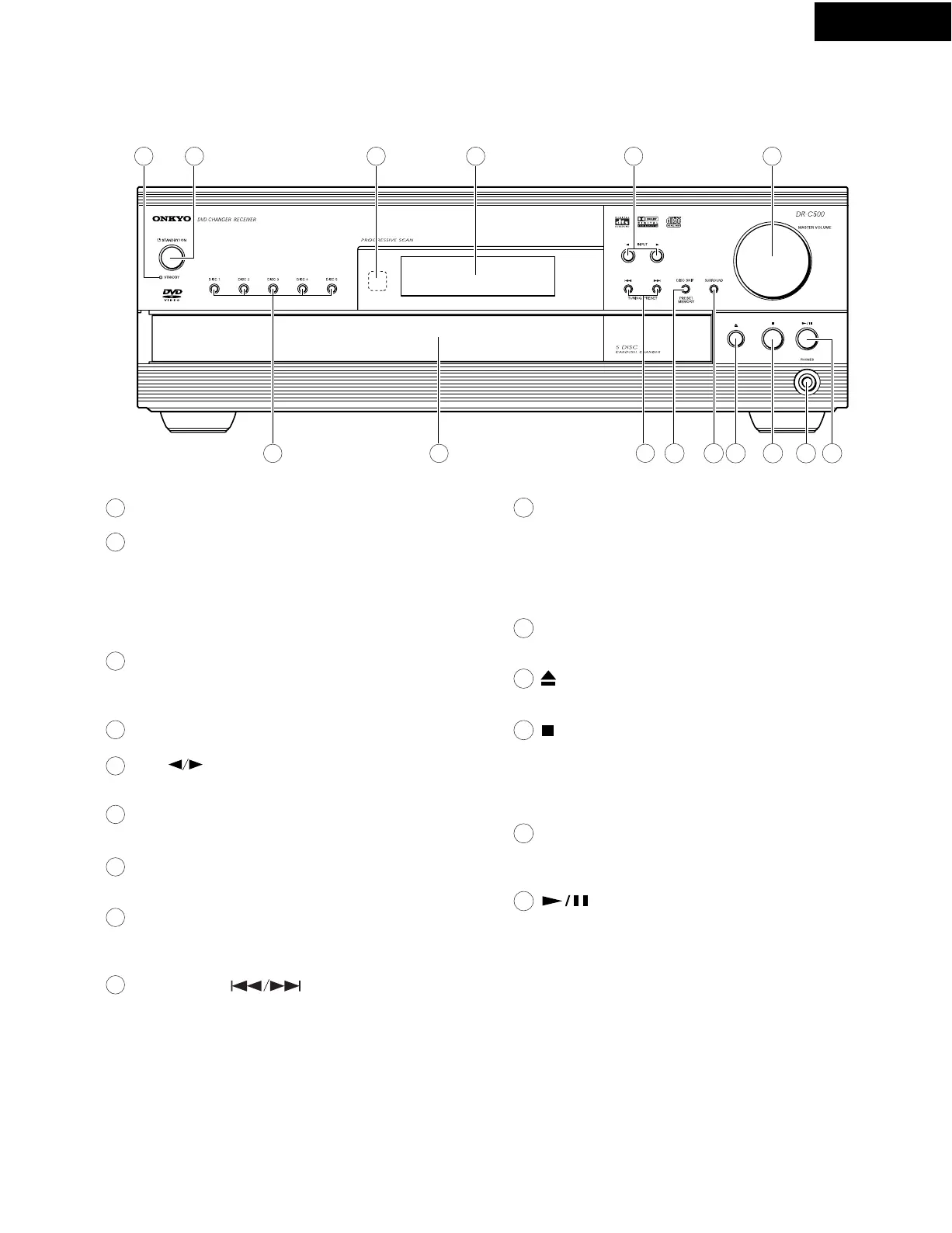

FRONT PANEL
