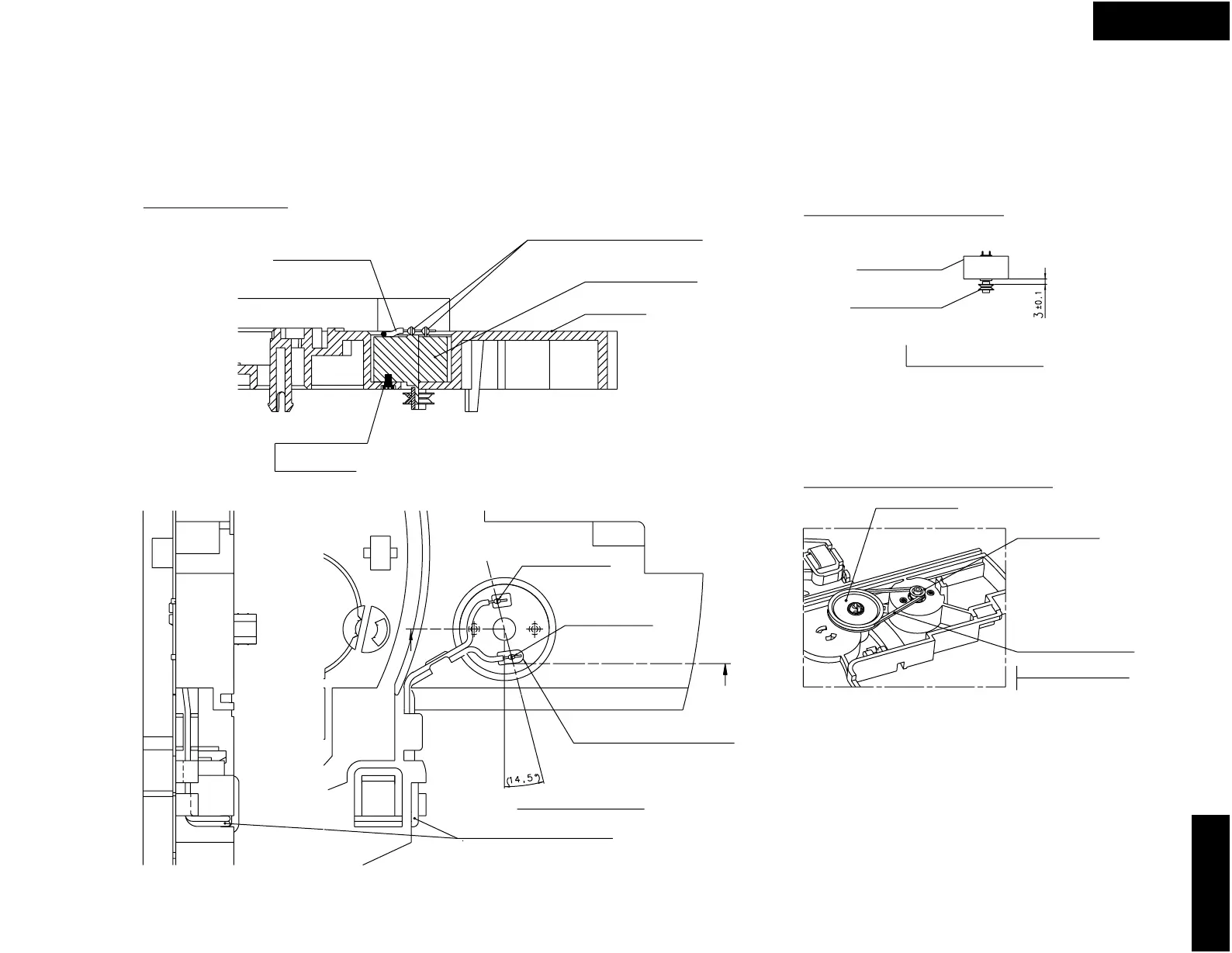

DISASSEMBLING PROCEDURES (DVD MECHANISM)-3
NOTES IN RE-ASSEMBLING PROCEDURES OF DWG ASY DRAWER
Montage of BELT WHEEL 2
BELT WHEEL 2
MOTOR LOADING
Press force of belt wheel 2
40 N - 150 N
Montage of RUBBER BELT DRIVE
GEAR PULLEY
BELT WHEEL 2
RUBBER BELT DRIVE
Note :
RUBBER not twisted
Montage of MOTOR
SECTION A-A
Cable must be
press down
Soldering point
must be lower as the pin hight
MOTOR LOADING
DRAWER
SCREW 1.7 x 3
DRIVER MOMENT
12 N/cm +/-2 N
(2x)
SOLDER PIN A
TOP-VIEW
SOLDER PIN B
For position MARKING :
here is round area by solder pin
Position for screwing
CABLE transfer
from motor to pcb sensor
