1616
CENTER
SPEAKER
SURROUND
SPEAKERS
R
L
R
L
R
BA
L
FRONT SPEAKERS
OUT
OUT
VIDEO 11 – VIDEO – 2
ININOUT IN
IN OUT
(REC)
IN
(PLAY)
IN
IN
IN
VIDEO 2
VIDEO
1
VIDEO
2
TAPE/MD TV/LINE
MON
OUT
MON
OUT
SUB
WOOFER
PRE OUT
L
R
S VIDEO
VIDEO
AUDIO AUDIO
REMOTE
CONTROL
FM 75
ANTENNA
AM
DIGITAL OUTPUT
VIDEO 1
(OPT)(OPT) (COAX)
VIDEO 2
DIGITAL INPUT
YP
B
P
R
COMPONENT VIDEO OUTPUT

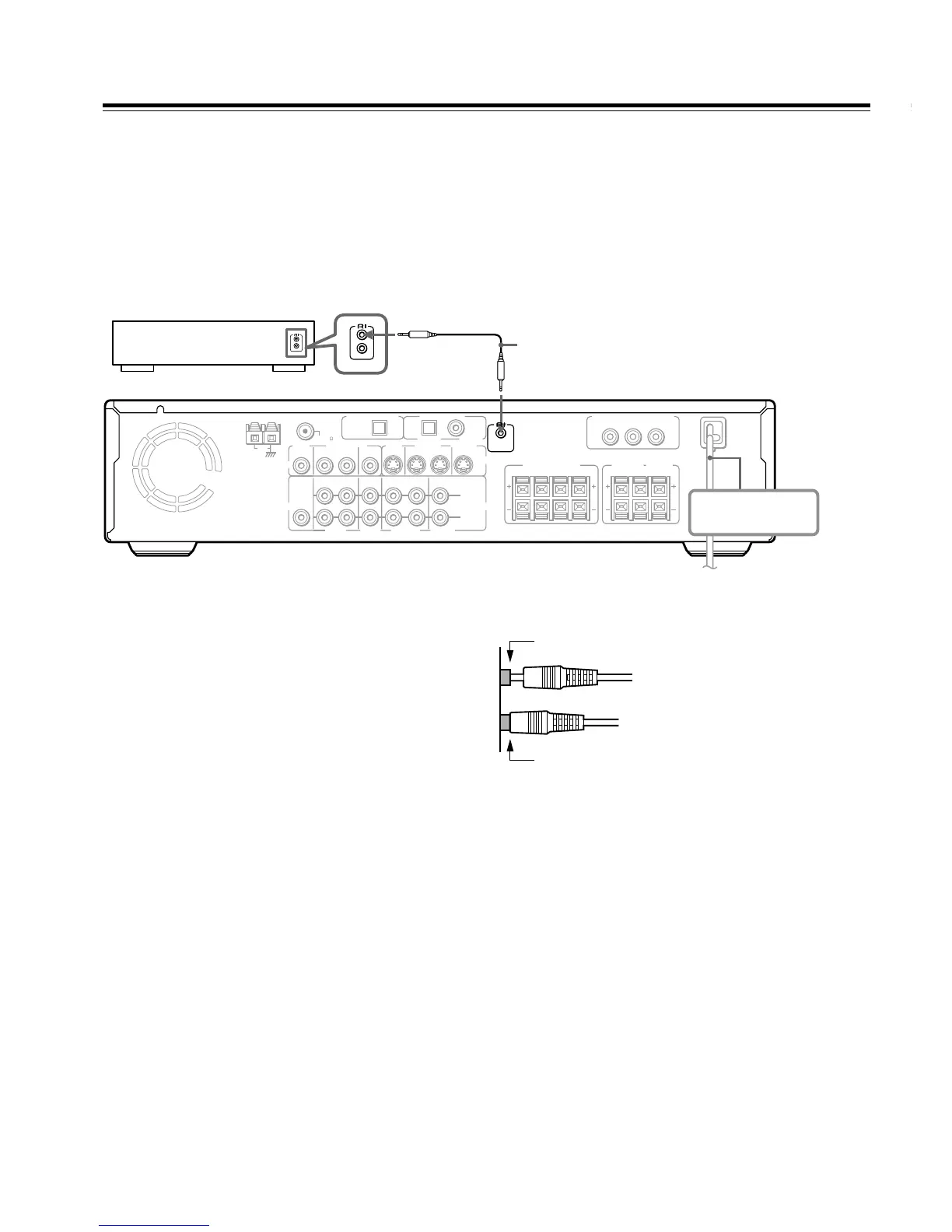

z Connection for the Onkyo Cassette Tape Deck
Onkyo cassette tape deck
Notes
• Connect the plugs securely.
• Be sure to connect to the z connectors using the z cable.
• The connections on page 11 are needed even if z connection is
made.
• Do not connect the DVD Receiver’s z connector to any component
other than an Onkyo product. It may cause malfunction.
Incomplete
Insert completely
DO NOT connect the
power cord (mains lead)
at this time.
The supplied remote controller has the following three extended functions in addition to operating the DVD Receiver:
• First, operating the TV (see page 31),
• Second, operating the Onkyo MD recorder (no z connection is needed) (see page 31), and
• Third, operating the z connected Onkyo cassette tape deck through the DVD Receiver (see page 31).
To use the third function, you need to make the z connection between the cassette tape deck and the DVD Receiver. The z
cable to make the z connection is supplied with the cassette tape deck.
If you start playing back the cassette tape deck after making the z connection, the DVD Receiver automatically changes its input
source to the cassette tape deck –– Direct Change function.
z cable
To Next Page
