68
MUTING
DOLBY PRO LOGIC STEREO
FMST
FM MUTE
CORNER
SP
TITLE CHP
TRACK TOTAL REMAIN
m
ch
dB
MEMORY
A
DOLBY DIGITAL
B DTS MPEG PCM VCDVD
A-B
REPEAT
TAPE/MD
FM
AM
VIDEO 1
VIDEO 2
TV/LINE

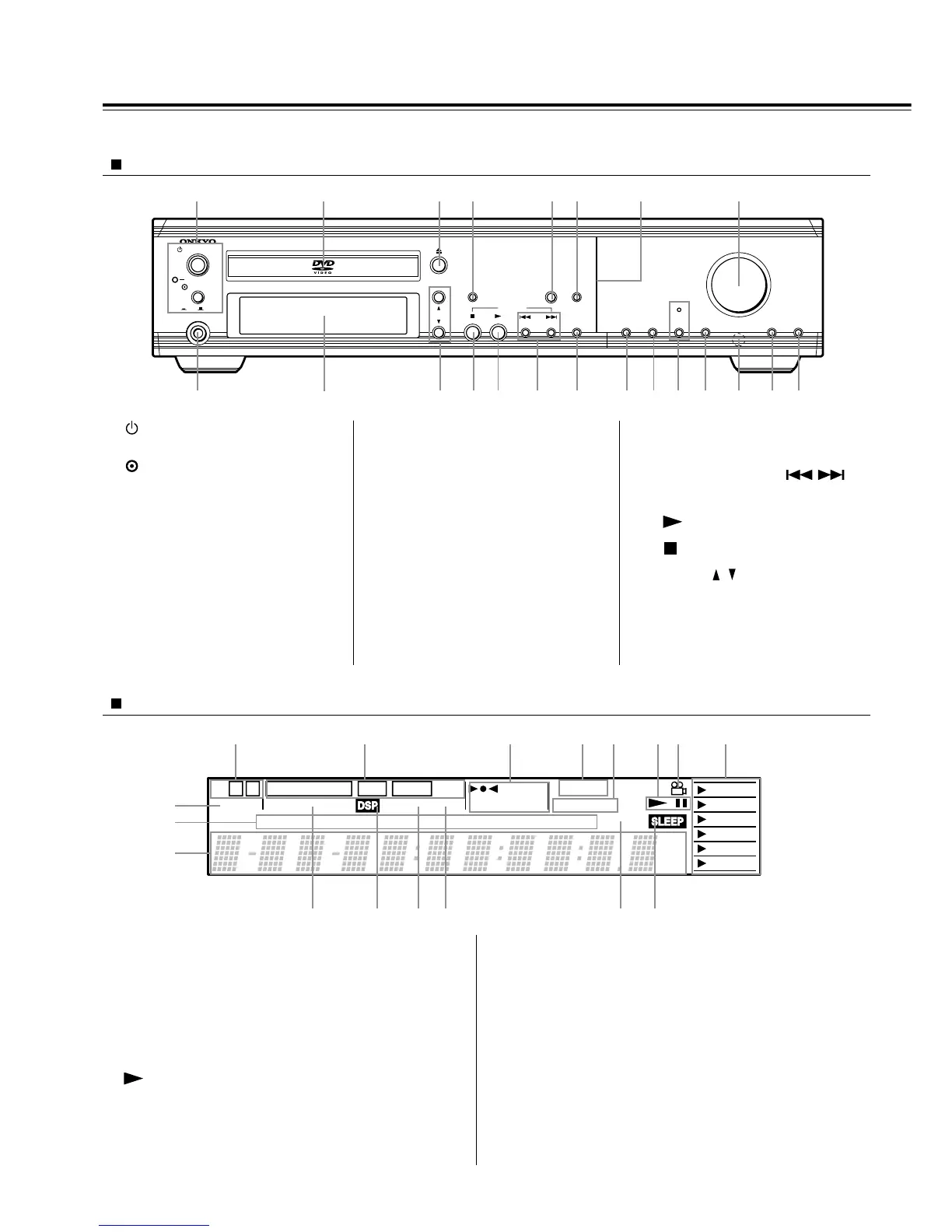

Index to Parts and Controls
For operational instructions, refer to the page indicated in brackets.
Front panel and its display
1 STANDBY/ON button,
STANDBY indicator,
POWER switch [17]
2 Disc tray [22]
3 r (open/close) button [22, 23]
4 DISPLAY button [50, 51]
5 ACOUSTIC CONTROL button/
indicator [40]
6 FM MODE button [28]
7 Light [17, 33]
8 MASTER VOLUME control [32]
9 SPEAKER SETUP button
[18, 19]
0 SPEAKER A/B button [18, 32]
A Remote control sensor [8]
B SUBWOOFER MODE button
[19]
C T-D button, indicator [37]
D STEREO button [38]
E SURROUND button [38]
1 SP A/B indicators [32]
2 Sound system indicators [22, 30, 35]
3 Tuned, FM MUTE, FM ST indicators [28]
4 Inserted disc indicator [22]
5 REPEAT/A-B REPEAT indicators [41]
6 (playing)/g (pausing) indicators
7 Camera angle indicator [45]
8 Input source indicators [28, 29, 30]
9 SLEEP indicator [33]
0 MEMORY indicator [42]
A CORNER indicator [36]
B STEREO indicator [38]
C DSP indicator [38]
D DOLBY PRO LOGIC indicator [38]
E Multipurpose display
F TITLE, CHP, TRACK, TOTAL, REMAIN indicators
[50, 51]
G MUTING indicator [32]
1 2 3 45678
90ABCD
E
F
G
Display
F PRESET MEMORY button
[28, 29]
G TUNING/PRESET /
buttons [25, 26, 27]
H (play) button [22]
I (stop) button [23]
J INPUT / buttons
[28, 29, 30]
K Display [17, 33, below]
L PHONES jack [33]
FM MODE
STANDBY/ON
STANDBY
POWER
PHONES
OFF
ON
TUNING/PRESET
SURROUND STEREO
T – D
DISPLAY
DVD / CD
PRESET
MEMORY
SUBWOOFER
MODE
SPEAKER
SETUP
SPEAKER
A / B
ACOUSTIC
CONTROL
INPUT
MASTER VOLUME
1 2 3 4 5 6 8
90BCDEFGHIJL A
K
7
