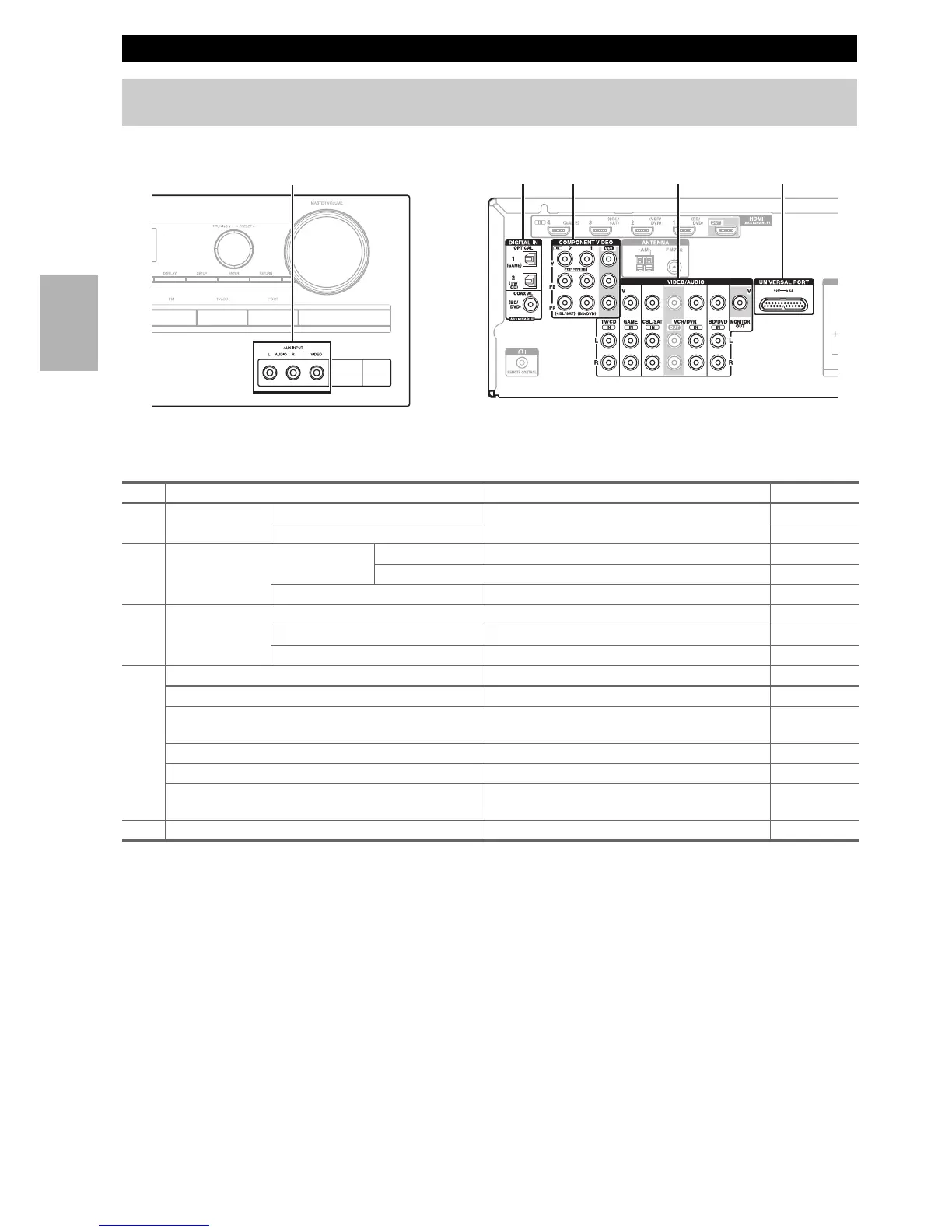

Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ page 28).
*1
Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn’t have it, you’ll need a commercially
available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer as
well as a phono preamp. See your turntable’s manual for details.
• With connection B, you can enjoy Dolby Digital and DTS.
• If your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo
output using connection
D.
■ How to record the video
See “Recording” to make a connection for video recording (➔ page 26).
Connecting Your Components
The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.
No. Jack Components Assignable
A
AUX INPUT VIDEO Camcorder, etc
AUDIO L/R
B
DIGITAL IN OPTICAL 1 (GAME) Game console ✔
2 (TV/CD) TV, CD player ✔
COAXIAL (BD/DVD) Blu-ray Disc/DVD player ✔
C
COMPONENT
VIDEO
IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock ✔
IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔
OUT TV, projector, etc.
D
MONITOR OUT TV, projector, etc.
BD/DVD IN Blu-ray Disc/DVD player
VCR/DVR IN VCR, DVD recorder/Digital Video Recorder,
RI dock
CBL/SAT IN Satellite/cable set-top box, etc.
GAME IN Game console, RI dock
TV/CD IN TV, CD player, cassette tape deck, MD, CD-R,
Turntable
*1
, RI dock
E
UNIVERSAL PORT Universal port option dock (UP-A1 etc.)
A
CBDE
