Onkyo HT-R391 User Manual

En-12
Connections
Connecting the AV
Receiver
Connecting the Speaker Cables

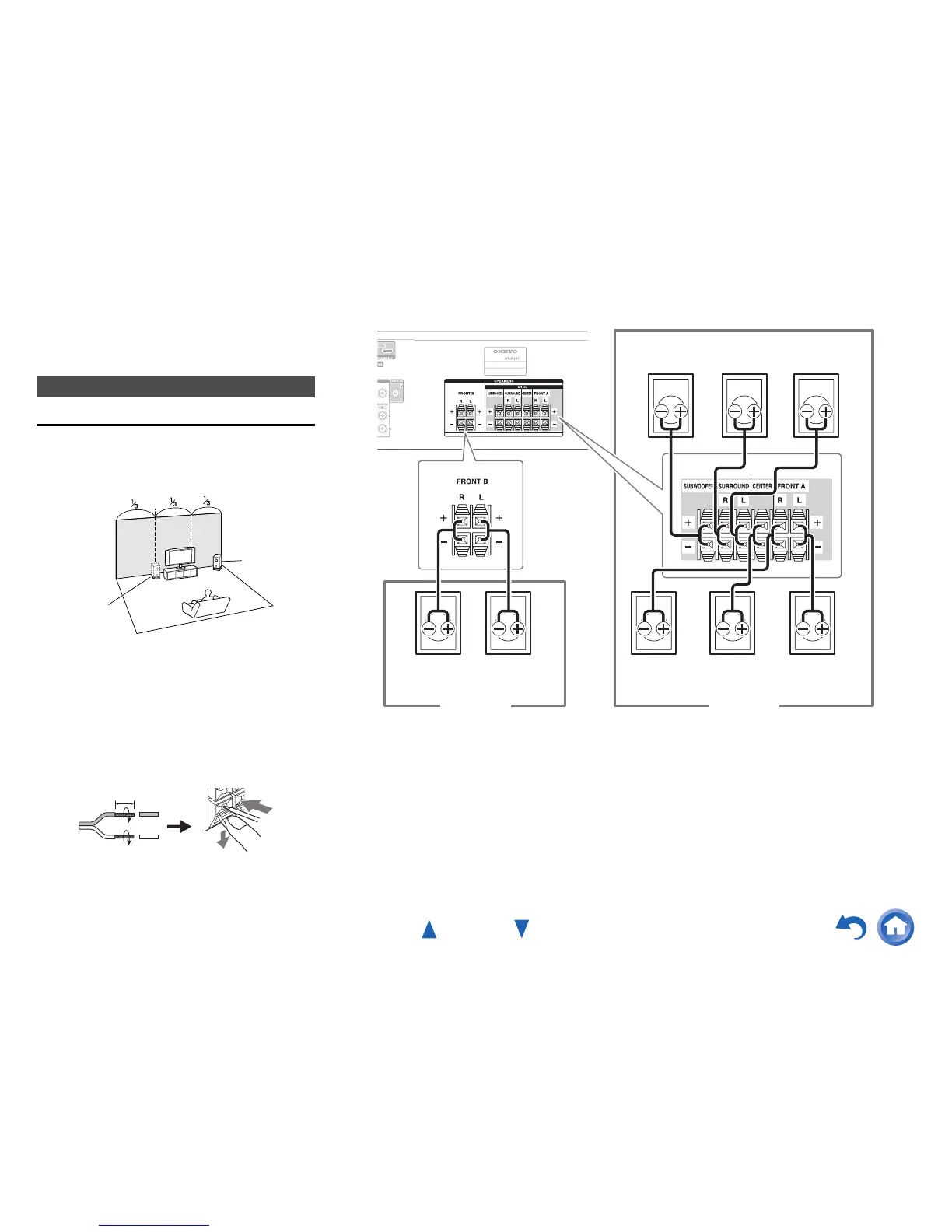

The following illustration shows how to connect the
speakers to each pair of terminals.
■ Using a Passive Subwoofer
To find the best position for your subwoofer, while playing
a movie or some music with good bass, experiment by
placing your subwoofer at various positions within the
room, and choose the one that provides the most satisfying
results.
■ Push-type speaker terminals
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends
of the speaker cables, and twist the bare wires tightly, as
shown (Supplied speaker cables are already stripped).
Connecting Your Speakers
Corner
position
1/3 of wall
position
3/8" to 1/2" (10 to 12 mm)
Surround
right
Surround
left
Front B right Front B left Front A leftFront A right Center
Speakers ASpeakers B
Passive
Subwoofer

Onkyo HT-R391 Specifications

General

Type	AV Receiver
Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
4K Passthrough	Yes
3D Support	Yes
Audio Return Channel (ARC)	Yes
Frequency Response	20 Hz - 50 kHz
Bluetooth	No
Video Upscaling	No
Power Output	100W per channel (6 ohms, 1 kHz, 1% THD)
Dolby Formats	Dolby TrueHD, Dolby Digital Plus
DTS Formats	DTS-HD Master Audio
Dimensions	435 x 150 x 318 mm
Inputs	HDMI, Optical, Coaxial, Analog Audio
Outputs	HDMI
Weight	16.5 lbs (7.5 kg)
