OPERATION CHECK-1
SPEAKER PROTECT-1 (DC VOLTAGE DETECTION)
HT-R508
Test - _
Test - 4-00
[When]
1. Exchange power transistors (Q6050 - Q6054, Q6060 - Q6064).
2. Exchange amplifier PC board ass'y (NAAF-8779).
<Note>
No load. No input.

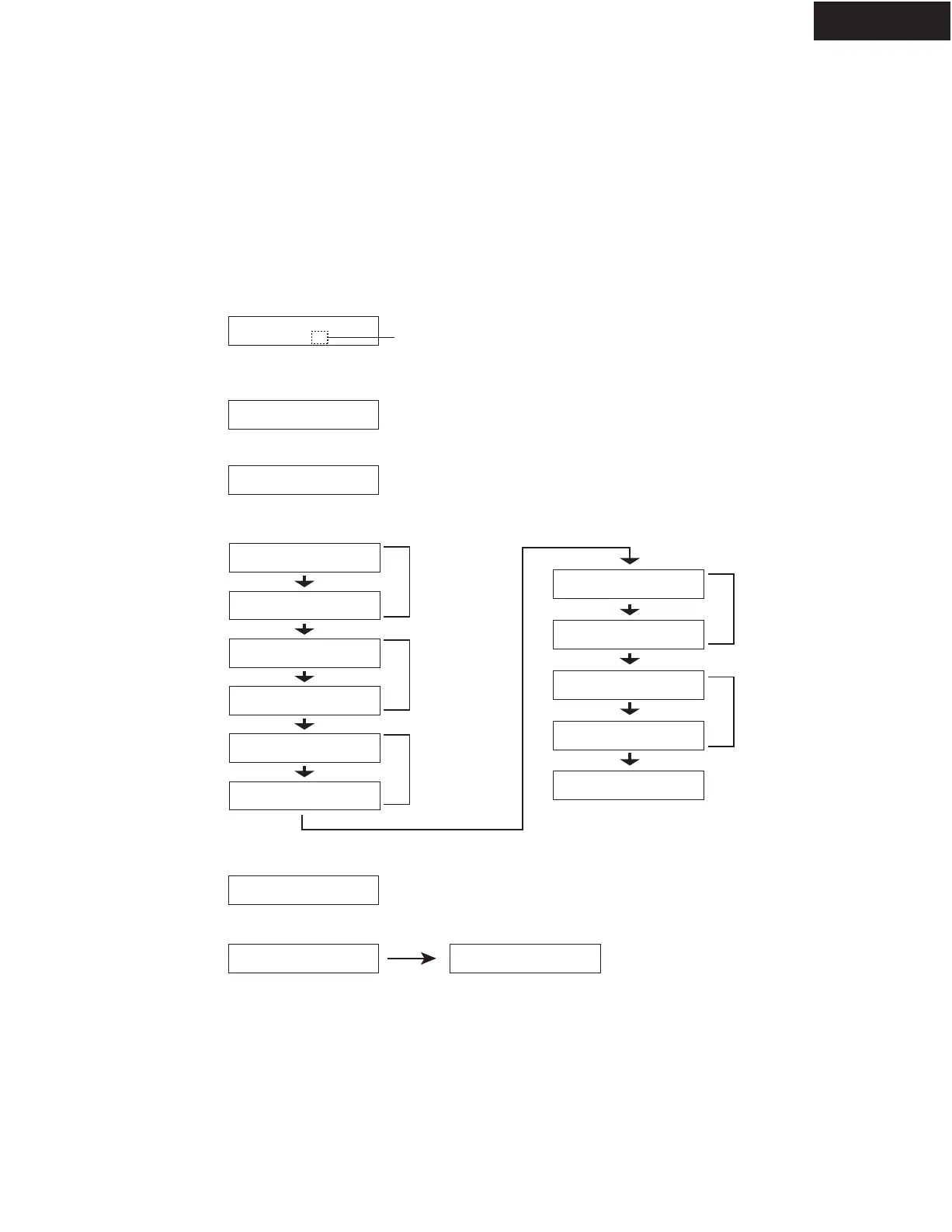

[Procedure]
1. Press and hold down CD button, then press STANDBY/ON button while the unit is powered on.
" Test - _ " is displayed only for 5 seconds.
2. Press AUX button while the characters of " Test - _ " are displayed.
The unit will be in the state of " Test-4-00 ".
3. Repeatedly press + (TONE) button until the characters of " Test-4-21 " are displayed.
Check whether the operation starts and continues automatically as follows.
If all channels are OK, the characters of " Test-4-35 " are displayed.
4. Press STANDBY/ON button.
Test - 4-21
Test - 4-21
Test - 4-22
Test - 4-25
Test - 4-23
Test - 4-24
Protect OK
Protect OK
Protect
Protect OK
Protect OK
Protect OK
Test - 4-35
Clear
Standby
Front L ch
Check
Front R ch
Check
Center ch
Check
Surround L ch
Check
Surround R ch
Check
Blinks
FL display
