Onkyo HT-R508 Service Manual

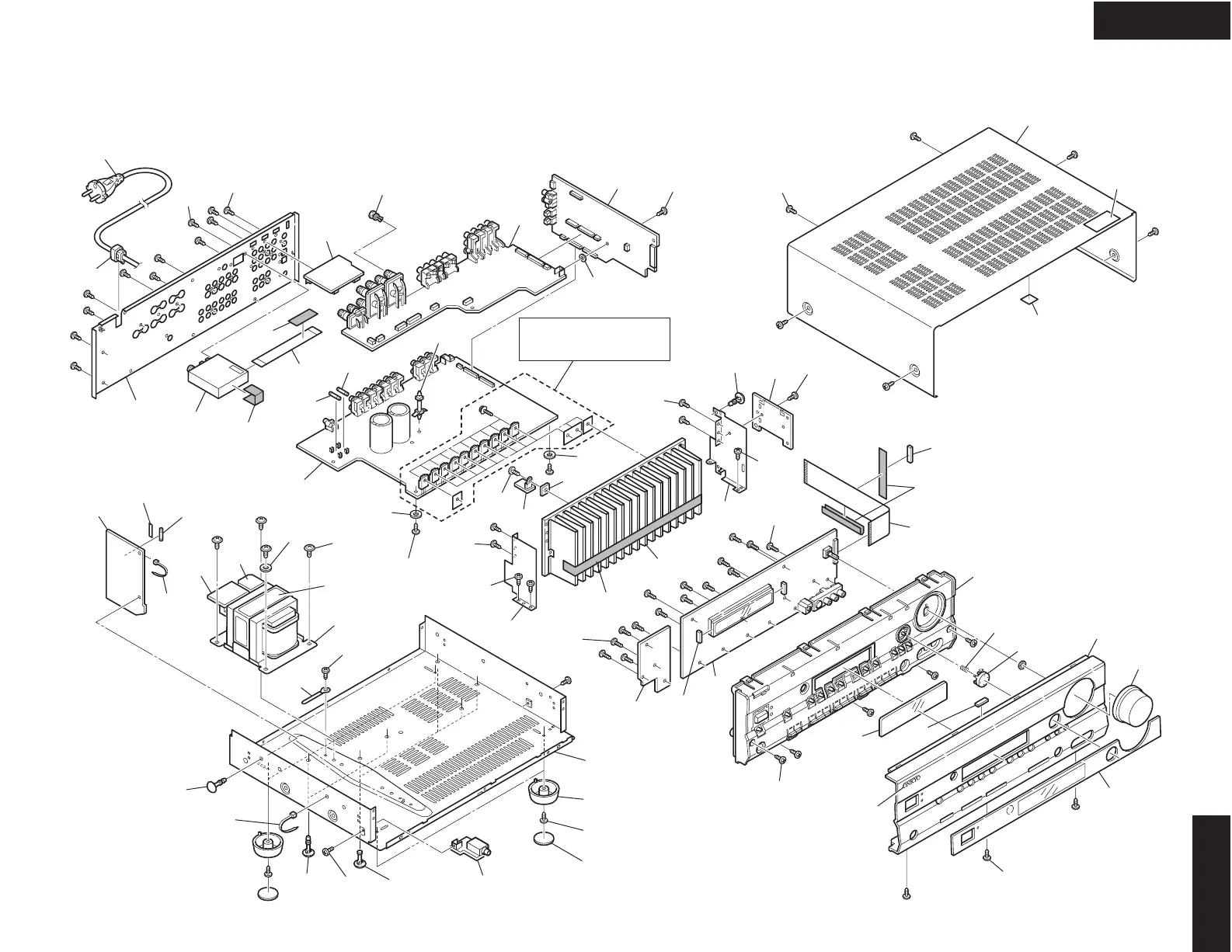

EXPLODED VIEWS-1
HT-R508
A002
x 5 pcs.
A061
x 6 pcs.
A012
x 2 pcs.
A017
x 2 pcs.
A021
x 4 pcs.
A065
x 4 pcs.
A068
x 4 pcs.
A066
x 4 pcs.
A020
x 2 pcs.
A096
x 3 pcs.
A089
x 3 pcs.
A030
x 4 pcs.
A013
x 7 pcs.
A044
x 2 pcs.
A043
x 2 pcs.
A001
A073
A016
A027
A018
F6901
F901
F901C
F6902
P101
P901
A093
A039
A046
A039
U01
U02
U07
U08
U04
U11
U12
U15
U14
U05
U06
U10
U09
U03
A037
A072
A044
A044
A022
A040
A050
A041
A042
A048
A039
A055
A056
A057
A083
A077
A003
A060
P701
A031
A033
A029
A028
T901
A102
A071
A043
x 2 pcs.
A011
x 6 pcs.
A039
A045
A045
P6601A
x 14 pcs.
A097
A046
x 2 pcs.
A075
A062
A069
Refer to
EXPLODED VIEWS-2
HT-R508

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
