Connecting Antenna—Continued
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available outdoor FM
antenna instead.
Notes:
• Outdoor FM antennas work best outside, but usable results can
sometimes be obtained when installed in an attic or loft.
•For best results, install the outdoor FM antenna well away for tall
buildings, preferably with a clear line of sight to your local FM
transmitter.
• Outdoor antenna should be located away from possible noise
sources, such as neon signs, busy roads, etc.
•For safety reasons, outdoor antenna should be situated well away
from power lines and other high-voltage equipment.
• Outdoor antenna must be grounded in accordance with local reg-
ulations to prevent electrical shock hazards. See item 14 of the
“Important Safeguards” on page 2 of this manual.
Using a TV/FM Antenna Splitter
It’s best not to use the same antenna for both FM and TV
reception, as this can cause interference problems. If circum-
stances demand it, use a TV/FM antenna splitter, as shown.
If good reception cannot be achieved using the supplied AM
loop antenna, an outdoor AM antenna can be used in addition
to the loop antenna, as shown.
Outdoor AM antennas work best when installed outside hor-
izontally, but good results can sometimes be obtained
indoors by mounting horizontally above a window. Note that
the AM loop antenna should be left connected.
Outdoor antenna must be grounded in accordance with local
regulations to prevent electrical shock hazards. See item 14
of the “Important Safeguards” on page 2 of this manual.

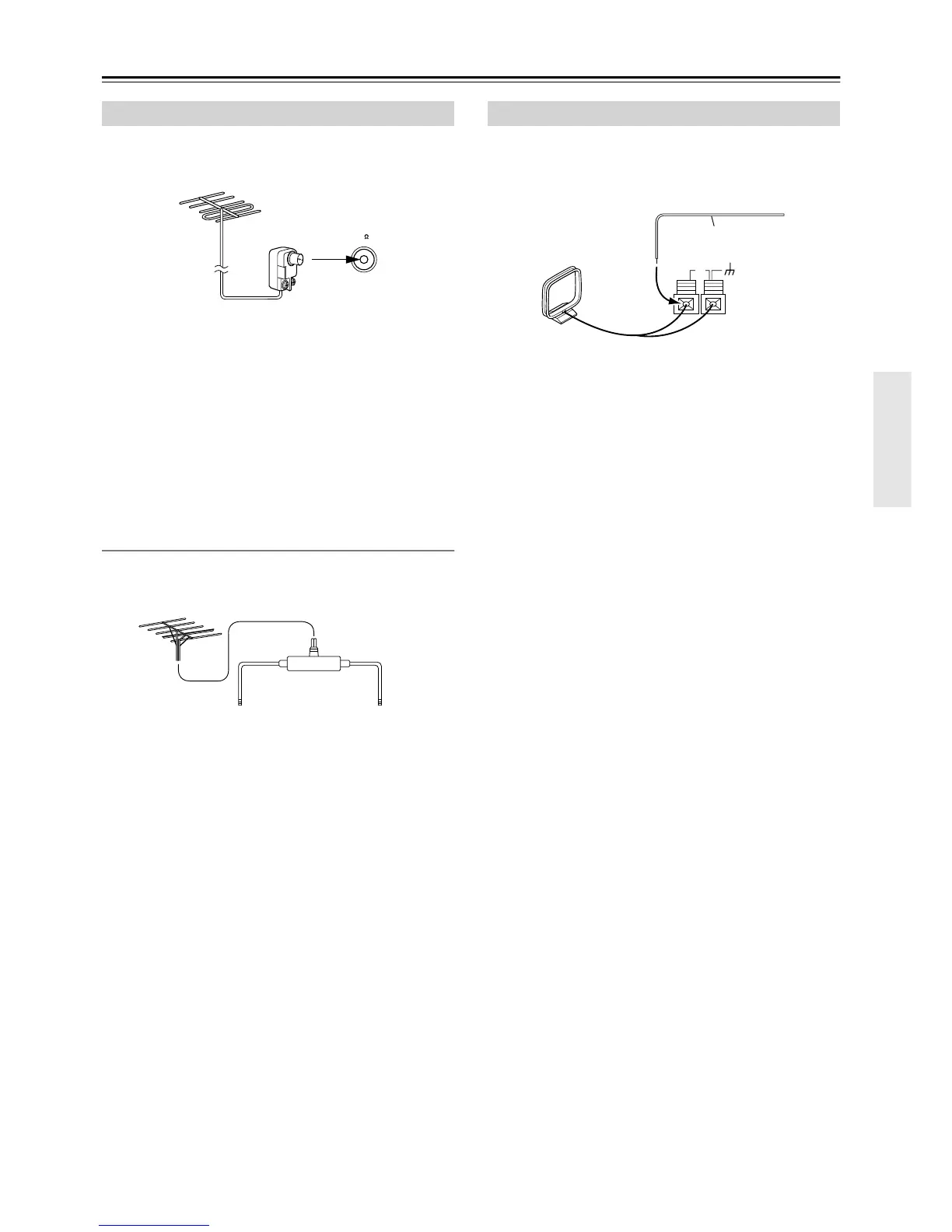

Connecting an Outdoor FM Antenna
FM
75
TV/FM antenna splitter
To AV reciever
To TV (or VCR)
Connecting an Outdoor AM Antenna
AM
AM loop antenna
Outdoor antenna (aerial)
Insulated antenna cable
To Next Page
