Hooking Up the Multichannel Input
If your DVD player supports multichannel audio formats such as DVD-Audio and SACD, and it has a multichannel
analog audio output, you can connect it to the AV receiver’s multichannel input.

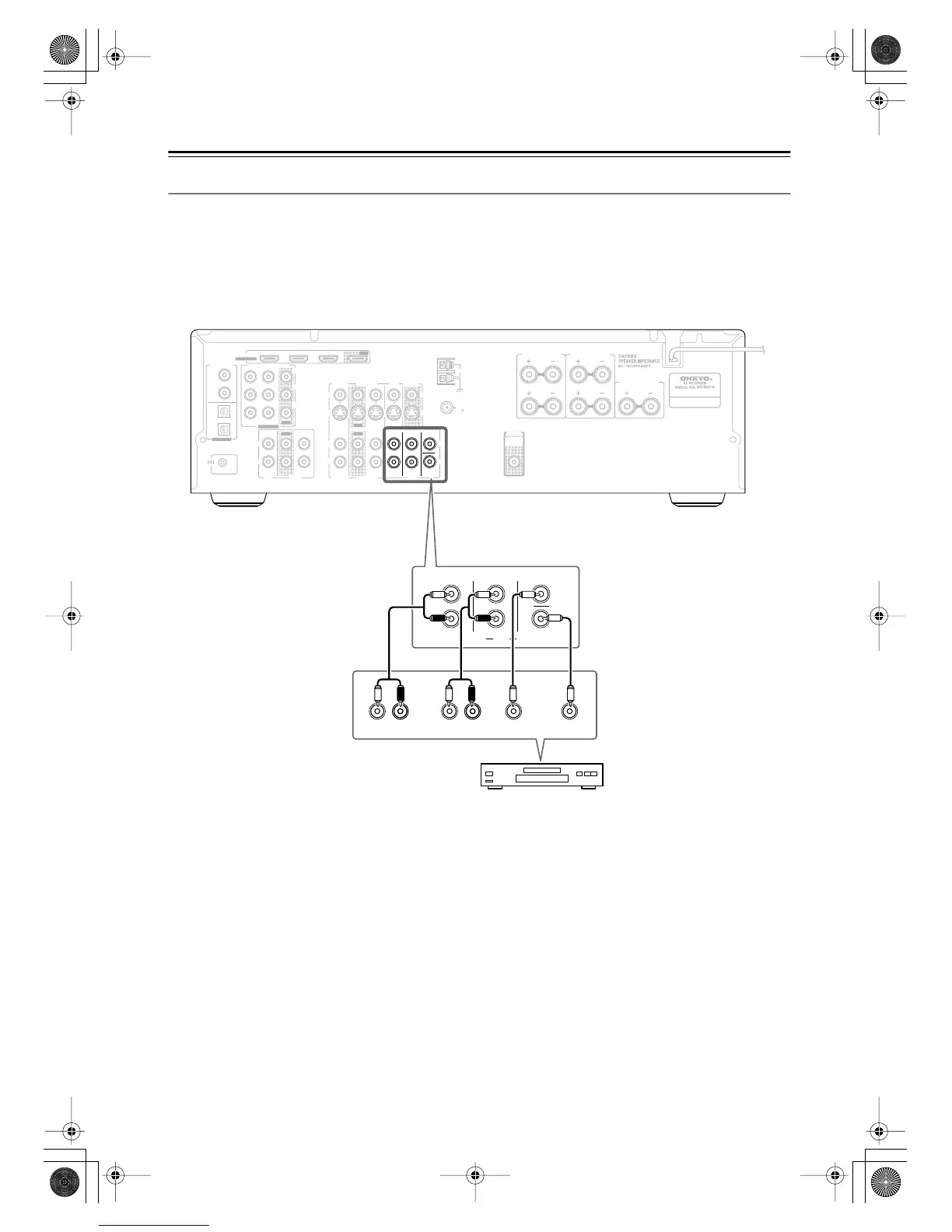

Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s DVD IN FRONT
L/R, CENTER, SURR L/R, and SUBWOOFER jacks to the 5.1-channel analog audio output on your DVD player.
To select the multichannel input, see “Basic AV Receiver Operation” on page 39. To adjust the subwoofer sensitivity for
the multichannel input, see “Using the Audio Adjust Settings” on page 55–56.
