Connecting Your Components —Continued

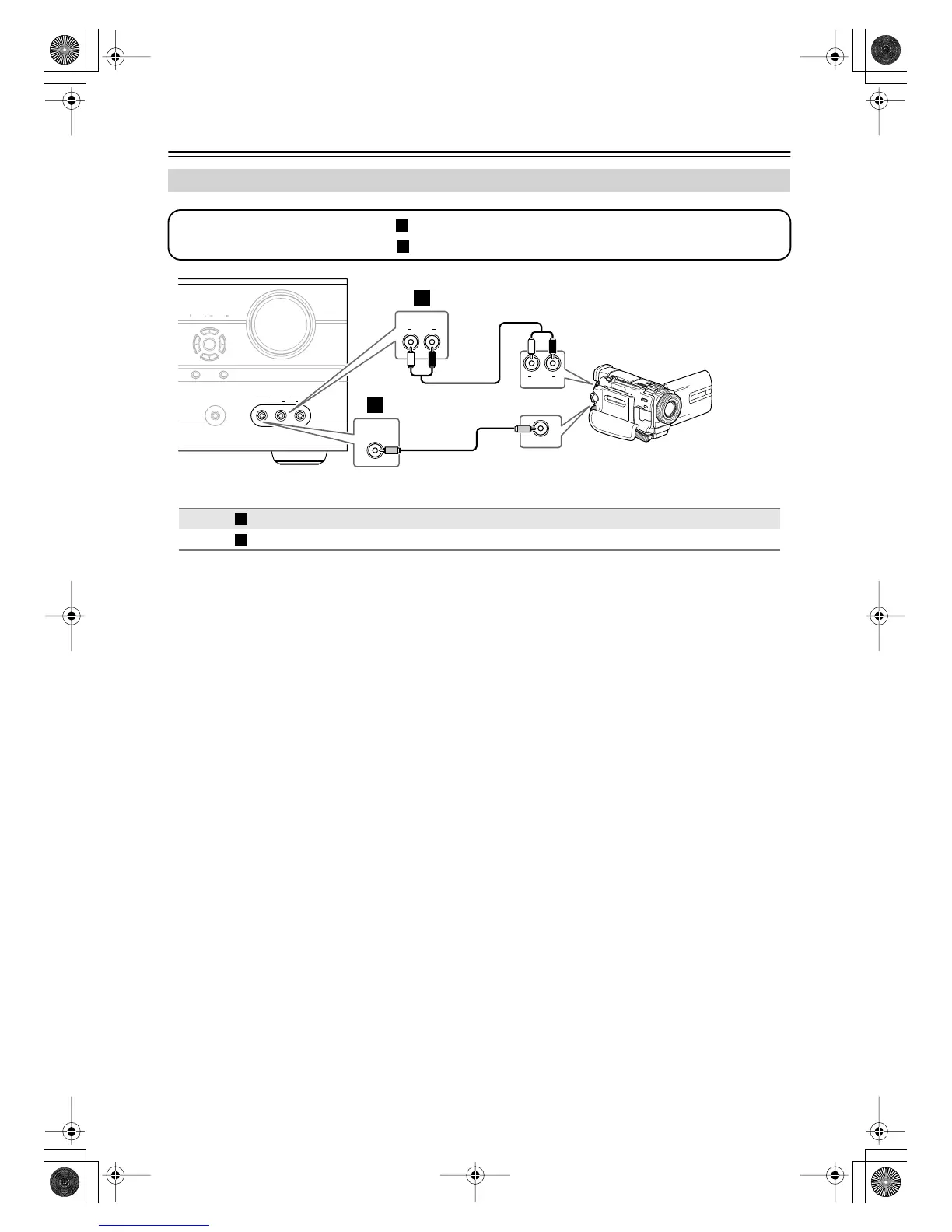

Connecting a Camcorder, Game Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
AUX INPUT VIDEO
⇐
Composite video output
AUX INPUT L-AUDIO-R
⇐
Analog audio L/R output
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
VIDEO OUT
AUDIO
AUX INPUT
LR
AUDIO
OUT
LR
AUX INPUT
VIDEO
a
A
Step 1: Make the video connection .
Step 2: Make the audio connection .
A
a
Camcorder, game console, etc.
A
a
